Manufacturer of SA182 F22 Cl3 Socket Weld Flange in ASME B16.5 Standard, Refer Sizes and Price list of Alloy Steel F22 Blind Flanges

ASTM A182 F22 Flanges

Flanges are efficient means of connecting valves, pipes, pumps and other piping equipment to transport fluids and gas across factories and refineries. ASTM A182 F22 Flanges are designed with a superior chemical composition of carbon, chromium, manganese, molybdenum, phosphorous, sulfur, and silicon. This content allows them to work in harsh conditions. The A182 F22 Forged Flange is processed at extreme pressures and showcases excellent surface porosity, and has a refined grain structure. These flange are available in different pressure capacities and sealing types. The SA 182 Gr F22 RTJ Flange is a metallic ring that has deep grooves on its face. These flange are easy to install and maintain for long periods. An F22 Alloy Steel Class 150 Flange is rated to work at 150 PSIG at approximately 600 degrees F.

The SA182 F22 Slip On Flange is commonly used by engineers as it is cheap and can be easily installed and welded with one or more fillet welds. ASTM A182 F22 Blind Flange helps in terminating the flow of media across treacherous conditions seen in oil and gas industries. These flange are generally bolted, allowing them to berepaired and maintained. The A182 F22 Spectacle Blinds has a spacer and a blind. The spacer allows for even flow of media, while the blinds help in cutting the flow. A SA 182 F22 Weld Neck Flange is a high-strength flange designed with a long hub or a face type. The hub provides stability to the subsequent pipe and is welded in place using a butt-weld. The ASTM A182 Gr F22 Long Weld Neck Flange is similar to a weld neck flange, but it possesses a larger neck that acts as a boring center. This allows it to be used in pressurized conditions. ASTM A182 F22 Socket Weld Flange is seen in small pipes for low pressures. These flange have a recessed socket wherein a pipe is attached and welded in place using a single fillet weld. The A182 Gr F22 Plate Flange is a versatile flat circular disc that can be easily bolted or welded following standard procedures

Exporter of SA 182 Gr F22 Slip on Flange and ASTM A182 F22 Socket Weld Flange supply with hydrostatic test pressure & MTR

Alloy Steel ASTM A182 F22 Flanges Specification

ASTM Specifications ASTM/ ASME A182/ SA182
Standard Flanges ASME, EN, ANSI, DIN, BS
Size inch From 1/2" to 36"
Dimensions BS 10, BS4504, ANSI/ASME B16.48, B16.5, DIN, B 16.47 Series A/ B, EN-1092
Type of Flange Face Raised Face, Ring Type Joint, Flate
Class / Pressure Rating 1500#, PN40, PN16, PN10, PN25, PN6, 300#, 600#, 2500#, 150#, 900#, PN64

ASTM A182 F22 Alloy Steel Pipe Flanges Price List

10-12% price difference if you buy directly from ASTM A182 F22 WNRF Flanges manufacturers

Description Price Per Kg In Singapore Price Per Kg In UAE Price Per Kg In USD Price Per Kg In Malaysia
12 X 300# X SCH STD ALLOY STEEL WNRF FLANGE TO ASTM A182 F22, DIMN B16.5. SGD 856.44 UAE Dirham 2,236.26 US $618.54 MYR 2,712.06
3-300 RF SCH 40 ALLOY STEEL FLANGE, WELD NECK SA182 F22 CLASS 3 SGD 81.00 UAE Dirham 211.50 US $58.50 MYR 256.50
8 X 300# X SCH 40 ALLOY STEEL WNRF FLANGE TO ASTM A182 F22, DIMN B16.5. SGD 310.79 UAE Dirham 811.50 US $224.46 MYR 984.16
1 1/2-600 RF SCH 80 ALLOY STEEL FLANGE WELD NECK ASME SA182 F22 CLASS 3 SGD 68.29 UAE Dirham 178.32 US $49.32 MYR 216.26
1.9 & 2.38 OD ALLOY STEEL FLANGE BODY ASME SA182 F22 CLASS 3 SGD 1,099.12 UAE Dirham 2,869.91 US $793.81 MYR 3,480.53
2-2500 RF SCH XXS ALLOY STEEL FLANGE WELD NECK ASTM A182M F22 CLASS 3 SGD 186.68 UAE Dirham 487.44 US $134.82 MYR 591.15
11/2-900 RF SCH 80 ALLOY STEEL FLANGE WELD NECK ASTM A182M F22 CLASS 3 SGD 107.01 UAE Dirham 279.42 US $77.29 MYR 338.87

ASME SA182M Alloy Steel F22 Flange Types

Alloy Steel ASTM A182 F22 Orifice Flanges

Alloy Steel ASTM A182 F22 Orifice Flanges

ASTM A182 F22 Alloy Steel Square Flanges

ASTM A182 F22 Alloy Steel Square Flanges

ASTM A182 F22 Forged Flanges

ASTM A182 F22 Forged Flanges

ASME SA182M Alloy Steel F22 Threaded / Screwed Flanges

ASME SA182M Alloy Steel F22 Threaded / Screwed Flanges

ANSI B16.5 Alloy F22 Spade Flange

ANSI B16.5 Alloy F22 Spade Flange

A182 F22 Chrome Moly Reducing Flanges

A182 F22 Chrome Moly Reducing Flanges

F22 Alloy Steel Blind Flanges (BLRF)

F22 Alloy Steel Blind Flanges (BLRF)

ASME SA 182 F22 High Hub Blind Flanges

ASME SA 182 F22 High Hub Blind Flanges

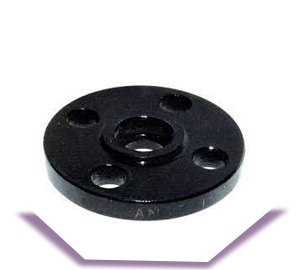

SA 182 Gr F22 Socket Weld Flanges (SWRF)

SA 182 Gr F22 Socket Weld Flanges (SWRF)

ASTM A182 Grade F22 Alloy Steel Tongue & Groove Flanges

ASTM A182 Grade F22 Alloy Steel Tongue & Groove Flanges

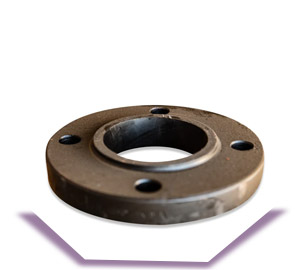

SA 182 Gr F22 SORF Slip On Flanges (SORF)

SA 182 Gr F22 SORF Slip On Flanges (SORF)

A182 F22 Alloy Steel Spectacle Blind Flanges

A182 F22 Alloy Steel Spectacle Blind Flanges

F22 A182 Long Weld Neck Flanges

F22 A182 Long Weld Neck Flanges

A182 F22 Cl2 Bleed Ring Flange

A182 F22 Cl2 Bleed Ring Flange

A182 F22 Class 2 Weldo Flange

A182 F22 Class 2 Weldo Flange

ASTM A182 Gr F22 Weld Neck Flanges (WNRF)

ASTM A182 Gr F22 Weld Neck Flanges (WNRF)

ASTM A182 Grade F22 Raised Face Flanges

ASTM A182 Grade F22 Raised Face Flanges

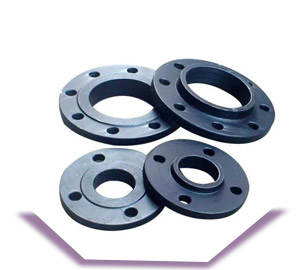

A182 Gr F22 Plate Flanges

A182 Gr F22 Plate Flanges

A182 Grade F22 Ring Type Joint Flanges (RTJ)

A182 Grade F22 Ring Type Joint Flanges (RTJ)

ASME SA 182 Gr F22 Ring Spacer

ASME SA 182 Gr F22 Ring Spacer

SA182 F22 Cl1 Puddle Flanges

SA182 F22 Cl1 Puddle Flanges

SA182 F22 Male & Female Flanges

SA182 F22 Male & Female Flanges

A182 F22 Cl.2 Lap Joint Flanges

A182 F22 Cl.2 Lap Joint Flanges

ASTM A182 F22 Cl.2 Nipo Flange

ASTM A182 F22 Cl.2 Nipo Flange

ASTM A182 F22 Flange Wall Thickness

Why to buy from stockist? Buy directly through Alloy Steel F22 RTJ Flange manufacturers and save cost

S 120 Outer Diam. S 20 Sizes of Normal Pipe S 10 S 30 S 40 STD Wall XX Hvy S 100 S 60 S 140 EXT Hvy S 80 S 160
0.84 ½ inch 0.083 0.109 0.109 0.294 0.147 0.147 0.188
1.05 ¾ inch 0.083 0.113 0.113 0.308 0.154 0.154 0.219
1.315 1 inch 0.109 0.133 0.133 0.358 0.179 0.179 0.25
1.66 1 ¼ inch 0.109 0.14 0.14 0.382 0.191 0.191 0.25
1.9 1 ½ inch 0.109 0.145 0.145 0.4 0.2 0.2 0.281
2.375 2 inch 0.109 0.154 0.154 0.436 0.218 0.218 0.344
2.875 2 ½ inch 0.12 0.203 0.203 0.552 0.276 0.276 0.375
3.5 3 inch 0.12 0.216 0.216 0.6 0.3 0.3 0.438
4 3 ½ inch 0.12 0.226 0.226 0.636 0.318 0.318
0.438 4.5 4 inch 0.12 0.237 0.237 0.674 0.337 0.337 0.531
0.5 5.563 5 inch 0.134 0.258 0.258 0.75 0.375 0.375 0.625
0.562 6.625 6 inch 0.134 0.28 0.28 0.864 0.432 0.432 0.719
0.719 8.625 0.25 8 inch 0.148 0.277 0.322 0.322 0.875 0.594 0.406 0.812 0.5 0.5 0.906
0.844 10.75 0.25 10 inch 0.165 0.307 0.365 0.365 1 0.719 0.5 1 0.5 0.594 1.125
1 12.75 0.25 12 inch 0.18 0.33 0.406 0.375 1 0.844 0.562 1.125 0.5 0.688 1.312
1.094 14 0.312 14 inch 0.25 0.375 0.438 0.375 0.938 0.594 1.25 0.5 0.75 1.406
1.219 16 0.312 16 inch 0.25 0.375 0.5 0.375 1.031 0.656 1.438 0.5 0.844 1.594
1.375 18 0.312 18 inch 0.25 0.438 0.562 0.375 1.156 0.75 1.562 0.5 0.938 1.781
1.5 20 0.375 20 inch 0.25 0.5 0.594 0.375 1.281 0.812 1.75 0.5 1.031 1.969
22 22 inch 0.25 0.375 0.5
1.812 24 0.375 24 inch 0.25 0.562 0.688 0.375 1.531 0.969 2.062 0.5 1.219 2.344
26 26 inch 0.375 0.5
30 0.5 30 inch 0.312 0.625 0.375 0.5
36 0.5 36 inch 0.312 0.625 0.75 0.375 0.5
40 40 inch 0.375 0.5
42 42 inch 0.375 0.5
48 48 inch 0.375 0.5

ASME SA 182 F22 Plate Flange Dimensions

Plate FLanges
PN DN B A C
mm mm mm
10&16 10 14 90 .0
10&16 15 14 95 22.0
10&16 20 16 105 27.5
10&16 25 16 115 34.5
10&16 32 140 43.5
10&16 40 150 49.5
10&16 50 20 165 61.5
10&16 65 20 5 77.5
10&16 80 20 200 90.5
10&16 100 22 220 116.0
10&16 125 22 250 141.5
10&16 150 24 285 170.5
10&16 200 24 340 221.5
10 250 26 395 276.5
16 29 405

Supplier of A182 Gr F22 Plate Flange and F22 Alloy Steel Reducing Flange in PN6, PN10, PN40 pressure rating, call now for a free sample!

SA 182 Gr F22 Slip On Flanges Weight Charts

Slip On FLanges

Class 150 LB

Pipe Flange Data Face Weight Hub Drilling Data
OutsideDiameter Nominal Pipe A C B D G H F I J
Overall Diameter Flange Thickness min Inside Diameter Overall Length Face Diameter Number of Holes Hub Diameter Bolt Hole Diameter Diameter
of Circle of Holes
in
mm
Size in
mm
in
mm
in
mm
in
mm
in
mm
kg/ piece in
mm
in
mm
in
mm
0.840 2 3.500 0.440 0.880 0.620 1.380 0.39 4 1.190 0.620 2.380
21.30 88.90 11.20 22.40 15.70 35.10 30.20 15.70 60.45
1.050 w 3.880 0.500 1.090 0.620 1.690 0.56 4 1.500 0.620 2.750
26.70 98.60 12.70 27.70 15.70 42.90 38.10 15.70 69.85
1.315 1 4.250 0.560 1.360 0.690 2.000 0.78 4 1.940 0.620 3.120
33.40 108.0 14.20 34.50 17.50 50.80 49.30 15.70 79.25
1.660 14 4.620 0.620 1.700 0.810 2.500 1.03 4 2.310 0.620 3.500
42.20 117.3 15.70 43.20 20.60 63.50 58.70 15.70 88.90
1.900 12 5.000 0.690 1.950 0.880 2.880 1.32 4 2.560 0.620 3.880
48.30 127.0 17.50 49.50 22.40 73.15 65.00 15.70 98.60
2.375 2 6.000 0.750 2.440 1.000 3.620 2.06 4 3.060 0.750 4.750
60.30 152.4 19.10 62.00 25.40 91.90 77.70 19.10 120.7
2.875 22 7.000 0.880 2.940 1.120 4.120 3.28 4 3.560 0.750 5.500
73.00 177.8 22.40 74.70 28.40 104.6 90.40 19.10 139.7
3.500 3 7.500 0.940 3.570 1.190 5.000 3.85 4 4.250 0.750 6.000
88.90 190.5 23.90 90.70 30.20 127.0 108.0 19.10 152.4
4.000 32 8.500 0.940 4.070 1.250 5.500 4.81 8 4.810 0.750 7.000
101.6 215.9 23.90 103.4 31.75 139.7 122.2 19.10 177.8
4.500 4 9.000 0.940 4.570 1.310 6.190 5.30 8 5.310 0.750 7.500
114.3 228.6 23.90 116.1 33.30 157.2 134.9 19.10 190.5
5.563 5 10.00 0.940 5.660 1.440 7.310 6.07 8 6.440 0.880 8.500
141.3 254.0 23.90 143.8 36.60 5.7 163.6 22.40 215.9
6.625 11.00 1.000 6.720 1.560 8.500 7.560 0.880 9.500
6 7.45 8
168.3 279.4 25.40 170.7 39.60 215.9 192.0 22.40 241.3
8.625 8 13.50 1.120 8.720 1.750 10.62 12.1 8 9.690 0.880 11.75
219.1 342.9 28.40 221.5 44.50 269.7 246.1 22.40 298.5
10.75 10 16.00 1.190 10.88 1.940 12.75 16.5 12 12.00 1.000 14.25
273.0 406.4 30.20 276.3 49.30 323.9 304.8 25.40 362.0
12.75 12 19.00 1.250 12.88 2.190 15.00 26.2 12 14.38 1.000 17.00
323.8 482.6 31.75 327.1 55.60 381.0 365.3 25.40 431.8
14.00 14 21.00 1.380 14.14 2.250 16.25 34.6 12 15.75 1.120 .75
355.6 533.4 35.10 359.1 57.15 412.8 400.1 28.40 476.3
16.00 16 23.50 1.440 16.16 2.500 .50 44.8 16 .00 1.120 21.25
406.4 596.9 36.60 410.5 63.50 469.9 457.2 28.40 539.8
12.00 18 25.00 1.560 41.24 2.690 21.00 48.9 16 19.88 1.250 22.75
457.2 635.0 39.60 461.8 68.30 533.4 505.0 31.75 577.9
20.00 20 27.50 1.690 20.20 2.880 23.00 61.9 20 22.00 1.250 25.00
508.0 698.5 42.90 513.1 73.15 584.2 558.8 31.75 635.0
24.00 24 32.00 1.880 24.25 3.250 27.25 86.9 20 26.12 1.380 29.50
609.6 812.8 47.80 616.0 82.60 692.2 663.4 35.10 749.3

Alloy Steel F22 Flanges Chemical Composition

Alloy Steel F22 Industrial Flanges manufacturer in India, we use only high quality & tested material to produce A182 F22 Weld Neck Flange

Si Cr S C P Mn Mo
0.5 0.8 - 1.25 0.03 0.05 - 0.15 0.045 0.3 - 0.6 0.044 - 0.65

A182 F22 Chrome Moly Flange Mechanical Properties

(Mpa) Tensile Properties Elongation % (Mpa) Yield Properties
205 20 415

ASME SA 182 F22 Flange Equivalent

Forging Specification Name Type Of Material UNS Number DIN
10CRM0910 A217-WC9 A182-F22 cl3 2.1/4Cr-1Mo K21590 1.7380
Why pay extra? Buying from A182 F22 Class 1 Orifice Flanges manufacturers saves your cost, wide selection of ASTM A182 Grade F22 Spectacle Blind Flanges in India

SA 182 Gr F22 Flange Pressure Ratings

We are a specialist supplier & distributor of A182 F22 Blind Flanges and A182 F22 Slip On Flanges

Temperature °F 900# 300# 1500# 400# 150# 2500# 600#
-20 to 100 2160 720 3600 960 275 6000 1440
200 00 600 3000 800 230 5000 1200
300 1620 540 2700 720 205 4500 1080
400 1490 495 2485 660 190 4140 995
500 1395 465 2330 620 170 3880 930
600 1310 435 25 580 140 3640 875
650 1290 430 2150 575 125 3580 860
700 1275 425 2125 565 110 3540 850
750 1245 415 2075 555 95 3460 830
800 1210 405 2015 540 80 3360 805
850 1190 395 1980 530 65 3300 790
900 1165 390 1945 520 50 3240 780
950 1145 380 1910 510 35 30 765
1000 965 320 1605 430 20 2675 640
1050 925 310 1545 410 20 2570 615
1100 770 255 1285 345 20 2145 515
1150 595 200 995 265 20 1655 400
1200 465 155 770 205 20 1285 310
1250 340 115 565 150 20 945 225
1300 255 85 430 115 20 715 170
1350 5 60 310 80 20 515 125
1400 145 50 240 65 20 400 95
1450 105 35 170 45 15 285 70
1500 80 25 135 35 10 230 55

ASTM A182 Grade F22 Alloy Steel Flanges Applications

  • Gas Processing

  • Power Generation

  • Off-Shore Oil Drilling Companies

  • Condensers

  • Pharmaceuticals

  • Chemical Equipment

  • Pulp and Paper Industry

  • Sea Water Equipment

  • Pharmaceutical Equipment

  • Petrochemicals

  • Specialty Chemicals

  • Heat Exchangers

We Keep Ready Stock of A182 F22 Forged Flange. View ASME SA 182 Gr F22 RTJ Flange Pressure Rating and Weight Chart

Alloy Steel F22 Blind Flanges Size Chart

Why don't you directly contact a ANSI B16.5 Alloy F22 Orifice Flanges manufacturer in Mumbai? A PED approved F22 Alloy Steel Lapped joint Flanges and SA 182 Gr F22 SORF Flanges supplier in India

Blind FLanges
Raised Face
Thickness (T)
Outside
Diameter
No. of
Bolt Holes
Bolt Circle (BC) FLANGE
NPS
Raised Face (R) Flat Face
Thickness (T2)
Raised Face (RF) Bolt Hole (B)
.44″ 3.50″ 4 2.38″ 1/2″ 1.38″ .38″ .063″ .62″
.50″ 3.88″ 4 2.75″ 3/4″ 1.69″ .44″ .063″ .62″
.56″ 4.25″ 4 3.12″ 1″ 2.00″ .50″ .063″ .62″
.62″ 4.62″ 4 3.50″ 1-1/4″ 2.50″ .56″ .063″ .62″
.68″ 5.00″ 4 3.88″ 1-1/2″ 2.88″ .62″ .063″ .62″
.75″ 6.00″ 4 4.75″ 2″ 3.62″ .69″ .063″ .75″
.88″ 7.00″ 4 5.50″ 2-1/2″ 4.12″ .82″ .063″ .75″
.94″ 7.50″ 4 6.00″ 3″ 5.00″ .88″ .063″ .75″
.94″ 8.50″ 8 7.00″ 3-1/2″ 5.50″ .88″ .063″ .75″
.94″ 9.00″ 8 7.50″ 4″ 6.19″ .88″ .063″ .75″
.94″ 10.00″ 8 8.50″ 5″ 7.31″ .88″ .063″ .88″
1.00″ 11.00″ 8 9.50″ 6″ 8.50″ .94″ .063″ .88″
1.12″ 13.50″ 8 11.75″ 8″ 10.62″ 1.06″ .063″ .88″
1.19″ 16.00″ 12 14.25″ 10″ 12.75″ 1.13″ .063″ 1.00″
1.25″ 19.00″ 12 17.00″ 12″ 15.00″ 1.19″ .063″ 1.00″
1.38″ 21.00″ 12 18.75″ 14″ 16.25″ 1.32″ .063″ 1.12″
1.44″ 23.50″ 16 21.25″ 16″ 18.50″ 1.38″ .063″ 1.12″
1.56″ 25.00″ 16 22.75″ 18″ 21.00″ 1.50″ .063″ 1.25″
1.69″ 27.50″ 20 25.00″ 20″ 23.00″ 1.63″ .063″ 1.25″
1.81″ 29.50″ 20 27.25″ 22″ 25.25″ 1.75″ .063″ 1.38″
1.88″ 32.00″ 20 29.50″ 24″ 27.25″ 1.82″ .063″ 1.38″

Check our material dispatch in the following countries

Doha South Sewage Treatment Works-Qatar

Doha South Sewage Treatment Works-Qatar

Tanzania LNG Liquefaction Plant-South Africa

Tanzania LNG Liquefaction Plant-South Africa

Markmore Energy (Labuan) Ltd-Malaysia

Markmore Energy (Labuan) Ltd-Malaysia

Petrovietnam Vietnam

Petrovietnam Vietnam

Brunei Darussalam-Thailand

Brunei Darussalam-Thailand

ADCO - Onshore Gas Gathering & Injection For OGD3-Dubai

ADCO - Onshore Gas Gathering & Injection For OGD3-Dubai
