ASTM A234 WP22 Fittings

Fittings are devices that are utilized in connecting different types of pipe grades to influence the characteristics of the flow across harsh conditions. The ASTM A234 WP22 Fittings have excellent chemical properties, giving them good strength and enhanced corrosion resistance features. These fittings are easy to handle and possess higher elasticity. The A234 WP22 Material possesses superior mechanical properties. The material has a tensile strength between 415 to 585mpa with a minimum yield strength of 205mpa and can be easily elongated by 20% in the system.

The A234 WP22 Elbow is primarily designed to change the direction of the flow in the system. These elbows ensure a smooth flow of media and are produced in short or long radius specifications. SA 234 WP22 Long Radius Elbow has a radius of curvature which is 1.5 times its outer diameter. These elbows ensure that there is less resistance to friction when compared to short radius elbows. The ASTM A234 Gr WP22 Pipe Bend is similar to an elbow, but it possesses a larger radius of curvature compared to an elbow. These bends help in reducing the pressure drops across complex systems. An ASTM A234 WP22 Tee has three channels that allow them to be shaped in the form of a T. These tees have 2 outlets at 90 degrees with one main line. The A234 Gr WP22 Reducer is used to join piping grades of dissimilar sizes. The robust reducers gradually decrease the diameter of the pipe and can be availed in the concentric and eccentric specifications. A WP22 Buttweld Cap is a high-strength fitting that is utilized in high-pressure and temperature setups. The caps provide protection against damage caused during transportation and storage due to different affluents.

Leading Exporter of A234 WP22 Cl2 Semaless Fittings, We Supply ASTM A234 Gr WP22 End Cap with MTC and NDT Test Certificates

Alloy Steel ASTM A234 WP22 Buttweld Fittings Specification

Specification ASTM A234 / ASME SA234
Type Fabricated/ Welded/ Seamless
Size ½”NB to 48″NB in Schedule 10s to XXS.
Bending Radius R=5D, 10D, 3D, 1D, 8D, 2D, 6D
Dimensions ANSI/ASME B16.28, B16.9, MSS-SP-43
Types of Fittings Stubend, Elbows, Equal Tee, Reducer, 180 Deg Elbow, Reducing Tee, Bend, Long Radius Bend, 90 Deg Elbow, Long Stubend, End Cap, Short Radius Elbow, Long Radius Elbow, 1D Elbow, 3D Elbow, 45 Deg Elbows, Nipple, Swage Nipple, Concentric Reducer, Eccentric Reducer, Barrel Nipple, Piggable Bend, 5D Elbow, Reducing Nipple, Tee, Short Stubend, Cap

ASTM A234 WP22 Pipe Fittings Price List

If you purchase directly from Alloy Steel A234 WP22 Buttweld Fittings manufacturers you can save 10-12% cost

Description Price Per Kg In Singapore Price Per Kg In UAE Price Per Kg In USD Price Per Kg In Malaysia
28 THK 25.14MM ASME B16.9 SEAMLESS PIPE FITTINGS-90 DEG LR ELBOW ASTM A234 GR WP22 BEVELLED END SGD 8.86 UAE Dirham 23.12 US $6.40 MYR 28.04
SIZE 2X1 SCH80 ASTM A234 WP22 B16.9SMLS CARBON STEEL SEAMLESS PIPE FITTING TEE SGD 0.79 UAE Dirham 2.07 US $0.57 MYR 2.51
SIZE 1.1/4 SCH40 CARBON STEEL SEAMLESS PIPE FITTING ASTM A234 WP22 B16.9 SMLS 90 ELBOW SGD 0.63 UAE Dirham 1.65 US $0.46 MYR 2.00
32 24 THK 28.74MM X SCH 60 ASME B16.9 SMLS ECCENTRIC REDUCER ASTM A234 GR WP22 BEVELLED END SGD 7.81 UAE Dirham 20.40 US $5.64 MYR 24.74
26 THK 23.34 MM ASME B16.9 SEAMLESS 45 DEG LR ELBOW ASTM A234 GR WP22 BEVELLED END SGD 7.87 UAE Dirham 20.54 US $5.68 MYR 24.91
38 36 THK 32.95MM X THK 31.21MM ASME B16.9 SMLS ECCENTRIC REDUCER ASTM A234 GR WP22 BEVELLED END SGD 8.60 UAE Dirham 22.47 US $6.21 MYR 27.25
32 THK 27.75MM ASME B16.9 SEAMLESS PIPE FITTINGS-90 DEG LR ELBOW ASTM A234 GR WP22 BEVELLED END SGD 7.79 UAE Dirham 20.35 US $5.63 MYR 24.68

Types of ASTM A234 WP22 Fittings

A234 Gr WP22 Reducer

A234 Gr WP22 Reducer

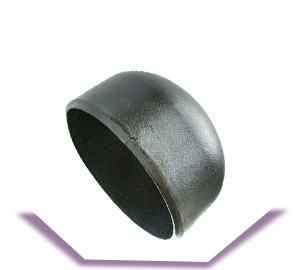

WP22 Fittings End Cap

WP22 Fittings End Cap

Alloy Steel A234 WP22 Reducing Tee

Alloy Steel A234 WP22 Reducing Tee

ASTM A234 WP22 Laterals

ASTM A234 WP22 Laterals

ASME SA 234 WP22 Eccentric Reducer

ASME SA 234 WP22 Eccentric Reducer

A234 Gr WP22 Cross Fitting

A234 Gr WP22 Cross Fitting

A234 WP22 Elbow

A234 WP22 Elbow

ASME SA 234 WP22 Lap Joint Stub Ends

ASME SA 234 WP22 Lap Joint Stub Ends

Alloy Steel A234 WP22 45 Degree Elbows

Alloy Steel A234 WP22 45 Degree Elbows

A234 WP22 Cross Tee

A234 WP22 Cross Tee

CrMo ASTM A234 WP22 Weld Elbows

CrMo ASTM A234 WP22 Weld Elbows

Alloy Steel A234 WP22 Return Bends

Alloy Steel A234 WP22 Return Bends

A234 Gr WP22 Concentric Reducer

A234 Gr WP22 Concentric Reducer

ASTM A234 WP22 Fittings

ASTM A234 WP22 Fittings

ASTM A234 Gr WP22 90 Degree Elbows

ASTM A234 Gr WP22 90 Degree Elbows

CrMo ASTM A234 WP22 Stub End

CrMo ASTM A234 WP22 Stub End

ASTM A234 Gr WP22 Equal Tee

ASTM A234 Gr WP22 Equal Tee

ASTM A234 WP22 180 Degree Elbows

ASTM A234 WP22 180 Degree Elbows

Alloy Steel WP22 Butt weld Pipe Fittings Dimensions

MSS SP-43/SP-79 WP22 Butt Weld Fittings manufacturer in India, we use only high quality & tested material to produce Alloy Steel 5Cr-1/2Mo Welded Fittings

AS 45 Deg Elbows AS 90 Deg Elbows NPS AS 180 Deg Return Long Radius
Long Radius 3R Long Radius Short Radius 3R XS STD
STD XS XS STD STD SCH. 160 XS XXS XS STD STD XS
.09 .19 * * .18 * .25 * * * * * ½ * .35
.09 .19 * * .19 * .25 * * * * * ¾ .65 .40
0.25 .31 * * .40 .60 .50 .75 * .25 * * 1 1.00 .75
0.38 .50 * * .60 1.00 .90 1.38 * .4 * * 1.75 1.25
.40 .69 * * .90 1.80 1.15 1.50 .75 .56 * * 2.39 1.88
.81 1.19 2.1 1.5 1.60 3.25 2.20 3.50 1.50 1.00 3.00 4.00 2 4.40 3.23
1.75 2.13 4.00 3.00 3.25 5.13 4.00 7.00 2.80 2.13 6.00 8.00 8.00 6.50
2.63 3.50 7.00 5.00 5.00 8.50 6.50 11.0 4.25 3.00 10.0 13.0 3 13.00 10.25
3.50 4.50 9.00 7.00 6.75 * 8.35 16.0 6.00 4.50 13.0 18.0 16.75 13.00
4.50 6.10 13.0 9.00 9.00 18.0 13.5 20.0 8.50 6.25 18.0 25.0 4 25.0 18.5
7.50 10.7 22.0 15.0 15.0 32.0 22.0 36.0 14.0 9.60 29.0 43.0 5 44.0 30.0
12.0 17.5 35.0 23.0 24.5 57.0 35.0 65.0 23.0 18.0 45.0 70.0 6 70.0 50.0
23.0 35.0 70.0 45.0 50.0 120 71.0 118 47.5 34.0 90.0 140 8 142 95.0
43.0 53.0 109 80.0 88.0 260 107 * 70.0 58.0 159 218 10 215 117
62.0 84.0 155 117 125 450 160 * 104 80.0 233 310 12 320 230
80.0 100 200 149 160 572 205 * 140 105 298 400 14 400 325
100 135 260 195 206 * 276 * 174 132 390 520 16 550 412
126 167 330 248 260 * 340 * 219 167 495 660 18 690 510
160 206 405 305 320 * 420 * 275 210 610 810 20 830 640
197 260 490 368 394 * 520 * * * 735 980 22 1040 787
238 300 585 438 460 * 600 * 392 298 875 1170 24 1200 890
275 365 685 515 550 * 729 1030 1370 26
367 488 915 685 734 975 1370 1830 30
531 706 1315 985 1062 1412 1970 2630 36

Pressure Rating of Alloy Steel 2 1/4Cr-1Mo Welded Fittings

Temperature Ratings Pressure Class
150 300
1 1/4 - 2 Inches 1/4 - 1 Inches 2 1/2 - 3 Inches
(oC) (oF)
-29 to 66 -20 to 150 300 1500 2000 1000
93 200 265 1350 1785 910
121 250 225 1200 1575 825
149 300 185 1050 1360 735
177 350 150 900 1150 650
204 400 - 750 935 560
232 450 - 600 725 475
260 500 - 450 510 385
288 550 - 300 300 300

Supplier of ASTM A234 Grade WP22 Long/ Short Radius Elbow, Refer Sizes and Dimensions of Alloy Steel WP22 Reducer

Alloy Steel ASTM A234 WP22 Fittings Chemical Composition

A leading supplier of industrial Chrome Moly Alloy Steel Grade WP22 Seamless Pipe Fitting, we offer a wide range of cost effective Alloy Steel A234 WP22 Pipe Fittings

P Mn Mo Si C Cr S
≤0.04 0.3-0.6 0.87-1.13 ≤0.5 0.05-0.15 2-2.5 ≤0.04

Chrome Moly Alloy Steel WP22 Seamless Pipe Fittings Mechanical Properties

(% in 50mm) Elongation, min 0.2% Proof (MPa) Yield Properties, min (MPa) Tensile Properties, min
≥20 ≥205 415 - 585
Free Sample Can be provided for large scale orders of SA234 WP22 Weld Fittings and SA 234 WP22 Equal/ Reducing Tee

ASTM A234 WP22 Alloy Steel Fittings Applications

Manufacturer of ASME SA234 WP22 Pipe Fittings Seamless/ Welded Fittings such as Alloy Steel ASTM A234 WP22 Buttweld Fittings

  • Specialty Chemicals

  • Sea Water Equipment

  • Pharmaceuticals

  • Power Generation

  • Chemical Equipment

  • Pulp and Paper Industry

  • Heat Exchangers

  • Condensers

  • Petrochemicals

  • Pharmaceutical Equipment

  • Off-Shore Oil Drilling Companies

  • Gas Processing

Alloy Steel WP22 Pipe Fittings Schedule Chart

Buttweld Fittings
DN Schedule 10S Schedule 40S
45° Elbow 90° Elbow Equal tee Stub end type (B) End cap 45° Elbow 90° Elbow Equal tee End cap Stub end type (B)
15 0.03 0.06 0.09 0.07 0.03 0.04 0.08 0.10 0.04 0.08
20 0.03 0.07 0.13 0.09 0.05 0.04 0.08 0.17 0.07 0.11
25 0.08 0.14 0.28 0.16 0.08 0.11 0.15 0.29 0.10 0.17
32 0.11 0.23 0.49 0.22 0.10 0.17 0.26 0.59 0.18 0.25
40 0.17 0.30 0.68 0.25 0.11 0.23 0.40 0.86 0.20 0.31
50 0.25 0.50 0.85 0.43 0.13 0.40 0.70 1.28 0.23 0.61
65 0.48 0.85 1.41 0.57 0.19 0.77 1.40 2.19 0.27 0.80
80 0.63 1.25 1.77 0.72 0.25 1.08 2.20 3.31 0.42 1.13
100 1.08 2.10 3.46 1.09 0.68 1.47 4.47 5.27 1.14 1.87
125 1.82 3.65 5.44 1.47 1.11 2.84 6.80 9.63 2.13 2.79
150 2.72 5.45 8.03 2.15 1.42 5.44 10.89 10.99 3.23 3.57
200 5.33 10.20 15.65 3.22 2.38 10.77 21.54 20.91 5.19 6.07
250 9.75 18.15 26.76 5.13 4.45 19.27 38.56 35.38 9.00 10.07
300 13.62 25.80 39.46 8.16 7.50 29.71 59.42 62.14 15.00 14.29
350 18.37 36.29 48.53 10.88 8.17 35.15 79.38 79.31 16.00 17.14
400 23.81 47.63 58.97 12.70 10.67 45.81 99.79 99.79 21.00 20.41
450 29.94 59.87 79.65 17.23 13.00 59.40 129.73 129.73 26.00 27.21
500 49.90 99.80 103.42 21.77 17.00 74.84 162.38 162.39 34.00 29.94
600 70.31 140.61 155.58 27.21 26.00 105.23 225.89 225.90 52.00 38.55

ASTM A234 WP22 Fittings Wall Thickness

O.D. (mm) Nominal Pipe Size W.T. (mm)
Sch 5S Sch 10S Sch 40S Sch 80S
NPS DN Weight (kg/m) WT (mm) Weight (kg/m) WT (mm) Weight (kg/m) WT (mm) Weight (kg/m) WT (mm)
10.3 6 0.28 1.24 0.37 1.73 0.47 2.41
13.7 ¼ 8 0.49 1.65 0.63 2.24 0.80 3.02
17.1 10 0.63 1.65 0.84 2.31 1.10 3.20
21.3 ½ 15 0.80 1.65 1.00 2.11 1.27 2.77 1.62 3.73
26.7 ¾ 20 1.02 1.65 1.28 2.11 1.69 2.87 2.20 3.91
33.4 1 25 1.29 1.65 2.09 2.77 2.50 3.38 3.24 4.55
42.2 32 1.65 1.65 2.69 2.77 3.39 3.56 4.47 4.85
48.3 40 1.90 1.65 3.11 2.77 4.05 3.68 5.41 5.08
60.3 2 50 2.39 1.65 3.93 2.77 5.44 3.91 7.48 5.54
73.0 65 3.69 2.11 5.26 3.05 8.63 5.16 11.41 7.01
88.9 3 80 4.52 2.11 6.46 3.05 11.29 5.49 15.27 7.62
101.6 90 5.18 2.11 7.41 3.05 13.57 5.74 18.64 8.08
114.3 4 100 5.84 2.11 8.37 3.05 16.08 6.02 22.32 8.56
141.3 5 125 9.46 2.77 11.56 3.40 21.77 6.55 30.97 9.53
168.3 6 150 11.31 2.77 13.83 3.40 28.26 7.11 42.56 10.97
219.1 8 200 14.78 2.77 19.97 3.76 42.55 8.18 64.64 12.70
273.1 10 250 22.61 3.40 27.79 4.19 60.31 9.27 81.56 12.70
323.9 12 300 31.25 3.96 35.99 4.57 73.88 9.53 97.47 12.70
355.6 14 350 34.34 3.96 41.36 4.78 81.33 9.53 107.40 12.70
406.4 16 400 41.56 4.19 47.34 4.78 93.27 9.53 123.31 12.70
457 18 450 46.79 4.19 53.31 4.78 105.17 9.53 139.16 12.70
508 20 500 59.32 4.78 68.65 5.54 117.15 9.53 155.13 12.70
559 22 550 65.33 4.78 75.62 5.54
610 24 600 82.58 5.54 94.53 6.35 141.12 9.53 187.07 12.70
660 26 650
711 28 700
762 30 750 118.34 6.35 147.29 7.92
Exporter of ASTM A234 Grade WP22 Buttweld Fittings and Alloy Steel WP22 Stub End in Size range of 1/2 to 48 inches

ASME SA 234 WP22 Elbow Sizes

Elbow Pipe Fittings
PIPE NOMINAL SIZE OUTSIDE DIAM. 90° ELBOW 45° ELBOW 180° RETURNS
(inches) Short Radius Long Radius Long Radius Long Radius
(mm) (inches) Center to Face
(inches)
Center to Face
(inches)
Radius
(inches)
Center to Face
(inches)
Back to face
(inches)
Center to Center
(inches)
3/4 26.7 1.050 1 1/8 7/16 1 11/16 2 1/4
1/2 21.3 0.840 1 1/2 5/8 1 7/8 2
1 33.4 1.315 1 1 1/2 7/8 2 3/16 3
1 1/2 48.3 1.900 1 1/2 2 1/4 3 1 1/8 3 1/4 4 1/2
1 1/4 42.2 1.660 1 1/4 1 7/8 1 2 3/4 3 3/4
2 60.3 2.375 2 3 4 1 3/8 4 3/16 6
3 88.9 3.500 3 4 1/2 6 2 6 1/4 9
2 1/2 73.0 2.875 2 1/2 3 3/4 5 1 3/4 5 3/16 7 1/2
3 1/2 101.6 4.000 3 1/2 5 1/4 7 2 1/4 7 1/4 10 1/2
5 141.3 5.563 5 7 1/2 10 3 1/8 10 5/16 15
4 114.3 4.500 4 6 8 2 1/2 8 1/4 12
6 168.3 6.625 6 9 12 3 3/4 12 5/16 18
10 273.1 10.750 10 15 15 6 1/4 20 3/8 30
8 219.1 8.625 8 12 12 5 16 5/16 24
12 323.9 12.750 12 18 18 7 1/2 24 3/8 36

CrMo ASTM A234 WP22 Tee Weight

Purchasing Alloy Steel WP22 Butt Weld Pipe Fittings and Alloy Steel A234 WP22 CL1 Pipe Fitting from the manufacturer directly saves your time and cost

Equal Tee Pipe Fittings
Weight Nominal pipe size Schedule Dimensions in mm
kg/pce in.0 t D C/M
0.0092
0.0115
0.0200
0.0300
3/4 10s
40s
80s
160
2.011
2.087
3.091
5.056
26.07
26.07
26.07
26.07
28.06
28.06
28.06
28.06
0.0065
0.0085
0.0140
0.0150
1/2 10s
40s
80s
160
2.011
2.077
3.073
4.078
21.03
21.03
21.03
21.03
25.04
25.04
25.04
25.04
0.0200
0.0245
0.0390
0.0470
1 10s
40s
80s
160
2.077
3.038
4.055
6.035
33.04
33.04
33.04
33.04
38.01
38.01
38.01
38.01
0.0460
0.0595
1.0020
1.0430
10s
40s
80s
160
2.077
3.068
5.008
7.014
48.03
48.03
48.03
48.03
57.02
57.02
57.02
57.02
0.0330
0.0420
0.0548
0.0890
10s
40s
80s
160
2.077
3.056
4.085
6.035
42.02
42.02
42.02
42.02
47.06
47.06
47.06
47.06
0.0630
0.0872
1.0590
3.0180
2 10s
40s
80s
160
2.077
3.091
5.054
8.074
60.03
60.03
60.03
60.03
63.05
63.05
63.05
63.05
76.0660 18 10s 4.078 457.02 342.09
1.0370
1.0900
4.0450
5.0870
3 10s
40s
80s
160
3.005
5.049
7.062
11.013
88.09
88.09
88.09
88.09
85.07
85.07
85.07
85.07
155.0580 24 10s 6.035 609.06 431.08
1.0100
1.0700
3.0630
10s
40s
160
3.005
5.016
9.052
73.00
73.00
73.00
76.02
76.02
76.02
1.0740
3.0190
10s
40s
3.005
5.074
101.06
101.06
95.03
95.03
3.0480
6.0550
11.0340
5 10s
40s
80s
3.040
6.055
9.053
141.03
141.03
141.03
123.08
123.08
123.08
2.0150
4.0130
7.0710
9.0760
4 10s
40s
80s
160
3.005
6.002
8.056
13.049
114.03
114.03
114.03
114.03
104.08
104.08
104.08
104.08
4.0760
9.0730
13.0610
6 10s
40s
80s
3.040
7.011
10.092
168.03
168.03
168.03
142.09
142.09
142.09
14.0200
30.0800
10 10s
40s
4.019
9.027
273.01
273.01
215.09
215.09
8.0460
18.0000
8 10s
40s
3.076
8.018
219.01
219.01
177.08
177.08
21.0600
44.0300
12 10s
40s
4.057
9.053
323.09
323.09
254.00
254.00
58.0970
99.0790
16 10s
STD
4.078
9.053
406.04
406.04
304.08
304.08
48.0530
79.0380
14 10s
STD
4.078
9.053
355.06
355.06
279.04
279.04
103.0420 20 10s 5.054 508.00 381.00

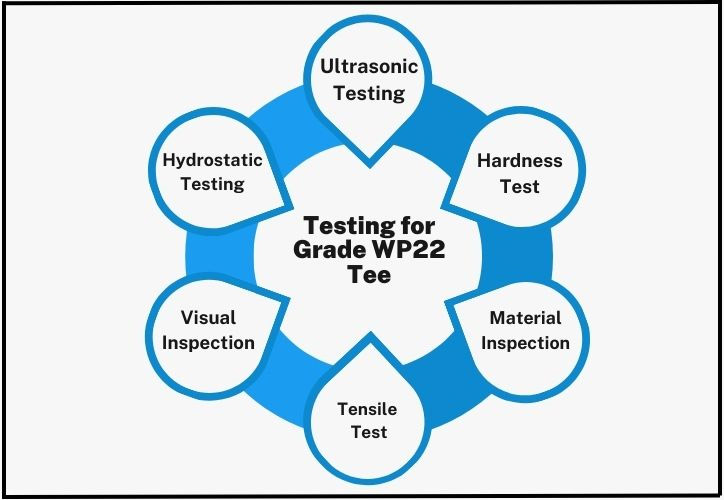

ASTM A234 WP22 Alloy Steel Pipe Fitttings Testing


  • Ultrasonic test
  • Flaring test
  • Chemical composition analysis
  • Flattening test
  • Mechanical test
  • Macro and micro test
  • Visual analysis
  • Third party inspection

Know the Delivery strength of your supplier first

ConocoPhillips Barossa Project-Australia

ConocoPhillips Barossa Project-Australia

Singapore Lng Corporation Pte Ltd

Singapore Lng Corporation Pte Ltd

Ruwais Refinery Complex - Third Grassroot Refinery United Arab Emirates

Ruwais Refinery Complex - Third Grassroot Refinery United Arab Emirates

Al Bawani Water & Power (AWP)-Saudi Arabia

Al Bawani Water & Power (AWP)-Saudi Arabia

Al Zour Refinery Dubai

Al Zour Refinery Dubai

Ras Laffan - Qatargas - NFE-Abu Dhabi

Ras Laffan - Qatargas - NFE-Abu Dhabi
