WPHY 70 are high temperature and pressure carbon steel fittings grade. The WPHY 70 Fittings are designed with a superior chemical composition that gives it enhanced corrosion resistance properties. These fittings are used to influence the characteristics of the flow in the system. The MSS SP75 WPHY Gr 70 Buttweld Fittings are high-strength fittings that have some weld joint designs. These fittings can be shaped in different specifications and shapes to suit different product requirements. They are quality-assured and produced under the guidance of our renowned customers.
The WPHY Gr 70 Elbow is a versatile device that is employed to change the direction of fluid and gaseous media in pressurized conditions. These elbows can be produced in long or short radius specifications. A WPHY Grade 70 Tee is a device that is shaped in the form of a T. These tees possess 2 outlets at 90 degrees with one main line inlet. These tees can also be availed in other specifications. The MSS SP75 WPHY Grade 70 Lateral Tee is similar to a normal tee; however, these tees possess a branch pipe that is 45 degrees from the piping system. ASTM A870 WPHY Grade 70 Cap is a fitting that is employed to seal the ends of a pipeline. These caps provide superior strength and protect the piping system from damage and corrosion. The ASTM A870 WPHY Gr 70 Reducer is utilized to join piping components of dissimilar sizes. These reducers are designed with eccentric and concentric specifications. The versatile Carbon Steel WPHY 70 Return Bends is a device that allows the pipe to make a 180-degree turn to change the direction of the flow. These bends are U-shaped structures that can be seen as L-bends that are joined together.
Grade | WPHY 70 Fittings |
---|---|
Dimensions | ANSI/ASME B16.28, B16.9, MSS-SP-43, MSS-SP-75. |
Type | Welded / Fabricated / Seamless WPHY 70 fittings |
Bending Radius | R=2D, 3D, 6D, 1D, 5D, 10D, 8D |
Size Range | Seamless ½” to 24”, ½" upto 120" NB, Welded ½” to 120”, Two Halve/ Two Joint Fittings 6” upto 48” |
Wall thickness | Schedule 10 to XXS according to NACE MR 01-75 |
Uses | Shipbuilding, Petroleum, Power, Metallurgy, Gas, Chemical, etc |
Color | Black |
Material | Elbows, Fittings, Reducers, Pipe fittings, Tees, Caps |
Applicable Standards |
|
Surface treatment | Sand Rolling and Blasting |
WPHY 70 Fittings Types | Concentric Reducer, Short Stubend, Long Stubend, Reducing Nipple, Reducing Tee, Bend, Eccentric Reducer, Stubend, Nipple, Elbows, 3D Elbow, Piggable Bend, 5D Elbow, Cap, Barrel Nipple, 1D Elbow, End Cap, Long Radius Bend, 45 Deg Elbows, Equal Tee, Reducer, Swage Nipple, 90 Deg Elbow, Long Radius Elbow, Tee, Short Radius Elbow, 180 Deg Elbow |
Seamless/ Welded WPHY 70 Elbow 100% Radiography Tested |
Description | Price Per Kg In Singapore | Price Per Kg In UAE | Price Per Kg In USD | Price Per Kg In Malaysia |
---|---|---|---|---|
30X24 WT=20.62MM X17.48MM WT SP FLOW TEE ASTM A860 WPHY70 WELDED STEEL PIPE FITTINGS | SGD 27.87 | Dirham 74.40 | US $ 20.25 | MYR 88.94 |
15.9MM X 12.7MM WT 34X8 ASTM A860 WPHY-70, MSS-SP-75 TEE BUTT WELD PIPE FITTINGS | SGD 2778.21 | Dirham 7415.63 | US $ 2018.84 | MYR 8865.05 |
THK- 17.40MMX12.70MM BUTTWELD SEAMLESS CARBON STEEL PIPE FITTINGS A 860 WPHY 70 SZ-24X12NB REDUCER TEE | SGD 2302.68 | Dirham 6146.35 | US $ 1673.29 | MYR 7347.69 |
NPS 8X12.70MM THK SA860 GR. WPHY70 CARBON STEEL BUTT/WELDED FITTINGS BARRED EQUAL TEE | SGD 248.10 | Dirham 662.23 | US $ 180.29 | MYR 791.67 |
SCH 40, ELBOW 18, 90 LR, A860 WPHY-70 BW FITTINGS | SGD 667.40 | Dirham 1781.44 | US $ 484.98 | MYR 2129.63 |
4 X STD -4KG MSS SP-75 WPHY 70 90 DEGREE ELBOW LR ASME B16.9 BW WROUGHTS | SGD 30.51 | Dirham 81.45 | US $ 22.17 | MYR 97.37 |
THK-12.70MM BUTTWELD SEAMLESS CARBON STEEL PIPE FITTINGS SZ-16NB 90DEG. A 860 WPHY 70 ELBOW | SGD 607.90 | Dirham 1622.61 | US $ 441.74 | MYR 1939.76 |
INCH 30 SCHEDULE 0.562 CS EQUAL BARRED TEE STD/MSS SP 75 BW WROUGHT S WPHY 70 FITTINGS | SGD 3212.94 | Dirham 8576.01 | US $ 2334.74 | MYR 10252.24 |
18 (W.T.0.625) X 8 (W.T.0.406) A860 WPHY-70 REDUCER TEE, BW FITTINGS | SGD 673.04 | Dirham 1796.49 | US $ 489.08 | MYR 2147.62 |

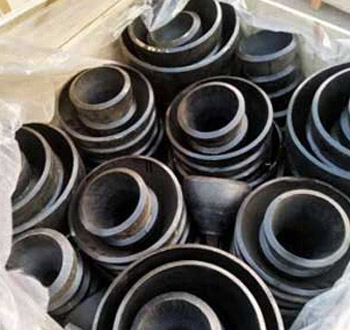

WPHY Grade 70 CS End Cap
ASTM A870 WPHY Gr 70 Return Bends
MSS SP75 WPHY Gr 70 Cross Fitting
ASTM A870 WPHY Grade 70 Lap Joint Stub Ends

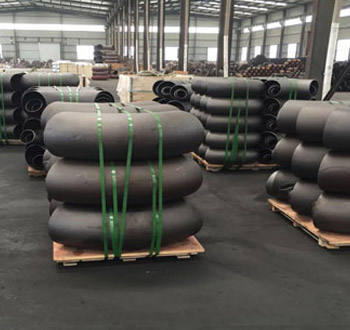

WPHY Gr 70 Carbon Steel 90 Degree Elbows
WPHY Grade 70 Carbon Steel Elbow

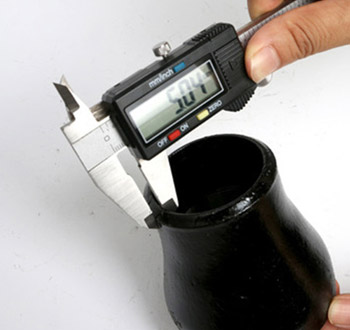

Carbon Steel WPHY Grade 70 Reducer

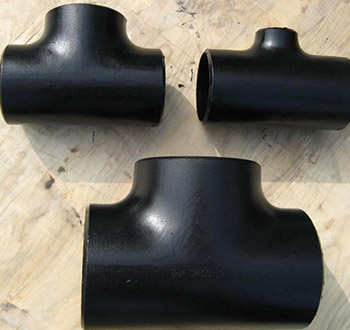

Carbon Steel WPHY Gr 70 Equal Tee
CS WPHY Gr 70 Laterals
CS WPHY Grade 70 45 Degree Elbows
API 5L WPHY Grade 70 Eccentric Reducer
CS Grade 70 High Yield Stub End
Carbon Steel WPHY 70 180 Degree Elbows
WPHY Grade 70 High Yield Reducing Tee
API 5L WPHY 70 Cross Tee
API 5L WPHY 70 Fittings
CS WPHY 70 High Yield Concentric Reducer
MSS SP75 WPHY Grade 70 Weld Elbows
DN | Schedule 10S | Schedule 40S | ||||||||
---|---|---|---|---|---|---|---|---|---|---|
45° Elbow | 90° Elbow | Equal tee | Stub end type (B) | End cap | 45° Elbow | 90° Elbow | Equal tee | End cap | Stub end type (B) | |
15 | 0.03 | 0.06 | 0.09 | 0.07 | 0.03 | 0.04 | 0.08 | 0.10 | 0.04 | 0.08 |
20 | 0.03 | 0.07 | 0.13 | 0.09 | 0.05 | 0.04 | 0.08 | 0.17 | 0.07 | 0.11 |
25 | 0.08 | 0.14 | 0.28 | 0.16 | 0.08 | 0.11 | 0.15 | 0.29 | 0.10 | 0.17 |
32 | 0.11 | 0.23 | 0.49 | 0.22 | 0.10 | 0.17 | 0.26 | 0.59 | 0.18 | 0.25 |
40 | 0.17 | 0.30 | 0.68 | 0.25 | 0.11 | 0.23 | 0.40 | 0.86 | 0.20 | 0.31 |
50 | 0.25 | 0.50 | 0.85 | 0.43 | 0.13 | 0.40 | 0.70 | 1.28 | 0.23 | 0.61 |
65 | 0.48 | 0.85 | 1.41 | 0.57 | 0.19 | 0.77 | 1.40 | 2.19 | 0.27 | 0.80 |
80 | 0.63 | 1.25 | 1.77 | 0.72 | 0.25 | 1.08 | 2.20 | 3.31 | 0.42 | 1.13 |
100 | 1.08 | 2.10 | 3.46 | 1.09 | 0.68 | 1.47 | 4.47 | 5.27 | 1.14 | 1.87 |
125 | 1.82 | 3.65 | 5.44 | 1.47 | 1.11 | 2.84 | 6.80 | 9.63 | 2.13 | 2.79 |
150 | 2.72 | 5.45 | 8.03 | 2.15 | 1.42 | 5.44 | 10.89 | 10.99 | 3.23 | 3.57 |
200 | 5.33 | 10.20 | 15.65 | 3.22 | 2.38 | 10.77 | 21.54 | 20.91 | 5.19 | 6.07 |
250 | 9.75 | 18.15 | 26.76 | 5.13 | 4.45 | 19.27 | 38.56 | 35.38 | 9.00 | 10.07 |
300 | 13.62 | 25.80 | 39.46 | 8.16 | 7.50 | 29.71 | 59.42 | 62.14 | 15.00 | 14.29 |
350 | 18.37 | 36.29 | 48.53 | 10.88 | 8.17 | 35.15 | 79.38 | 79.31 | 16.00 | 17.14 |
400 | 23.81 | 47.63 | 58.97 | 12.70 | 10.67 | 45.81 | 99.79 | 99.79 | 21.00 | 20.41 |
450 | 29.94 | 59.87 | 79.65 | 17.23 | 13.00 | 59.40 | 129.73 | 129.73 | 26.00 | 27.21 |
500 | 49.90 | 99.80 | 103.42 | 21.77 | 17.00 | 74.84 | 162.38 | 162.39 | 34.00 | 29.94 |
600 | 70.31 | 140.61 | 155.58 | 27.21 | 26.00 | 105.23 | 225.89 | 225.90 | 52.00 | 38.55 |
O.D. (mm) | Nominal Pipe Size | W.T. (mm) | ||||||||
---|---|---|---|---|---|---|---|---|---|---|
Sch 5S | Sch 10S | Sch 40S | Sch 80S | |||||||
NPS | DN | Weight (kg/m) | WT (mm) | Weight (kg/m) | WT (mm) | Weight (kg/m) | WT (mm) | Weight (kg/m) | WT (mm) | |
10.3 | ⅛ | 6 | 0.28 | 1.24 | 0.37 | 1.73 | 0.47 | 2.41 | ||
13.7 | ¼ | 8 | 0.49 | 1.65 | 0.63 | 2.24 | 0.80 | 3.02 | ||
17.1 | ⅜ | 10 | 0.63 | 1.65 | 0.84 | 2.31 | 1.10 | 3.20 | ||
21.3 | ½ | 15 | 0.80 | 1.65 | 1.00 | 2.11 | 1.27 | 2.77 | 1.62 | 3.73 |
26.7 | ¾ | 20 | 1.02 | 1.65 | 1.28 | 2.11 | 1.69 | 2.87 | 2.20 | 3.91 |
33.4 | 1 | 25 | 1.29 | 1.65 | 2.09 | 2.77 | 2.50 | 3.38 | 3.24 | 4.55 |
42.2 | 1¼ | 32 | 1.65 | 1.65 | 2.69 | 2.77 | 3.39 | 3.56 | 4.47 | 4.85 |
48.3 | 1½ | 40 | 1.90 | 1.65 | 3.11 | 2.77 | 4.05 | 3.68 | 5.41 | 5.08 |
60.3 | 2 | 50 | 2.39 | 1.65 | 3.93 | 2.77 | 5.44 | 3.91 | 7.48 | 5.54 |
73.0 | 2½ | 65 | 3.69 | 2.11 | 5.26 | 3.05 | 8.63 | 5.16 | 11.41 | 7.01 |
88.9 | 3 | 80 | 4.52 | 2.11 | 6.46 | 3.05 | 11.29 | 5.49 | 15.27 | 7.62 |
101.6 | 3½ | 90 | 5.18 | 2.11 | 7.41 | 3.05 | 13.57 | 5.74 | 18.64 | 8.08 |
114.3 | 4 | 100 | 5.84 | 2.11 | 8.37 | 3.05 | 16.08 | 6.02 | 22.32 | 8.56 |
141.3 | 5 | 125 | 9.46 | 2.77 | 11.56 | 3.40 | 21.77 | 6.55 | 30.97 | 9.53 |
168.3 | 6 | 150 | 11.31 | 2.77 | 13.83 | 3.40 | 28.26 | 7.11 | 42.56 | 10.97 |
219.1 | 8 | 200 | 14.78 | 2.77 | 19.97 | 3.76 | 42.55 | 8.18 | 64.64 | 12.70 |
273.1 | 10 | 250 | 22.61 | 3.40 | 27.79 | 4.19 | 60.31 | 9.27 | 81.56 | 12.70 |
323.9 | 12 | 300 | 31.25 | 3.96 | 35.99 | 4.57 | 73.88 | 9.53 | 97.47 | 12.70 |
355.6 | 14 | 350 | 34.34 | 3.96 | 41.36 | 4.78 | 81.33 | 9.53 | 107.40 | 12.70 |
406.4 | 16 | 400 | 41.56 | 4.19 | 47.34 | 4.78 | 93.27 | 9.53 | 123.31 | 12.70 |
457 | 18 | 450 | 46.79 | 4.19 | 53.31 | 4.78 | 105.17 | 9.53 | 139.16 | 12.70 |
508 | 20 | 500 | 59.32 | 4.78 | 68.65 | 5.54 | 117.15 | 9.53 | 155.13 | 12.70 |
559 | 22 | 550 | 65.33 | 4.78 | 75.62 | 5.54 | ||||
610 | 24 | 600 | 82.58 | 5.54 | 94.53 | 6.35 | 141.12 | 9.53 | 187.07 | 12.70 |
660 | 26 | 650 | ||||||||
711 | 28 | 700 | ||||||||
762 | 30 | 750 | 118.34 | 6.35 | 147.29 | 7.92 |
Weight | Nominal pipe size | Schedule | Dimensions in mm | ||
---|---|---|---|---|---|
kg/pce | in.0 | t | D | C/M | |
0.0092 0.0115 0.0200 0.0300 |
3/4 | 10s 40s 80s 160 |
2.011 2.087 3.091 5.056 |
26.07 26.07 26.07 26.07 |
28.06 28.06 28.06 28.06 |
0.0065 0.0085 0.0140 0.0150 |
1/2 | 10s 40s 80s 160 |
2.011 2.077 3.073 4.078 |
21.03 21.03 21.03 21.03 |
25.04 25.04 25.04 25.04 |
0.0200 0.0245 0.0390 0.0470 |
1 | 10s 40s 80s 160 |
2.077 3.038 4.055 6.035 |
33.04 33.04 33.04 33.04 |
38.01 38.01 38.01 38.01 |
0.0460 0.0595 1.0020 1.0430 |
1½ | 10s 40s 80s 160 |
2.077 3.068 5.008 7.014 |
48.03 48.03 48.03 48.03 |
57.02 57.02 57.02 57.02 |
0.0330 0.0420 0.0548 0.0890 |
1¼ | 10s 40s 80s 160 |
2.077 3.056 4.085 6.035 |
42.02 42.02 42.02 42.02 |
47.06 47.06 47.06 47.06 |
0.0630 0.0872 1.0590 3.0180 |
2 | 10s 40s 80s 160 |
2.077 3.091 5.054 8.074 |
60.03 60.03 60.03 60.03 |
63.05 63.05 63.05 63.05 |
76.0660 | 18 | 10s | 4.078 | 457.02 | 342.09 |
1.0370 1.0900 4.0450 5.0870 |
3 | 10s 40s 80s 160 |
3.005 5.049 7.062 11.013 |
88.09 88.09 88.09 88.09 |
85.07 85.07 85.07 85.07 |
155.0580 | 24 | 10s | 6.035 | 609.06 | 431.08 |
1.0100 1.0700 3.0630 |
2½ | 10s 40s 160 |
3.005 5.016 9.052 |
73.00 73.00 73.00 |
76.02 76.02 76.02 |
1.0740 3.0190 |
3½ | 10s 40s |
3.005 5.074 |
101.06 101.06 |
95.03 95.03 |
3.0480 6.0550 11.0340 |
5 | 10s 40s 80s |
3.040 6.055 9.053 |
141.03 141.03 141.03 |
123.08 123.08 123.08 |
2.0150 4.0130 7.0710 9.0760 |
4 | 10s 40s 80s 160 |
3.005 6.002 8.056 13.049 |
114.03 114.03 114.03 114.03 |
104.08 104.08 104.08 104.08 |
4.0760 9.0730 13.0610 |
6 | 10s 40s 80s |
3.040 7.011 10.092 |
168.03 168.03 168.03 |
142.09 142.09 142.09 |
14.0200 30.0800 |
10 | 10s 40s |
4.019 9.027 |
273.01 273.01 |
215.09 215.09 |
8.0460 18.0000 |
8 | 10s 40s |
3.076 8.018 |
219.01 219.01 |
177.08 177.08 |
21.0600 44.0300 |
12 | 10s 40s |
4.057 9.053 |
323.09 323.09 |
254.00 254.00 |
58.0970 99.0790 |
16 | 10s STD |
4.078 9.053 |
406.04 406.04 |
304.08 304.08 |
48.0530 79.0380 |
14 | 10s STD |
4.078 9.053 |
355.06 355.06 |
279.04 279.04 |
103.0420 | 20 | 10s | 5.054 | 508.00 | 381.00 |
DN | Schedule 10S | Schedule 40S | ||||||||
---|---|---|---|---|---|---|---|---|---|---|
45° Elbow | 90° Elbow | Equal tee | Stub end type (B) | End cap | 45° Elbow | 90° Elbow | Equal tee | End cap | Stub end type (B) | |
15 | 0.03 | 0.06 | 0.09 | 0.07 | 0.03 | 0.04 | 0.08 | 0.10 | 0.04 | 0.08 |
20 | 0.03 | 0.07 | 0.13 | 0.09 | 0.05 | 0.04 | 0.08 | 0.17 | 0.07 | 0.11 |
25 | 0.08 | 0.14 | 0.28 | 0.16 | 0.08 | 0.11 | 0.15 | 0.29 | 0.10 | 0.17 |
32 | 0.11 | 0.23 | 0.49 | 0.22 | 0.10 | 0.17 | 0.26 | 0.59 | 0.18 | 0.25 |
40 | 0.17 | 0.30 | 0.68 | 0.25 | 0.11 | 0.23 | 0.40 | 0.86 | 0.20 | 0.31 |
50 | 0.25 | 0.50 | 0.85 | 0.43 | 0.13 | 0.40 | 0.70 | 1.28 | 0.23 | 0.61 |
65 | 0.48 | 0.85 | 1.41 | 0.57 | 0.19 | 0.77 | 1.40 | 2.19 | 0.27 | 0.80 |
80 | 0.63 | 1.25 | 1.77 | 0.72 | 0.25 | 1.08 | 2.20 | 3.31 | 0.42 | 1.13 |
100 | 1.08 | 2.10 | 3.46 | 1.09 | 0.68 | 1.47 | 4.47 | 5.27 | 1.14 | 1.87 |
125 | 1.82 | 3.65 | 5.44 | 1.47 | 1.11 | 2.84 | 6.80 | 9.63 | 2.13 | 2.79 |
150 | 2.72 | 5.45 | 8.03 | 2.15 | 1.42 | 5.44 | 10.89 | 10.99 | 3.23 | 3.57 |
200 | 5.33 | 10.20 | 15.65 | 3.22 | 2.38 | 10.77 | 21.54 | 20.91 | 5.19 | 6.07 |
250 | 9.75 | 18.15 | 26.76 | 5.13 | 4.45 | 19.27 | 38.56 | 35.38 | 9.00 | 10.07 |
300 | 13.62 | 25.80 | 39.46 | 8.16 | 7.50 | 29.71 | 59.42 | 62.14 | 15.00 | 14.29 |
350 | 18.37 | 36.29 | 48.53 | 10.88 | 8.17 | 35.15 | 79.38 | 79.31 | 16.00 | 17.14 |
400 | 23.81 | 47.63 | 58.97 | 12.70 | 10.67 | 45.81 | 99.79 | 99.79 | 21.00 | 20.41 |
450 | 29.94 | 59.87 | 79.65 | 17.23 | 13.00 | 59.40 | 129.73 | 129.73 | 26.00 | 27.21 |
500 | 49.90 | 99.80 | 103.42 | 21.77 | 17.00 | 74.84 | 162.38 | 162.39 | 34.00 | 29.94 |
600 | 70.31 | 140.61 | 155.58 | 27.21 | 26.00 | 105.23 | 225.89 | 225.90 | 52.00 | 38.55 |
Product | Wall Thickness | Size | Welded | Seamless |
---|---|---|---|---|
Tee | SCH10S~XXS | 1/2″-24″ | √ | √ |
SCH5S~80S/XS | 8″-104″ | √ | ||
Cap | SCH10S~SCH160 | 1/2″-80″ | √ | |
Elbow | SCH10S~XXS | 1/2″-24″ | √ | √ |
SCH5S~80S/XS | 8″-104″ | √ | ||
Reducer | SCH10S~XXS | 1/2″-24″ | √ | √ |
SCH5S~80S/XS | 8″-104″ | √ | ||
Lap Joint Stub End | SCH5S~80S/XS | 1/2″-24″ | √ | √ |
SCH5S~80S/XS | 8″-80″ | √ |
Si | V | Mn | C | P | S | Cr | Mo | Ni | Cu | Cb | Ti | Al |
---|---|---|---|---|---|---|---|---|---|---|---|---|
0.15-0.40 | 0.10 | 1.00-1.45 | 0.20 | 0.03 | 0.01 | 0.30 | 0.25 | 0.50 | 0.35 | 0.04 | 0.05 | 0.06 |
Yield Properties (mpa) | Tensile Properties (mpa) |
---|---|
570 | 485 |
PMI test to ensure the material quality
Dimension controlling during fabricating and finished
100% Visual and surface examination
Tensile test per heat
Intergranular Corrosion test on request
NDT test of PT, UT, RT
Schedule | Nominal pipe size | Weight | Dimensions in mm | ||||
---|---|---|---|---|---|---|---|
in.0 | kg/pce | D | G | t | F | R.0 max.0 | |
10s 40s |
3/4 | 0.0100 0.0120 | 26.07 26.07 |
42.09 42.09 |
2.011 2.087 |
50.08 50.08 |
3.018 3.018 |
10s 40s |
1/2 | 0.0070 0.0090 | 21.03 21.03 |
34.09 34.09 |
2.011 2.077 |
50.08 50.08 |
3.018 3.018 |
10s 40s |
1 | 0.0160 0.0170 | 33.04 33.04 |
50.08 50.08 |
2.077 3.038 |
50.08 50.08 |
3.018 3.018 |
10s 40s |
1 ½ | 0.0250 0.0310 | 48.03 48.03 |
73.00 73.00 |
2.077 3.068 |
50.08 50.08 |
6.035 6.035 |
10s 40s |
1 ¼ | 0.0220 0.0250 | 42.02 42.02 |
63.05 63.05 |
2.077 3.056 |
50.08 50.08 |
4.076 4.076 |
10s 40s |
2 | 0.0430 0.0610 | 60.03 60.03 |
92.01 92.01 |
2.077 3.091 |
63.05 63.05 |
7.094 7.094 |
10s 40s |
3 | 0.0730 1.0130 | 88.09 88.09 |
127.00 127.00 |
3.005 5.049 |
63.05 63.05 |
9.053 9.053 |
10s 40s |
2 ½ | 0.0570 0.0800 | 73.00 73.00 |
104.08 104.08 |
3.005 5.016 |
63.05 63.05 |
7.094 7.094 |
10s 40s |
4 | 1.0090 1.0870 | 114.03 114.03 |
157.02 157.02 |
3.005 6.002 |
76.02 76.02 |
11.011 11.011 |
10s 40s |
6 | 2.0150 3.0570 | 168.03 168.03 |
215.09 215.09 |
3.040 7.011 |
88.09 88.09 |
12.070 12.070 |
10s 40s |
5 | 1.0470 2.0280 | 141.03 141.03 |
185.07 185.07 |
3.040 6.055 |
76.02 76.02 |
11.011 11.011 |
10s 40s |
8 | 3.0220 6.0070 | 219.01 219.01 |
269.09 269.09 |
3.076 8.018 |
101.06 101.06 |
12.070 12.070 |
Before choosing your supplier check our deliveries of last 2 years in below country
Driftwood LNG (Calcasieu Parish LNG Liquefaction Plant)- USA
Petroliam Nasional Berhad (PETRONAS)-Malaysia
Dominion Virginia Greensville County Power Station Greensville County, VA, U.S.
Singapore LNG Terminal Ancillary Products And Services (TAPS) Facility Jurong Island, Singapore
Sandoz South Africa (Pty) Ltd -Gauteng, Gauteng,South Africa
Origin Energy Limited Australia
