A WPHY 60 grade covers wrought carbon steel fittings that route, branch and join dissimilar grades. The WPHY 60 Fittings are designed with a superior content of chromium, nickel, molybdenum, and copper. These fittings influence the characteristics of gaseous and fluid flow in the system. ASTM A860 WPHY 60 grade has unique physical properties. The fittings of this grade are designed in schedules between SCH 10 to sch 160 and XXS. The fittings can be produced in seamless or welded types. The A860 WPHY 60 Buttweld Fittings are one of the strongest weld fittings that work well in high pressure and temperature setups. The WPHY-60 Specification is designed in sizes between 1/2 NB to 48 NB. The standards of these specification dimensions vary as per the ASME B16.9 and B16.28 standards. The WPHY 60 Material has excellent mechanical properties. The material has a tensile strength between 515 to 690mpa with a minimum yield strength of 415mpa. They can be easily elongated by 28% in the system. We are the WPHY 60 Fittings manufacturer in India who have a vast inventory of stock of different size specifications to suit different project requirements.
The WPHY 60 Elbow is utilized to change the fluid and gaseous flow of media across pressurized conditions. These elbows are designed in long or short radius specifications. A WPHY Grade 60 Tee is a versatile grade that has three openings with 2 outlets at an angle of 90 degrees with a main connecting line. These tees can be availed in different configurations. The MSS SP75 WPHY 60 Pipe Cap is used to enclose the ends of a piping grade. These caps provide protection against damage and corrosion as the components are transported or stored. A WPHY 60 Reducer is produced to act as an adapter between two piping grades of dissimilar sizes. They can be availed in concentric and eccentric specifications.
Grade | WPHY 60 Fittings |
---|---|
Dimensions | ANSI/ASME B16.28, B16.9, MSS-SP-43, MSS-SP-75. |
Bending Radius | R=1D, 3D, 10D, 2D, 5D, 8D, 6D |
Uses | Chemical, Petroleum, Power, Gas, Metallurgy, Shipbuilding, etc |
Wall thickness | Schedule 10 to XXS according to NACE MR 01-75 |
Size Range | Seamless ½” to 24”, ½" upto 120" NB, Welded ½” to 120”, Two Halve/ Two Joint Fittings 6” upto 48” |
Type | Welded / Fabricated / Seamless WPHY 60 fittings |
Color | Black |
Surface treatment | Sand Rolling and Blasting |
Material | Elbows, Fittings, Reducers, Pipe fittings, Tees, Caps |
Applicable Standards |
|
WPHY 60 Fittings Types | Stubend, Bend, Reducing Nipple, Long Radius Elbow, Reducing Tee, Cap, Swage Nipple, 45 Deg Elbows, Nipple, 5D Elbow, Long Stubend, Eccentric Reducer, Concentric Reducer, 1D Elbow, Tee, 180 Deg Elbow, Barrel Nipple, Piggable Bend, Short Stubend, Reducer, Equal Tee, 3D Elbow, Short Radius Elbow, 90 Deg Elbow, Long Radius Bend, Elbows, End Cap |
Seamless/ Welded WPHY 60 Elbow 100% Radiography Tested |
Description | Price Per Kg In Singapore | Price Per Kg In UAE | Price Per Kg In USD | Price Per Kg In Malaysia |
---|---|---|---|---|
20INCH 20.6MM THK FITTINGS - CAP, MSS SP75 WPHY60 BUTTWELD FITTINGS | SGD 398.04 | Dirham 1060.43 | US $ 288.66 | MYR 1267.81 |
28 1.2WT * 2434.9MM THK PIPE FITTINGS REDUCER ECC.BW WELDED CS ASTM A860-WPHY60 MSS SP-75 | SGD 7.58 | Dirham 20.19 | US $ 5.50 | MYR 24.14 |
15.9 X 14.3MM WT 52 X 42 MSS-SP-75, ASTM A860 WPHY-60, TEE BUTT WELD PIPE FITTINGS | SGD 8204.12 | Dirham 21857.13 | US $ 5949.79 | MYR 26131.42 |
17.5 X 15.9MM WT L=711MM 54 X 48 ASTM A860 WPHY-60 MSS-SP-75, CON RED BUTT WELD PIPE FITTINGS | SGD 2057.56 | Dirham 5481.68 | US $ 1492.18 | MYR 6553.66 |
9.53MM PIPE FITTING CARBON STEEL DN 650 90 DEGREE ELBOW(LR) MSS-SP-75 GR.WPHY60 | SGD 2.16 | Dirham 5.77 | US $ 1.57 | MYR 6.90 |
23.8MM, 20 X 16 CARBON STEEL FITTINGS ECC.REDUCER, WPHY X 60 NACE | SGD 785.21 | Dirham 2091.93 | US $ 569.45 | MYR 2501.02 |
2 NB X 15.08 MM THK SEAMLESS BUTT WELDED STEEL PIPE FITTINGS ASTM A860 WPHY60 ELBOW | SGD 11.64 | Dirham 31.01 | US $ 8.44 | MYR 37.08 |
4 X2 7.9MM X4.8MM PIPE FITTINGS REDUCING TEE ASTM A860 GR WPHY-60, BW ASME B16.9 1500# | SGD 163.05 | Dirham 434.39 | US $ 118.25 | MYR 519.33 |

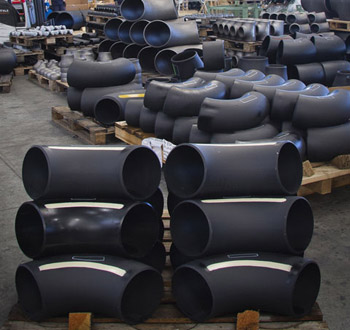

CS WPHY Grade 60 Elbow
WPHY Grade 60 High Yield Weld Elbows
CS WPHY 60 High Yield Reducing Tee
API 5L WPHY Gr 60 Return Bends
API 5L WPHY 60 Eccentric Reducer
Carbon Steel WPHY 60 Cross Fitting
CS WPHY Gr 60 Laterals
API 5L WPHY Grade 60 Cross Tee

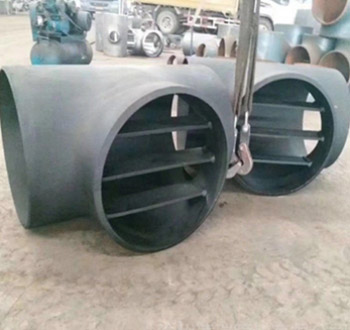

ASTM A860 WPHY Gr 60 Equal Tee
Carbon Steel WPHY Grade 60 Lap Joint Stub Ends
WPHY Grade 60 CS 90 Degree Elbows
WPHY Grade 60 Carbon Steel Concentric Reducer

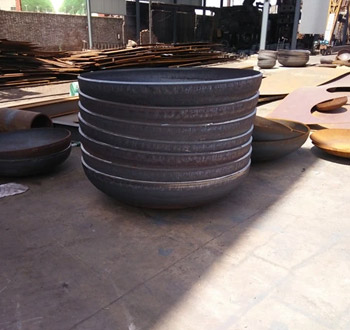

MSS SP75 WPHY Grade 60 End Cap
MSS SP75 WPHY Gr 60 45 Degree Elbows

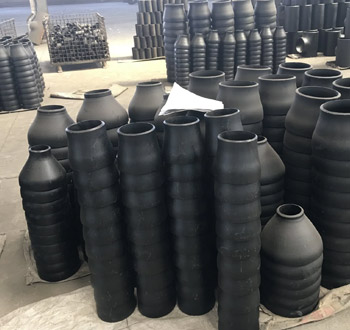

ASTM A860 WPHY Grade 60 Reducer
CS Grade 60 High Yield 180 Degree Elbows
Carbon Steel WPHY 60 Fittings
WPHY Gr 60 Carbon Steel Stub End
PIPE NOMINAL SIZE | OUTSIDE DIAM. | 90° ELBOW | 45° ELBOW | 180° RETURNS | ||||
---|---|---|---|---|---|---|---|---|
(inches) | Short Radius | Long Radius | Long Radius | Long Radius | ||||
(mm) | (inches) | Center to Face (inches) |
Center to Face (inches) |
Radius (inches) |
Center to Face (inches) |
Back to face (inches) |
Center to Center (inches) |
|
3/4 | 26.7 | 1.050 | – | 1 1/8 | 7/16 | 1 11/16 | 2 1/4 | |
1/2 | 21.3 | 0.840 | – | 1 1/2 | 5/8 | 1 7/8 | 2 | |
1 | 33.4 | 1.315 | 1 | 1 1/2 | 7/8 | 2 3/16 | 3 | |
1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 3 | 1 1/8 | 3 1/4 | 4 1/2 |
1 1/4 | 42.2 | 1.660 | 1 1/4 | 1 7/8 | 1 | 2 3/4 | 3 3/4 | |
2 | 60.3 | 2.375 | 2 | 3 | 4 | 1 3/8 | 4 3/16 | 6 |
3 | 88.9 | 3.500 | 3 | 4 1/2 | 6 | 2 | 6 1/4 | 9 |
2 1/2 | 73.0 | 2.875 | 2 1/2 | 3 3/4 | 5 | 1 3/4 | 5 3/16 | 7 1/2 |
3 1/2 | 101.6 | 4.000 | 3 1/2 | 5 1/4 | 7 | 2 1/4 | 7 1/4 | 10 1/2 |
5 | 141.3 | 5.563 | 5 | 7 1/2 | 10 | 3 1/8 | 10 5/16 | 15 |
4 | 114.3 | 4.500 | 4 | 6 | 8 | 2 1/2 | 8 1/4 | 12 |
6 | 168.3 | 6.625 | 6 | 9 | 12 | 3 3/4 | 12 5/16 | 18 |
10 | 273.1 | 10.750 | 10 | 15 | 15 | 6 1/4 | 20 3/8 | 30 |
8 | 219.1 | 8.625 | 8 | 12 | 12 | 5 | 16 5/16 | 24 |
12 | 323.9 | 12.750 | 12 | 18 | 18 | 7 1/2 | 24 3/8 | 36 |
45° Long Radius Center to End B |
90° Long Radius Center to End A |
NPS | 45° 3D Center to End B |
90° 3D Center to End A |
O.D. D |
---|---|---|---|---|---|
57 | 133 | 3.1/2 | 111 | 267 | 101.6 |
64 | 152 | 4 | 127 | 305 | 114.3 |
79 | 190 | 5 | 157 | 381 | 141.3 |
95 | 229 | 6 | 189 | 457 | 168.3 |
127 | 305 | 8 | 252 | 610 | 219.1 |
16 | 38 | 1/2 | 21.3 | ||
19 | 38 | 3/4 | 24 | 57 | 26.7 |
22 | 38 | 1 | 31 | 76 | 33.4 |
25 | 48 | 1.1/4 | 39 | 95 | 42.2 |
29 | 57 | 1.1/2 | 47 | 114 | 48.3 |
35 | 76 | 2 | 63 | 152 | 60.3 |
44 | 95 | 2.1/2 | 79 | 190 | 73 |
51 | 114 | 3 | 95 | 229 | 88.9 |
159 | 381 | 10 | 316 | 762 | 273 |
190 | 457 | 12 | 378 | 914 | 323.8 |
222 | 533 | 14 | 441 | 1067 | 355.6 |
254 | 610 | 16 | 505 | 1219 | 406.4 |
O.D. (mm) | Nominal Pipe Size | W.T. (mm) | ||||||||
---|---|---|---|---|---|---|---|---|---|---|
Sch 5S | Sch 10S | Sch 40S | Sch 80S | |||||||
NPS | DN | Weight (kg/m) | WT (mm) | Weight (kg/m) | WT (mm) | Weight (kg/m) | WT (mm) | Weight (kg/m) | WT (mm) | |
10.3 | ⅛ | 6 | 0.28 | 1.24 | 0.37 | 1.73 | 0.47 | 2.41 | ||
13.7 | ¼ | 8 | 0.49 | 1.65 | 0.63 | 2.24 | 0.80 | 3.02 | ||
17.1 | ⅜ | 10 | 0.63 | 1.65 | 0.84 | 2.31 | 1.10 | 3.20 | ||
21.3 | ½ | 15 | 0.80 | 1.65 | 1.00 | 2.11 | 1.27 | 2.77 | 1.62 | 3.73 |
26.7 | ¾ | 20 | 1.02 | 1.65 | 1.28 | 2.11 | 1.69 | 2.87 | 2.20 | 3.91 |
33.4 | 1 | 25 | 1.29 | 1.65 | 2.09 | 2.77 | 2.50 | 3.38 | 3.24 | 4.55 |
42.2 | 1¼ | 32 | 1.65 | 1.65 | 2.69 | 2.77 | 3.39 | 3.56 | 4.47 | 4.85 |
48.3 | 1½ | 40 | 1.90 | 1.65 | 3.11 | 2.77 | 4.05 | 3.68 | 5.41 | 5.08 |
60.3 | 2 | 50 | 2.39 | 1.65 | 3.93 | 2.77 | 5.44 | 3.91 | 7.48 | 5.54 |
73.0 | 2½ | 65 | 3.69 | 2.11 | 5.26 | 3.05 | 8.63 | 5.16 | 11.41 | 7.01 |
88.9 | 3 | 80 | 4.52 | 2.11 | 6.46 | 3.05 | 11.29 | 5.49 | 15.27 | 7.62 |
101.6 | 3½ | 90 | 5.18 | 2.11 | 7.41 | 3.05 | 13.57 | 5.74 | 18.64 | 8.08 |
114.3 | 4 | 100 | 5.84 | 2.11 | 8.37 | 3.05 | 16.08 | 6.02 | 22.32 | 8.56 |
141.3 | 5 | 125 | 9.46 | 2.77 | 11.56 | 3.40 | 21.77 | 6.55 | 30.97 | 9.53 |
168.3 | 6 | 150 | 11.31 | 2.77 | 13.83 | 3.40 | 28.26 | 7.11 | 42.56 | 10.97 |
219.1 | 8 | 200 | 14.78 | 2.77 | 19.97 | 3.76 | 42.55 | 8.18 | 64.64 | 12.70 |
273.1 | 10 | 250 | 22.61 | 3.40 | 27.79 | 4.19 | 60.31 | 9.27 | 81.56 | 12.70 |
323.9 | 12 | 300 | 31.25 | 3.96 | 35.99 | 4.57 | 73.88 | 9.53 | 97.47 | 12.70 |
355.6 | 14 | 350 | 34.34 | 3.96 | 41.36 | 4.78 | 81.33 | 9.53 | 107.40 | 12.70 |
406.4 | 16 | 400 | 41.56 | 4.19 | 47.34 | 4.78 | 93.27 | 9.53 | 123.31 | 12.70 |
457 | 18 | 450 | 46.79 | 4.19 | 53.31 | 4.78 | 105.17 | 9.53 | 139.16 | 12.70 |
508 | 20 | 500 | 59.32 | 4.78 | 68.65 | 5.54 | 117.15 | 9.53 | 155.13 | 12.70 |
559 | 22 | 550 | 65.33 | 4.78 | 75.62 | 5.54 | ||||
610 | 24 | 600 | 82.58 | 5.54 | 94.53 | 6.35 | 141.12 | 9.53 | 187.07 | 12.70 |
660 | 26 | 650 | ||||||||
711 | 28 | 700 | ||||||||
762 | 30 | 750 | 118.34 | 6.35 | 147.29 | 7.92 |
V | Mn | Si | S | Cb | C | P | Mo | Ni | Cr | Cu | Ti |
---|---|---|---|---|---|---|---|---|---|---|---|
0.10 | 1.00-1.45 | 0.15-0.40 | 0.03 | 0.06 | 0.20 | 0.01 | 0.25 | 0.50 | 0.30 | 0.35 | 0.05 |
Tensile Properties | (0.2%Offset) Yield Properties | Elongation |
---|---|---|
515-690 | 415 | 28 % |
Product | Wall Thickness | Size | Welded | Seamless |
---|---|---|---|---|
Tee | SCH10S~XXS | 1/2″-24″ | √ | √ |
SCH5S~80S/XS | 8″-104″ | √ | ||
Cap | SCH10S~SCH160 | 1/2″-80″ | √ | |
Elbow | SCH10S~XXS | 1/2″-24″ | √ | √ |
SCH5S~80S/XS | 8″-104″ | √ | ||
Reducer | SCH10S~XXS | 1/2″-24″ | √ | √ |
SCH5S~80S/XS | 8″-104″ | √ | ||
Lap Joint Stub End | SCH5S~80S/XS | 1/2″-24″ | √ | √ |
SCH5S~80S/XS | 8″-80″ | √ |
W.T. (in) (mm) |
Pipe SCH | Pipe Size (inches) |
Temperature (oF) (deg C) | O.D. (in) (mm) |
||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
100 | 200 | 300 | 400 | 500 | 600 | 650 | 700 | 750 | ||||
Allowable Stress (psi) (kPa) | ||||||||||||
16700 | 16700 | 16700 | 15500 | 14400 | 13500 | 13200 | 12900 | 12600 | ||||
0.145 | 40 | 1 1/2" | 1629 | 1629 | 1629 | 1512 | 1404 | 1317 | 1287 | 1258 | 1229 | 1.900 |
0.200 | 80 | 2303 | 2303 | 2303 | 2138 | 1986 | 1862 | 1821 | 1779 | 1738 | 1.900 | |
0.281 | 160 | 3362 | 3362 | 3362 | 3120 | 2899 | 2717 | 2657 | 2597 | 2536 | 1.900 | |
0.133 | 40 | 1" | 2205 | 2205 | 2205 | 2047 | 1902 | 1783 | 1743 | 1703 | 1664 | 1.315 |
0.179 | 80 | 3061 | 3061 | 3061 | 2841 | 2640 | 2475 | 2420 | 2365 | 2310 | 1.315 | |
0.250 | 160 | 4493 | 4493 | 4493 | 4170 | 3874 | 3632 | 3552 | 3471 | 3390 | 1.315 | |
0.154 | 40 | 2" | 1371 | 1371 | 1371 | 1272 | 1182 | 1108 | 1083 | 1059 | 1034 | 2.375 |
0.218 | 80 | 1985 | 1985 | 1985 | 1843 | 1712 | 1605 | 1569 | 1534 | 1498 | 2.375 | |
0.344 | 160 | 3283 | 3283 | 3283 | 3047 | 2831 | 2654 | 2595 | 2536 | 2477 | 2.375 | |
0.237 | 40 | 4" | 1102 | 1102 | 1102 | 1023 | 950 | 891 | 871 | 851 | 831 | 4.500 |
0.337 | 80 | 1596 | 1596 | 1596 | 1482 | 1377 | 1291 | 1262 | 1233 | 1204 | 4.500 | |
0.531 | 160 | 2611 | 2611 | 2611 | 2424 | 2552 | 2111 | 2064 | 2017 | 1970 | 4.500 | |
0.216 | 40 | 3" | 1301 | 1301 | 1301 | 1208 | 1122 | 1052 | 1028 | 1005 | 982 | 3.500 |
0.300 | 80 | 1844 | 1844 | 1844 | 1712 | 1590 | 1491 | 1458 | 1425 | 1391 | 3.500 | |
0.438 | 160 | 2787 | 2787 | 2787 | 2587 | 2403 | 2253 | 2203 | 2153 | 2103 | 3.500 | |
0.258 | 40 | 5" | 965 | 965 | 965 | 896 | 832 | 780 | 763 | 746 | 728 | 5.563 |
0.375 | 80 | 1428 | 1428 | 1428 | 1325 | 1231 | 1154 | 1129 | 1103 | 1077 | 5.563 | |
0.625 | 160 | 2474 | 2474 | 2474 | 2296 | 2133 | 2000 | 1955 | 1911 | 1866 | 5.563 | |
0.322 | 40 | 8" | 771 | 771 | 771 | 716 | 665 | 623 | 610 | 596 | 582 | 8.625 |
0.500 | 80 | 1218 | 1218 | 1218 | 1131 | 1050 | 985 | 963 | 941 | 919 | 8.625 | |
0.906 | 160 | 2298 | 2298 | 2298 | 2133 | 1982 | 1858 | 1817 | 1775 | 1734 | 8.625 | |
0.280 | 40 | 6" | 877 | 877 | 877 | 814 | 756 | 709 | 693 | 677 | 661 | 6.625 |
0.432 | 80 | 1379 | 1379 | 1379 | 1280 | 1189 | 1115 | 1090 | 1065 | 1040 | 6.625 | |
0.719 | 160 | 2382 | 2382 | 2382 | 2211 | 2054 | 1925 | 1883 | 1840 | 1797 | 6.625 | |
0.365 | 40 | 10" | 699 | 699 | 699 | 649 | 603 | 565 | 553 | 540 | 528 | 10.750 |
0.594 | 80 | 1159 | 1159 | 1159 | 1075 | 999 | 937 | 916 | 895 | 874 | 10.750 | |
1.125 | 160 | 2289 | 2289 | 2289 | 2124 | 1974 | 1850 | 1809 | 1768 | 1727 | 10.750 |
Dimensions in mm | Nominal pipe size | Weight | Schedule | ||
---|---|---|---|---|---|
D | E | in.0 | kg/pce | t | |
609.06 | 266.07 | 24 | 34.0470 | 10s | 6.035 |
26.07 26.07 26.07 |
25.04 25.04 25.04 |
3/4 | 0.0050 0.0060 0.0060 |
10s 40s 80s |
2.011 2.087 3.091 |
21.03 21.03 21.03 |
25.04 25.04 25.04 |
1/2 | 0.0040 0.0050 0.0050 |
10s 40s 80s |
2.011 2.077 3.073 |
33.04 33.04 33.04 |
38.01 38.01 38.01 |
1 | 0.0090 0.0130 0.0130 |
10s 40s 80s |
2.077 3.038 4.055 |
48.03 48.03 48.03 |
38.01 38.01 38.01 |
1½ | 0.0140 0.0230 0.0240 |
10s 40s 80s |
2.077 3.068 5.008 |
42.02 42.02 42.02 |
38.01 38.01 38.01 |
1¼ | 0.0130 0.0170 0.0180 |
10s 40s 80s |
2.077 3.056 4.085 |
60.03 60.03 60.03 |
38.01 38.01 38.01 |
2 | 0.0170 0.0270 0.0340 |
10s 40s 80s |
2.077 3.091 5.054 |
88.09 88.09 88.09 |
50.08 50.08 50.08 |
3 | 0.0400 0.0710 0.0850 |
10s 40s 80s |
3.005 5.049 7.062 |
73.00 73.00 73.00 |
38.01 38.01 38.01 |
2½ | 0.0250 0.0450 0.0510 |
10s 40s 80s |
3.005 5.016 7.001 |
114.03 114.03 114.03 |
63.05 63.05 63.05 |
4 | 0.0650 1.0220 1.0610 |
10s 40s 80s |
3.005 6.002 8.056 |
168.03 168.03 168.03 |
88.09 88.09 88.09 |
6 | 1.0360 3.0230 4.0540 |
10s 40s 80s |
3.040 7.011 10.097 |
141.03 141.03 141.03 |
76.02 76.02 76.02 |
5 | 1.0020 1.0910 2.0550 |
10s 40s 80s |
3.040 6.055 9.053 |
219.01 219.01 |
101.06 101.06 |
8 | 2.0490 5.0670 |
10s 40s |
3.076 8.018 |
323.09 323.09 |
152.04 152.04 |
12 | 6.0530 13.0060 |
10s 40s |
4.057 9.053 |
273.01 273.01 |
127.00 127.00 |
10 | 4.0900 9.0210 |
10s 40s |
4.019 9.027 |
355.06 355.06 |
165.01 165.01 |
14 | 8.0160 15.0900 |
10s STD |
4.078 9.053 |
457.02 | 203.02 | 18 | 17.0960 | 10s | 4.078 |
406.04 406.04 |
177.08 177.08 |
16 | 14.0510 20.0000 |
10s STD |
4.078 9.053 |
508.00 | 228.06 | 20 | 27.0220 | 10s | 5.054 |
