304 Stainless Steel Socket Weld Fittings

Leading Manufacturer of ASME SA182 F304 Socket Weld Elbow in India, Ask for latest price list of 304 SS Threaded Tee

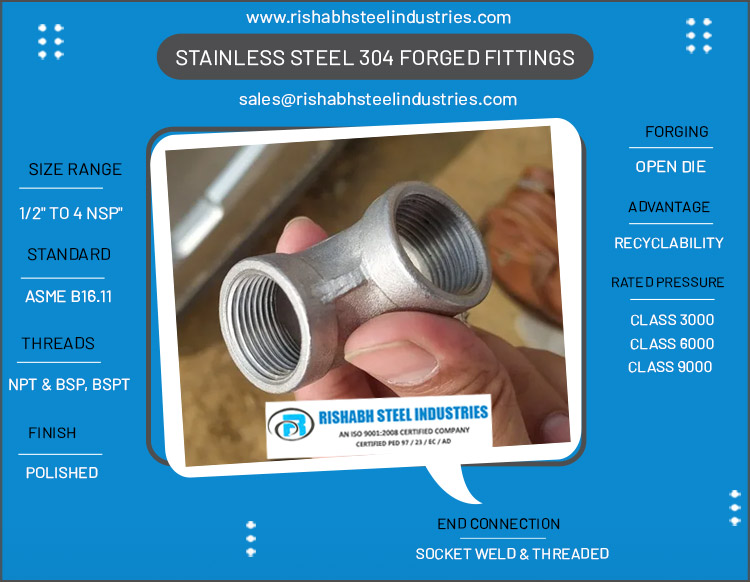

The 304 grade fittings covers austenitic rolled alloy steel grade. Stainless Steel 304 Forged Fittings are designed with a superior chemical composition of 18/8 chromium and nickel content. This allows the fittings to work in pressurized conditions and influence their characteristics across harsh conditions. The Stainless Steel 304 Forged Fittings possess enhanced mechanical properties with outstanding fatigue strength. These fittings work well in reducing environments where corrosive media is of the highest degree. 304 Stainless Steel Forged Fittings can be produced in a hot or cold rolling process. These fittings have enhanced surface porosity and have excellent grain structure. They possess enhanced durability for long periods due to their outstanding quality.

The ASTM A182 F304 Forged Fittings are rolled steel components that are designed to work in elevated temperature service. These fittings showcase good hardness and securely seal different components. ASTM A182 F304 Forged Fittings are produced as heavy blows are dealt on the grade to precisely shape the module. These fittings are generally designed in threaded and socket weld configurations. The Stainless Steel 304 Threaded Fittings are robust fittings that allow the fitting to be easily installed and later dismantled due to the threads on its surface. The threaded grades are preferred in applications where stress on the system is low. The versatile SS 304 Socket Weld Fittings are seen in small piping diameters for pressurized fluid. These fittings are a pipe attachment detail wherein a pipe, or tube is inserted in the recessed socket and welded following a fillet process. The SA 182 F304 Fittings are quality-assured and produced under the watchful eye of our renowned customers.

We are one of the biggest SS 304 Socket Weld Fittings Supplier in Mumbai, Check available sizes of ASTM A182 F304 Threaded Union

Specifications	ASTM/ ASME A182 / SA182
Size	1/8” up to 4” NB (Screwed-Threaded & Socketweld)
Dimensions	ASME 16.11, BS 3799, MSS SP-83, 97, 79, 95
Type	Socketweld and Screwed-Threaded Fittings
Class	3000 LBS, 9000 LBS, 2000 LBS, 6000 LBS

Description	Price Per Kg In Singapore	Price Per Kg In UAE	Price Per Kg In USD	Price Per Kg In Malaysia
1/4"-4" 3000# MSS SP-83 ASTM A182 F304 stainless steel FNPT union forged fittings	SGD SGD 54.80	Dirham 146.80	US $ 40.00	MYR 175.60
1/2" BSP female thread coupling F304/ 304H stainless steel pipe fitting	SGD SGD 0.26	Dirham 0.70	US $ 0.19	MYR 0.83
MSS SP97 1/4" -2 1/2" ASTM 182 F304 Elbolet forged stainless steel pipe fittings	SGD SGD 38.36	Dirham 102.76	US $ 28.00	MYR 122.92
2" Sch160 ASTM A182 F304 ASME B16.9 Thread double joint coupling forged pipe fittings	SGD SGD 6.52	Dirham 17.47	US $ 4.76	MYR 20.90
3000lb A182 F304 forged stainless steel socket weld elbow pipe fitting	SGD SGD 27.40	Dirham 73.40	US $ 20.00	MYR 87.80

ASTM A182 Gr F304 Fittings

ASTM A182 Grade F304 Socket Weld Lateral Tee

Stainless Steel 304 Socket Weld Coupling

ASTM A182 Grade F304H Socket Weld Caps

ASTM A182 Gr F304H Socket Weld Cross

304 Stainless Steel Socket Weld Tee

SA 182 Gr F304H Socket Weld Elbow

ASTM A182 Gr F304 Socket Weld Union

ASTM A182 Gr F304L Fittings

ASME SA182 F304 Threaded Elbow

ASTM A182 F304L Threaded Tee

AISI 304 Threaded Cross

ASTM A182 F304 Threaded Bends

SS 304H Threaded Coupling

SS 304 Threaded Caps

SUS 304 Threaded Union

SA 182 Gr F304 Hexagon Bushing

ASTM A182 Grade F304 Square Plugs

SA 182 Gr F304L Hexagon Plugs

Out-Let Pipe NPS	Reducing Way
	C		D		F		J (Min)		E (Min)
	6000	3000	3000	6000	6000	3000	3000	6000	6000	3000
1/8”		13.7	10.8			22.0	9.7			10.4
1/4”		13.7	14.2			22.0	9.7			10.4
3/8”		19.1	17.6			25.9	9.7			12.7
1/2”	16.6	21.3	21.8	21.8	38.0	31.4	9.7	9.7	23.9	16.0
3/4”	21.2	26.7	27.2	27.2	44.0	37.1	12.7	12.7	25.4	16.0
1”	27.0	33.4	33.9	33.9	57.0	45.5	12.7	12.7	28.7	22.4
1-1/4”	35.8	42.2	42.7	42.7	64.0	57.0	12.7	12.7	30.2	22.4
1-1/2”	41.2	48.3	48.8	48.8	76.0	64.0	12.7	12.7	31.8	23.9
2”	51.6	60.3	61.2	61.2	92.0	76.0	15.8	15.8	36.6	23.9
2-1/2”		73.2	73.9			92.0	15.8			25.4
3”		88.9	89.8			109.2	15.8			30.2
4”		114.3	115.2			140.0	19.1			30.2

Out-Let Pipe NPS	Straight Way
	C	D	F	J (Min)	E (Min)
	3000
1/4”	11.5	14.2	22.0	9.7	10.4
1/8”
3/8”	14.5	17.6	25.9	9.7	12.7
3/4”	21.5	27.2	37.1	12.7	16.0
1/2”	16.5	21.8	31.4	9.7	16.0
1”	27.2	33.9	45.5	12.7	22.4
1-1/2”	42.0	48.8	64.0	12.7	23.9
1-1/4”	36.0	42.7	57.0	12.7	22.4
2”	53.0	61.2	76.0	15.8	23.9
3”	80.0	89.8	109.2	15.8	30.2
2-1/2”	65.0	73.9	92.0	15.8	25.4
4”	104.0	115.2	140.0	19.1	30.2

L			Nom. Pipe Size	Plain End Weight (kg/m)
Short Nipple	Close Nipple	Long Nipple		Sch40/Sth	XXS	Sch160	Sch80/XS
1-1/2	3/4	2~12	1/8”	0.37			0.47
1-1/2	7/8	2~12	1/4”	0.63			0.80
1-1/2	1	2~12	3/8”	0.84			1.10
1-1/2	1-1/8	2~12	1/2”	1.27	2.55	1.95	1.62
2	1-3/8	2-1/2~12	3/4”	1.69	3.64	2.90	2.20
2	1-1/2	2-1/2~12	1”	2.50	5.45	4.24	3.24
2-1/2	1-5/8	3~12	1-1/4”	3.39	7.77	5.61	4.47
2-1/2	1-3/4	3~12	1-1/2”	4.05	9.55	7.25	5.41
2-1/2	2	3~12	2”	5.44	13.44	11.11	7.48
3	2-1/2	3-1/2~12	2-1/2”	8.63	20.39	14.92	11.41
3	2-5/8	3-1/2~12	3”	11.29	27.68	21.35	15.27
4	2-3/4	4-1/2~12	3-1/2”	13.57			18.64
4	2-7/8	4-1/2~12	4”	16.08	41.03	33.54	22.32
4-1/2	3	5~12	5”	21.77	57.43	49.12	30.97
4-1/2	3-1/8	5~12	6”	28.26	79.22	67.57	42.56

Size Product		3/4”	1/4”	1/8”	3/8”	1/2”	1”	2-1/2”	1-1/2”	3”	1-1/4”	2”	4”
90 Elbow	2000	0.35	0.08	0.10	0.13	0.25	0.53	3.14	1.06	4.81	0.82	1.70	10.21
	3000	0.69	0.14	0.10	0.29	0.43	1.14	5.99	2.63	8.88	1.42	2.92	14.85
	6000	1.31	0.33	0.17	0.45	0.80	1.61	9.88	3.79	17.73	2.93	7.31	15.76
45 Elbow	2000	0.27	0.08	0.09	0.10	0.20	0.41	3.46	0.82	5.44	0.68	1.41	8.96
	3000	0.56	0.12	0.09	0.24	0.34	0.94	3.71	2.05	5.97	1.03	2.23	8.96
	6000	1.07	0.27	0.11	0.39	0.63	1.27	7.01	2.54	14.16	2.24	4.37	11.36
Tee	2000	0.43	0.12	0.13	0.17	0.31	0.69	4.11	1.39	6.12	1.07	2.16	14.74
	3000	0.92	0.20	0.13	0.38	0.56	1.49	6.99	3.27	10.19	1.76	3.53	19.13
	6000	1.65	0.45	0.20	0.63	0.98	2.17	13.11	4.71	21.70	3.74	7.88	18.53
Cross	2000	0.54	0.14	0.17	0.21	0.39	0.83	5.26	1.75	7.58	1.26	2.65	16.35
	3000	1.06	0.26	0.17	0.44	0.72	1.79	8.51	3.93	12.45	2.13	4.27	21.93
Full Coupling	3000	0.19	0.04	0.05	0.06	0.13	0.45	2.29	1.07	3.38	0.81	1.40	6.28
	6000	0.50	0.13	0.08	0.20	0.34	0.87	4.20	1.94	6.10	1.09	2.87	10.04
Half Coupling	3000	0.10	0.02	0.02	0.03	0.06	0.23	1.13	0.54	1.68	0.34	0.70	3.11

Buy directly from 304 Stainless Steel Forged Bushing/ Hex Nipple Manufacturer in India, Check Sizes and Thickness of UNS S30400 Full/ Half Coupling

F	Outlet Pipe	C
		Sch160 - XXS	STD - XS
21.3	1/2”	13.8	23.8
26.7	3/4”	18.9	30.2
33.4	1”	24.3	36.5
42.2	1-1/4”	32.5	44.5
48.3	1-1/2”	38.1	50.8
60.3	2”	49.2	65.1

BS	UNS	STANDARD	AFNOR	JIS	GOST	WERKSTOFF NR.	EN
304S31	S30400	SS 304	Z7CN18‐09	SUS 304	08Х18Н10	1.4301	X5CrNi18-10
3304S11	S30403	SS 304L	Z3CN18‐10	SUS 304L	03Х18Н11	1.4306 / 1.4307	X2CrNi18-9 / X2CrNi19-11
-	S30409	SS 304H	-	-	-	1.4948	-

Grade	N	P	Mn	C	Mo	Si	S	Cr	Ni
SS 304	-	0.045 max	2.0 max	0.08 max	-	0.75 max	0.030 max	18 – 20	8 – 11
SS 304H	-	0.045 max	2.0 max	0.10 max	-	0.75 max	0.03 max	18 – 20	8 – 10.5

Yield Properties (0.2%Offset)	Melting Point	Elongational	Density	Tensile Properties
Psi – 30000 , MPa – 205	1400 °C (2550 °F)	35 %	8.0 g/cm3	Psi – 75000 , MPa – 515

Body Wall Thickness G			DN	Depth of  Socket Min. J	Center to Bottom of Socket-A						Socket Bore Dia. B	Bore Dia. Of Fitting D			Nom. Pipe Size	Socket Wall Thickness (2) C
Class Designation					90° Elbows Tees, Crosses			45° Elbows								Class Designation
6000	3000	9000			Class Designation			Class Designation				Class Designation				3000		6000		9000
Min.	Min.	Min.			6000	3000	9000	9000	3000	6000		3000	9000	6000		Min	Ave.	Min	Ave.	Ave.	Min
3.15	2.41		6	9.5	11.0	11.0			8.0	8.0	10.8	6.9		4.0	1/8”	3.18	3.18	3.43	3.96
3.68	3.02		8	9.5	13.5	11.0			8.0	8.0	14.2	9.3		6.4	1/4”	3.30	3.78	4.01	4.60
4.01	3.20		10	9.5	15.5	13.5			8.0	11.0	17.6	12.6		9.2	3/8”	3.50	4.01	4.37	5.03
4.78	3.73	7.47	15	9.5	19.0	15.5	25.5	15.5	11.0	12.5	21.8	15.8	6.4	11.8	1/2”	4.09	4.67	5.18	5.97	9.35	8.18
5.56	3.91	7.82	20	12.5	22.5	19.0	28.5	19.0	13.0	14.0	27.2	21.0	11.1	15.6	3/4”	4.27	4.90	6.04	6.96	9.78	8.56
6.35	4.55	9.09	25	12.5	27.0	22.5	32.0	20.5	14.0	17.5	33.9	26.7	15.2	20.7	1”	4.98	5.69	6.93	7.92	11.38	9.96
6.35	4.85	9.70	32	12.5	32.0	27.0	35.0	22.5	17.5	20.5	42.7	35.1	22.8	29.5	1-1/4”	5.28	6.07	6.93	7.92	12.14	10.62
7.14	5.08	10.15	40	12.5	38.0	32.0	38.0	25.5	20.5	25.5	48.8	40.9	28.0	34.0	1-1/2”	5.54	6.35	7.80	8.92	12.70	11.12
8.74	5.54	11.07	50	16.0	41.0	38.0	54.0	28.5	25.5	28.5	61.2	52.5	38.2	42.9	2”	6.04	6.93	9.50	10.92	13.84	12.12
	7.01		65	16.0		41.0			28.5		73.9	62.7			2-1/2”	7.67	8.76
	7.62		80	16.0		57.0			32.0		89.8	78.0			3”	8.30	9.52
	8.56		100	19.0		66.5			41.0		115.2	102.3			4”	9.35	10.69

Purchase SS 304 Bushing from Stockist in specific design, We offer custom size of SA 182 F304 Threaded Fittings for leak-free connections.

		Nominal diameter
Item	Type of pipe Fitting	DN	6 to 8	10 to 20	25 to 50	65 to 80
		NPS	1/8 to 1/4	3/8 to 3/4	1 to 2	2-1/2 to 3
Concentricity of bore (X)	All types of Pipe Fitting	± 0.8
Coin cadence of axes (Y)		1 / 200 Max
Bore diameter of fitting (b)	Boss, Hex Nipple	± 0.4				± 0.8
Bottom of socket to opposite face	Boss	± 0.8		± 1.5	± 2.0	± 2.5

			T (Min)				Nom. Pipe Size
B1	D	B	Schedule 80 (XS)	Schedule 40 (Sth)	XXS	Schedule 160		H
9.5	10.3	34	2.41	1.73			1/8”	14
11.0	13.7	34	3.02	2.24			1/4”	14
12.5	17.1	57	3.20	2.31			3/8”	14
14.5	21.3	64	3.73	2.77	7.47	4.78	1/2”	14
16.0	26.7	70	3.91	2.87	7.82	5.56	3/4”	18
19.0	33.4	76	4.56	3.38	9.09	6.35	1”	18
20.5	42.2	83	4.85	3.56	9.70	6.35	1-1/4”	18
20.5	48.3	89	5.05	3.68	10.15	7.14	1-1/2”	18
22.0	60.3	102	5.54	3.91	11.07	8.74	2”	20
27.0	73.0	127	7.01	5.16	14.02	9.53	2-1/2”	20
28.5	88.9	152	7.60	5.49	15.24	11.13	3”	20
32.0	114.3	178	8.08	6.35	17.12	13.49	4”	20
