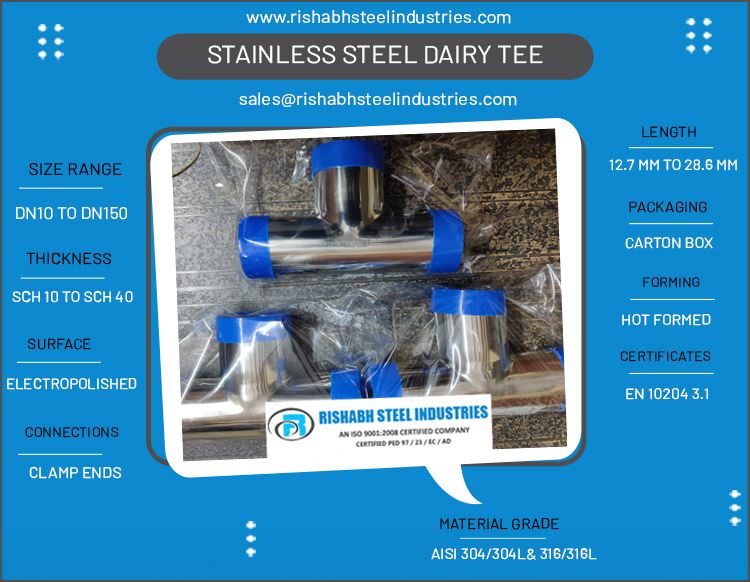

What Is Stainless Steel Dairy Tee?
Stainless steel sanitary tee known for the high finishing, fine polishing and ease of use. Stainless steel pharma tee are t shaped sanitary fittings used in the branch pipe of the main pipeline. SS sanitary reducing tee connect a branch line to a vertical drain line or vent line. SS dairy 45 degree tee can be made with a same diameter and different diameters to connect to pipes with different fitting sizes. SS dairy tee allow for the assembly of different piping grades. The stainless steel sanitary lateral tee offer better connection and the continuous metal structure gives them higher strength in the piping industry. Rishabh Steel Industries is one of the leading stainless steel dairy tee manufacturer in India.
Table of Content
- Stainless Steel Sanitary Tee Application
- Stainless Steel Dairy Tee Specification
- SS 304 Dairy Tee Price List
- Stainless Steel 316 Dairy Tee Price List
- Suitable Environment for SS Pharma Tee
- Advantage of Using SS Hygienic Tee
- Stainless Steel Dairy Equal Tee Weight Chart
- Stainless Steel Sanitary Reducing Tee Weight Chart
- Types of Stainless Steel Dairy Tee
SS Sanitary Tee Manufacturer in India for Pharmaceutical Industry
Available Sizes :
- DN10 to DN150
- 1/2" To 12"
- Contact stainless steel dairy tee manufacturer in India for above 14"
SS Dairy Tee Grade :
- AISI 316L
- AISI 304L
- AISI 316LMo
- AISI 304
- AISI 316
International Standard :
- EN 10272
- BS 4825
- BS 4825
- ISO 2037
- DIN 11850
- SMS
- DIN
- ASME-BPE
- ISO
- ISO 2037
- EN 10357-A
Length :
- 12.7 mm To 28.6 mm
DIN Standard :
- DIN 11851
Packaging Method :
- Carton Box
- Wooden Cases
- Wooden Pallet
Applicable Fluids :
- Milk
Forming Way :
- Hot formed
- Cold formed
Sealing :
- EPDM
- HNBR
- FKM
Electropolishing Specification :
- SF1 : 20 µ-in 0.51 µm
- SF4 : 15 µ-in 0.38 µm
- SF3 : 30 µ-in 0.76 µm
- SF2 : 25 µ-in 0.64 µm
- SF5 20 µ-in 0.51 µm
- SF6 : 25 µ-in 0.64 µm
Other Name :
- Sanitary tee
- Pharma tee
- Hygienic tee
- Milk Tank tee
Ends Types :
- Plain Bevel
- Bevelled
Service :
- NACE MR0103
- NACE MR0175
- NACE TM-0284
Surface Treatment :
- Semi-Bright Finish
- Mirror Finish
- Mill Finish
- Biotech Finish
- Fine Satin Finish
- Dairy Finish
Marking Details :
- Grade & Material
- Manufacturers Name
- Standard & Heat No.
- Size & Schedule
Welding :
- Fusion Welding
Test Certificates :
- EN 10204 3.1
- EN 10204 3.2
Installations :
- Breweries
- Dairies
- Biotech
- Pharmaceutical
- Food Processing
- Beverage
Testing Requirements :
- Hyrdrostatic Test
- Chemical Analysis
- PMI Test
- Hardness Test
- Mechanical Testing
Logistics :
- By Air
- By Sea
- Oman = 5 day
- Bahrain = 9 day
- Kuwait = 10 days
- Singapore = 8 days
- USA = 40-60 day
- Azerbaijan = 30-45 day
- Poland = 45 day
- Thailand = 7 day
Max. Size :
- 14"
Stainless Steel Sanitary Reducing Tee Supplier in Mumbai, See Price List
-
Type: Equal Tee
-
Grade : ASTM A270 SS 304
-
Machined : CNC
-
Finish : Both Side Electropolished
| Size | Price In US (Dollar) Per Piece | Price In Malaysian Ringgit (Malaysia) Per Piece | Price In UAE (AED) Per Piece |
|---|---|---|---|
| DN15 | US $4.94 | MYR 21.98 | AED 18.14 |
| DN20 | US $5.29 | MYR 23.54 | AED 19.43 |
| DN25 | US $5.92 | MYR 26.34 | AED 21.74 |
| DN32 | US $7.18 | MYR 31.95 | AED 26.37 |
| DN40 | US $8.25 | MYR 36.71 | AED 30.30 |
| DN50 | US $12.00 | MYR 53.41 | AED 44.08 |
| DN65 | US $18.00 | MYR 80.11 | AED 66.11 |
| DN80 | US $25.50 | MYR 113.49 | AED 93.66 |
| DN100 | US $47.55 | MYR 211.63 | AED 174.65 |
-
Type: Equal Tee
-
Grade : ASTM A270 SS 316
-
Machined : CNC
-
Finish : Both Side Electropolished
| Size | Price In US (Dollar) Per Piece | Price In Singapore Dollar (Singapore) Per Piece | Price In Kuwaiti Dinar (Kuwait) Per Piece |
|---|---|---|---|
| DN15 | US $5.98 | SGD 8.06 | KWD 1.84 |
| DN20 | US $6.17 | SGD 8.32 | KWD 1.90 |
| DN25 | US $6.92 | SGD 9.33 | KWD 2.13 |
| DN32 | US $9.31 | SGD 12.55 | KWD 2.87 |
| DN40 | US $9.99 | SGD 13.47 | KWD 3.08 |
| DN50 | US $15.48 | SGD 20.87 | KWD 4.77 |
| DN65 | US $6.89 | SGD 30.16 | KWD 66.11 |
| DN80 | US $8.93 | SGD 39.11 | KWD 93.66 |
| DN100 | US $60.88 | SGD 82.08 | KWD 18.75 |
Stainless Steel Pharma Tee Available With Excellent Corrosion Resistance
| Suitable Environment | WP Grades |
|---|---|
| Sulphuric acid |
|
| Organic acids |
|
| Corrosion-resistant service |
|
| Chlorine acid, hydrogen chlorine and hydrochloric acid |
|
| Caustic Soda |
|
View Advantage of Using SS Dairy Equal Tee in Biotechnology
-
Corrosion Resistance
-
Easy to Clean
-
Non-Toxic and Safe
-
Improved Flow Efficiency
-
Long Lifespan
-
Durability and Strength
Also Check Stainless Steel Hygienic Tee and SS Sanitary Lateral Tee Weight Chart
| Size | Weight (KG) |
|---|---|
| DN15 | 0.45 |
| DN20 | 0.60 |
| DN25 | 0.80 |
| DN32 | 1.00 |
| DN40 | 1.20 |
| DN50 | 1.50 |
| DN65 | 2.00 |
| DN80 | 2.70 |
| DN100 | 3.40 |
| DN125 | 4.50 |
| DN150 | 5.70 |
| Size | Weight (KG) |
|---|---|
| 1/2" x 1/4" | 0.35 |
| 3/4" x 1/2" | 0.45 |
| 1" x 3/4" | 0.60 |
| 1 1/4" x 1" | 0.80 |
| 1 1/2" x 1" | 1.00 |
| 1 1/2" x 1 1/4" | 1.10 |
| 2" x 1 1/2" | 1.50 |
| 2 1/2" x 2" | 1.90 |
| 3" x 2" | 2.40 |
| 3" x 2 1/2" | 2.70 |
| 4" x 3" | 3.30 |
| 4" x 2 1/2" | 3.60 |
SS Sanitary Tee
Stainless Steel Pharma Tee
Stainless Steel Hygienic Tee
Stainless Steel Dairy Equal Tee
SS Dairy 45 Degree Tee
Stainless Steel Sanitary Reducing Tee
Stainless Steel Sanitary Lateral Tee
SS Sanitary Cross Tee

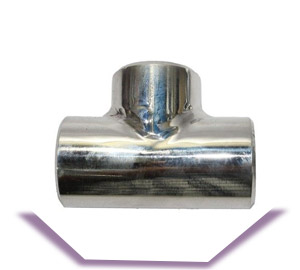

Stainless Steel Straight Tee
