What Is Stainless Steel Dairy Reducer?
These stainless steel sanitary reducing cross have excellent surface porosity and possess a finer grain structure. SS sanitary cross fitting are very reliable due to their uniform structure and composition. The 4 way cross fitting design of this cross fitting allows it to connect four pipes at right angles, creating a central point for fluid distribution or diversion. These stainless steel sanitary cross fitting have a thickness between 1MM to 5MM. These SS dairy four way cross are easy to access, allowing room for the inspection, modification, and repair. Our company is a sanitary cross fitting manufacturers in india who have good connections with logistical supply chains, thereby delivering products to your doorstep within a short period..
Table of Content
- Sanitary Cross Fitting Specification
- Surface Finish of SS Dairy 4 Way Cross
- Thickness of Stainless Steel Sanitary Cross Fitting
- Purpose of SS Pharma 4 Way Cross

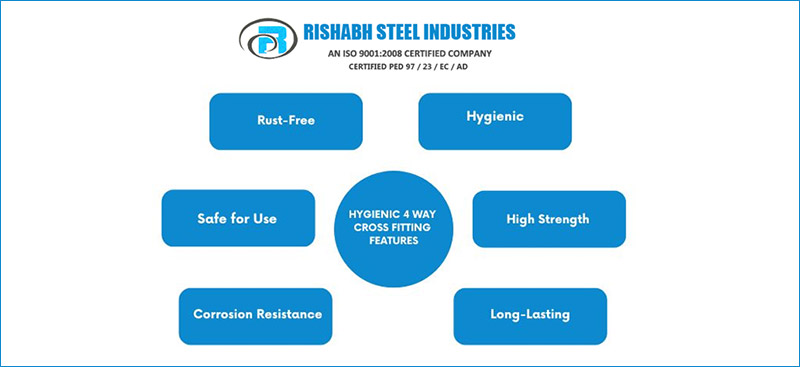

- Hygienic 4 Way Cross Fitting Features
- Sanitary Reducing Cross Weight Chart
- Sanitary Equal Cross Weight Chart
- Hardness of SS 304 Dairy Cross
- Types of Sanitary Cross Fitting
Check Dairy Four Way Cross Specifications
Size In Ready Stock :
- DN10 to DN150
- 1/2" To 12"
- Contact sanitary cross fitting manufacturers in india for above 14"
Grade :
- ASTM A270 304
- ASTM A270 304L
- ASTM A270 316
- ASTM A270 316L
- ASTM A270 316LMo
Manufacturing Standard :
- ISO
- ISO 2037
- EN 10272
- BS 4825
- DIN 11850
- SMS
- DIN
- ASME-BPE
- BS 4825
- ISO 2037
- EN 10357-A
Length :
- 12.7 mm To 28.6 mm
DIN Standard :
- DIN 11851
Available Packaging :
- Wooden Pallet
- Carton Box
- Wooden Cases
Applicable Fluids :
- Milk
Forming Process :
- Hot formed
- Cold formed
Sealing Material :
- FKM
- EPDM
- HNBR
Electropolishing :
- SF1 : 20 µ-in 0.51 µm
- SF4 : 15 µ-in 0.38 µm
- SF3 : 30 µ-in 0.76 µm
- SF2 : 25 µ-in 0.64 µm
- SF5 20 µ-in 0.51 µm
- SF6 : 25 µ-in 0.64 µm
Other Name :
- Sanitary cross
- Pharma cross
- Hygienic cross
- Milk Tank cross
Types of Ends :
- Bevelled
- Plain Bevel
Service :
- NACE TM-0284
- NACE MR0103
- NACE MR0175
Surface :
- Semi-Bright Finish
- Mirror Finish
- Fine Satin Finish
- Mill Finish
- Biotech Finish
- Dairy Finish
Marking Method :
- Size & Schedule
- Grade & Material
- Manufacturers Name
- Standard & Heat No.
Type of Welding :
- Fusion Welding
Test Certificates :
- EN 10204 3.1
- EN 10204 3.2
Installations :
- Food Processing
- Beverage
- Breweries
- Dairies
- Biotech
- Pharmaceutical
Testing & Inspection :
- Mechanical Testing
- Hyrdrostatic Test
- Chemical Analysis
- PMI Test
- Hardness Test
Logistics :
- By Air
- By Sea
- Nigeria = 30 day
- Germany = 20 day
- Poland = 45 days
- Thailand = 7 days
- Netherland = 30 day
- Singapore = 8 day
- Malaysia = 7 day
- Indonesia = 9 day
Max. Size :
- 14"
Select Your Finish in The Online Inventory of Stainless Steel Sanitary Cross Fitting
-
Mechanical Polish
-
Electro Polished
-
Non Electro Polished
-
Mirror Finish
Supplier of SS Dairy Four Way Cross That Offers 1.0MM To 5MM Thickness
Check Purpose and Features of SS 4 Way Cross Dairy Pipe Fitting
-
Fluid Direction and Distribution
-
Media Separation
-
Hygienic Standards
-
Resistance to Corrosion
-
Regulated Flow
-
Versatile Applications
Check Stainless Steel Sanitary Reducing Cross Weight Chart and Hardness in Rockwell & Brinell
| Size | Weight (KG) |
|---|---|
| 1" x 1" x 1" x 3/4" | 0.4 |
| 1-1/2" x 1-1/2" x 1-1/2" x 1" | 0.8 |
| 2" x 2" x 2" x 1-1/2" | 1.0 |
| 2-1/2" x 2-1/2" x 2-1/2" x 2" | 1.5 |
| 3" x 3" x 3" x 2-1/2" | 2.0 |
| 4" x 4" x 4" x 3" | 3.5 |
| 6" x 6" x 6" x 4" | 6.0 |
| Size | Weight (KG) |
|---|---|
| 1" x 1" x 1" x 1" | 0.5 |
| 1-1/2" x 1-1/2" x 1-1/2" x 1-1/2" | 0.9 |
| 2" x 2" x 2" x 2" | 1.4 |
| 2-1/2" x 2-1/2" x 2-1/2" x 2-1/2" | 2.1 |
| 3" x 3" x 3" x 3" | 3.0 |
| 4" x 4" x 4" x 4" | 4.8 |
| 6" x 6" x 6" x 6" | 9.5 |
| 8" x 8" x 8" x 8" | 15.0 |
| 10" x 10" x 10" x 10" | 22.0 |
| Rockwell B | Brinell |
|---|---|
| 92 (HR B) Max | 201 (HB) Max |
Stainless Steel Dairy 4 Way Cross
SS Sanitary Reducing Cross
Stainless Sanitary Equal Cross
