stainless steel 316L flanges

A 316L flange is a low-carbon austenitic grade steel used to produce strong flanges. The Stainless Steel 316L Flanges are designed with a superior chemical content of chromium, nickel, and molybdenum with other constituting alloys. These flanges are used to connect piping equipment efficiently, allowing room for repair and maintenance. The 316L Stainless Steel Flanges provide stability to different applications as there is a movement of media in the system. These flanges have enhanced resistance to pitting by acids and general corrosion. ASTM A182 F316L is a forged alloy grade that has enhanced strength and load-carrying capacity. They have a lower surface porosity with a good grain structure.

The SS 316L Blind Flange is manufactured without a protruding hub or a face. These flanges are utilized to terminate the flow of media across stress-induced conditions. An EN 1.4404 Blind Flange can be welded but is generally bolted in place allowing room for repair and maintenance in the system. The ASTM A182 F316L Slip On Flange has a low profile grade that is slid on the piping equipment and is welded in place using fillet welds. These flanges are preferred by engineers as they are cheap, but they are seen in applications where stress on the system is less. A SA 182 Gr F316L Weld Neck Flange is seen in elevated pressure and high temperatures. These flanges possess superior strength due to the long tapered face giving them enhanced stability in treacherous conditions. The 316L Stainless Steel Lap Joint Flange has a two-component assembly that has a stub end with a ring face used to align it in place. The flange type is utilized in connecting flanges that are large and difficult to adjust. Stainless Steel 316L Socket Weld Flange is typically seen in smaller sizes of low-pressure pipe grades. The flange has a recessed area that allows it to be attached and welded using a single fillet weld.

Purchase 316L Stainless Steel Flanges at factory price, Held wide stock of SA 182 Gr F316L Threaded Flange in ASME B16.5 Standard

Stainless Steel 316L Flanges Specification

10-12% price difference if you buy directly from Stainless Steel 316L Flanges manufacturers

Specifications List ASTM / ASME A182 / SA182
ASTM Standards B 16.47 Series A & B, DIN, ANSI/ASME B16.48, B16.5, BS 10, BS4504, EN-1092
Size Chart From 1/2″to 48″ (15 - 1200NB)
Class / Pressure Rating PN10, 150#, 600#, 2500#, PN16, 300#, PN6, PN64, PN40, 900#, PN25, 1500#
Standard Flange BS, EN, DIN, ASME, ANSI

A182 F316L Flange Price List

A leading supplier of industrial A182 F316L Plate Flange, we offer a wide range of cost effective SS 316L Slip On Flange

Description Price Per Kg In Singapore Price Per Kg In UAE Price Per Kg In USD Price Per Kg In Malaysia
600, XS/80S, FLANGES STAINLESS STEEL 4, SW RF, SA/ A182GR.316L SGD 10.62 UAE Dirham 27.73 US $7.67 MYR 33.63
3, WN RF, 600, STD/40S, FLANGES STAINLESS STEEL SA/ A182GR.316L SGD 7.40 UAE Dirham 19.32 US $5.34 MYR 23.43
4WN 150 RF STD/40S 125-250 FLANGES STAINLESS STEEL SA182 GR F316L SGD 9.34 UAE Dirham 24.39 US $6.75 MYR 29.58
DN 20, 300#SCH 40S, FLANGE STAINLESS STEEL GR SA182 F316L ANSI B16.5 WELD NECK RF SGD 8.57 UAE Dirham 22.37 US $6.19 MYR 27.13
600, XS/80S, FLANGES STAINLESS STEEL 3/4, SW RF, SA/ A182GR.316L SGD 10.48 UAE Dirham 27.35 US $7.57 MYR 33.17
4WN 300 RF STD/40S 125-250 FLANGES STAINLESS STEEL SA182 GR F316L SGD 8.17 UAE Dirham 21.34 US $5.90 MYR 25.88
6WN 300 RF STD/40S 125-250 FLANGES STAINLESS STEEL SA182 GR F316L SGD 8.78 UAE Dirham 22.94 US $6.34 MYR 27.82

ASTM A182 F316L Flanges Types

Stainless Steel 316L Weldo Flange

Stainless Steel 316L Weldo Flange

A182 F316L Socket Weld Flanges (SWRF)

A182 F316L Socket Weld Flanges (SWRF)

SS 316L Nipo flange

SS 316L Nipo flange

ASTM A182 F316L Puddle Flanges

ASTM A182 F316L Puddle Flanges

SS WERKSTOFF NR. 1.4404 Long Weld Neck Flanges

SS WERKSTOFF NR. 1.4404 Long Weld Neck Flanges

316L Stainless Steel Forged Flanges

316L Stainless Steel Forged Flanges

Stainless steel 316L Slip On Flanges (SORF)

Stainless steel 316L Slip On Flanges (SORF)

SS UNS S31603 Reducing Flanges

SS UNS S31603 Reducing Flanges

ASTM A182 SS F316L Threaded / Screwed Flanges

ASTM A182 SS F316L Threaded / Screwed Flanges

SS 316L Spade Flange

SS 316L Spade Flange

ASTM A182 Gr F316L Ring Spacer

ASTM A182 Gr F316L Ring Spacer

ASME SA182 SS 316L Plate Flanges

ASME SA182 SS 316L Plate Flanges

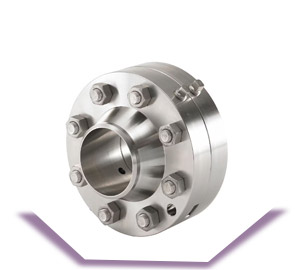

ASTM A182 F316L Orifice Flanges

ASTM A182 F316L Orifice Flanges

ANSI B16.5 SS 316L Male & Female Flanges

ANSI B16.5 SS 316L Male & Female Flanges

Stainless Steel 316L Weld Neck Flanges (WNRF)

Stainless Steel 316L Weld Neck Flanges (WNRF)

SS UNS S31603 Tongue & Groove Flanges

SS UNS S31603 Tongue & Groove Flanges

ASME SA182 F316L Ring Type Joint Flanges (RTJ)

ASME SA182 F316L Ring Type Joint Flanges (RTJ)

SS F316L Lap Joint Flanges

SS F316L Lap Joint Flanges

ASTM A182 316L SS Bleed Ring Flange

ASTM A182 316L SS Bleed Ring Flange

Werkstoff No 1.4435 SS Raised Face Flanges

Werkstoff No 1.4435 SS Raised Face Flanges

Stainless Steel ASTM A182 F316L Blind Flanges (BLRF)

Stainless Steel ASTM A182 F316L Blind Flanges (BLRF)

ASME SA182M Stainless Steel 316L Spectacle Blind Flanges

ASME SA182M Stainless Steel 316L Spectacle Blind Flanges

ASTM A182 Grade F316L High Hub Blind Flanges

ASTM A182 Grade F316L High Hub Blind Flanges

SA182 Gr F316L Square Flanges

SA182 Gr F316L Square Flanges

Tolerances Dimensions of ASTM A182 SS F316L Flange

Dimension Range Tolerance
in mm
General and Blind Flanges (For blind flange dimensions see pages 48-49)
≤ NPS 24 ±0.03 ±0.76
G (raised face diameter) ≥ NPS 26, with ±0.08 ±2.03
0.06in raised face
≥ NPS 26, with ±0.04 ±1.02
0.25in raised face
I (bolt hole diameter) All No tolerance in B16.5 or B16.47
J (bolt circle diameter) All ±0.06 ±1.52
Centre to centre of All ±0.03 ±0.76
adjacent bolt holes
Eccenticity of bolt circle and ≤ NPS 22 ±0.03 ±0.76
machined facing diameters
≥NPS3 ±0.06 ±1.52
Weld Neck Flanges1 (For dimensions see pages 44-45)
≤NPS4 +0.06 +1.52
D (overall length) NPS 5 to 10 +0.06, -0.12 +1.52, -3.05
NPS 12 to 24 +0.12, -0. +3.05, -4.57
≥ NPS 26 ±0.19 ±4.83
Thickness of hub All > 87.5% of pipe nominal wall thickness
Slip On (see page 46-47), Lap Joint and Socket Welding Flanges
B ≤ NPS 10 +0.03, -0.0 +0.76, -0.0
(inside diameter, or bore)
≥ NPS 12 +0.06, -0.0 +1.52, -0.0
Threaded Flanges
B (counterbore) ≤ NPS 10 +0.03, -0.0 +0.76, -0.0
(Not applicable for Class 150lb)
≥ NPS 12 +0.06, -0.0 +1.52, -0.0

SS 316L Flanges Dimensions

India's leading stainless steel 316L flanges manufacturer offers SS WERKSTOFF NR. 1.4404 Socket Weld Flanges and 316L Stainless Steel WNRF Flanges with bevelled ends to weld easily

Stainless Steel

Class 600 LB


R
Nom.
L21

O

T1

X
No.2& Bolt
THr

H

C

B2

B

D

L

r

L3

B3
Pipe Dia. of Circle
Size Holes Dia.
1.38 1/2 2.06 3.75 0.56 1.50 4-0.62 2.62 0.62 0.84 0.93 To be specified by purchaser. 0.88 0.38 0.88 0.12 0.88 0.90
1.69 3/4 2.25 4.62 0.62 1.88 4-0.75 3.25 0.62 1.05 1.14 1.09 0.44 1.00 0.12 1.00 1.11
2.00 1 2.44 4.88 0.69 2.12 4-.075 3.50 0.69 1.32 1.41 1.36 0.50 1.06 0.12 1.06 1.38
2.50 1-1/4 2.62 5.25 0.81 2.50 4-0.75 3.88 0.81 1.66 1.75 1.70 0.56 1.12 0.19 1.12 1.72
2.88 1-1/2 2.75 6.12 0.88 2.75 4-0.88 4.50 0.88 1.90 1.99 1.95 0.62 1.25 0.25 1.25 1.97
3.62 2 2.88 6.50 1.00 3.31 8-0.75 5.00 1.12 2.38 2.50 2.44 0.69 1.44 0.31 1.44 2.46
4.12 2-1/2 3.12 7.50 1.12 3.94 8-0.88 5.88 1.25 2.88 3.00 2.94 0.75 1.62 0.31 1.62 2.97
5.00 3 3.25 8.25 1.25 4.62 8-0.88 6.62 1.38 3.50 3.63 3.57 0.81 1.81 0.38 1.81 3.60
5.50 3-1/2 3.38 9.00 1.38 5.25 8-1.00 7.25 1.56 4.00 4.13 4.07
1.94 0.38 1.94 4.10
6.19 4 4.00 10.75 1.50 6.00 8-1.00 8.50 1.62 4.50 4.63 4.57
2.12 0.44 2.12 4.60
7.31 5 4.50 13.00 1.75 7.44 8-1.12 10.50 1.88 5.56 5.69 5.66
2.38 0.44 2.38 5.69
8.50 6 4.62 14.00 1.88 8.75 12-1.12 11.50 2.00 6.63 6.75 6.72
2.62 0.50 2.62 6.75
10.62 8 5.25 16.50 2.19 10.75 12-1.25 13.75 2.25 8.63 8.75 8.72
3.00 0.50 3.00 8.75
12.75 10 6.00 20.00 2.50 13.50 16-1.38 17.00 2.56 10.75 10.88 10.88
3.38 0.50 4.38 10.92
15.00 12 6.12 22.00 2.62 15.75 20-1.38 19.25 2.75 12.75 12.94 12.88
3.62 0.50 4.62 12.92
16.25 14 6.50 23.75 2.75 17.00 20-1.50 20.75 2.88 14.00 14.19 14.14
3.69 0.50 5.00 14.18
18.50 16 7.00 27.00 3.00 19.50 20-1.62 23.75 3.06 16.00 18.19 16.16
4.19 0.50 5.50 16.19
21.00 18 7.25 29.25 3.25 21.50 20-1.75 25.75 3.12 18.00 18.10 18.18
4.62 0.50 6.00 18.20
23.00 20 7.50 32.00 3.50 24.00 24-1.75 28.50 3.25 20.00 20.19 20.20
5.00 0.50 6.50 20.25
25.25 22 7.75 34.25 3.75 26.25 24-1.75 30.63 -- 22.00 -- 22.22
5.25 0.50 6.88 22.25
27.25 24 8.00 37.00 4.00 28.25 24-2.00 33.00 3.62 24.00 24.19 24.25
5.50 0.50 7.25 24.25

Class 1500 LB

Nom. O T1 R X No.2& Bolt L21 H B2 L B r L3 D B3 THr
Pipe Dia. of Circle
Size Holes Dia.
Sizes 1/2" Thru 2-1/2" Are Identical To Class 1500.
1/2 4.75 0.88 1.38 1.50 4-0.88 3.25 2.38 0.84
To be specified by purchaser.
1.25 0.88 0.13 1.25 0.38 0.90 0.88
3/4 5.13 1.00 1.69 1.75 4-0.88 3.50 2.75 1.05 1.38 1.09 0.13 1.38 0.44 1.11 1.00
1 5.88 1.13 2.00 2.06 4-1.00 4.00 2.88 1.32 1.63 1.36 0.13 1.63 0.50 1.38 1.13
1-1/4 6.25 1.13 2.50 2.50 4-1.00 4.38 2.88 1.66 1.63 1.70 0.19 1.63 0.56 1.72 1.19
1-1/2 7.00 1.25 2.88 2.75 4-1.13 4.88 3.25 1.90 1.75 1.95 0.25 1.75 0.63 1.97 1.25
2 8.50 1.50 3.63 4.13 8-1.00 6.50 4.00 2.38 2.25 2.44 0.31 2.25 0.69 2.46 1.50
2-1/2 9.63 1.63 4.13 4.88 8-1.13 7.50 4.13 2.88 2.50 2.94 0.31 2.50 0.75 2.97 1.88
3 10.50 1.88 5.00 5.25 8-1.25 8.00 4.63 3.50 2.88 3.57 0.38 2.88 -- 3.60 2.00
4 12.25 2.13 6.19 6.38 8-1.38 9.50 4.88 4.50 3.56 4.57 0.44 3.56 -- 4.60 2.25
5 14.75 2.88 7.31 7.75 8-1.63 11.50 6.13 5.56 4.13 5.66 0.44 4.13 -- 5.69 2.50
6 15.50 3.25 8.50 9.00 12-1.50 12.50 6.75 6.63 4.69 6.72 0.50 4.69 -- 6.75 2.75
8 19.00 3.63 10.63 11.50 12-1.75 15.50 8.38 8.63 5.63 8.72 0.50 5.63 -- 8.75 3.00
10 23.00 4.25 12.75 14.50 12-2.00 19.00 10.00 10.75 6.25 10.88 0.50 7.00 -- 10.92 3.31
12 26.50 4.88 15.00 17.75 16-2.13 22.50 11.13 12.75 7.13 12.88 0.50 8.63 -- 12.92 3.63
14 29.50 5.25 16.25 19.50 16-2.38 25.00 11.75 14.00 -- -- 0.50 9.50 -- 14.18 --
16 32.50 5.75 18.50 21.75 16-2.63 27.75 12.25 16.00 -- -- 0.50 10.25 -- 16.19 --
18 36.00 6.38 21.00 23.50 16-2.88 30.50 12.88 18.00 -- -- 0.50 10.88 -- 18.20 --
20 38.75 7.00 23.00 25.25 16-3.13 32.75 14.00 20.00 -- -- 0.50 11.50 -- 20.25 --
24 46.00 8.00 27.25 30.00 16-3.63 39.00 16.00 24.00 -- -- 0.50 13.00 -- 24.25 --

Best Price & Fast Delivery for EN 1.4404 Blind Flange, Biggest Stockist and Distributor of 316L Stainless Steel Socket Weld Flanges

ASTM A182 F316L Stainless Steel Flanges Chemical Composition

Mn Si N P C S Mo Cr Ni
2.0 max 1.0 max 68.89 min 0.045 max 0.035 max 0.030 max 2.00 - 3.00 16.00 - 18.00 10.00 - 14.00

Stainless Steel 316L Flanges Mechanical Properties

(0.2% Offset) Yield Properties Melting Point Density Tensile Properties Elongation
MPa – 205, Psi – 30000 (2550 °F) 1399 °C 8.0 g/cm3 MPa – 515, Psi – 75000 35 %
High Pressure 316L Stainless Steel Lap Joint Flange Supplier, Check Weight Chart of ASTM A182 Gr F316L Forged Flange

SS F316L Flange Equivalent

AFNOR JIS EN UNS BS WERKSTOFF NR. GOST
Z3CND17‐11‐02 / Z3CND18‐14‐03 SUS 316L X2CrNiMo17-12-2 / X2CrNiMo18-14-3 S31603 316S11 / 316S13 1.4435 03Ch17N14M3 / 03Ch17N14M2

ASME SA182 SS 316L Blind Flanges Size Chart

Blind FLanges

Class 150 LB

Raised Face
Thickness (T)
Outside
Diameter
No. of
Bolt Holes
Bolt Circle (BC) FLANGE
NPS
Raised Face (R) Flat Face
Thickness (T2)
Raised Face (RF) Bolt Hole (B)
.44″ 3.50″ 4 2.38″ 1/2″ 1.38″ .38″ .063″ .62″
.50″ 3.88″ 4 2.75″ 3/4″ 1.69″ .44″ .063″ .62″
.56″ 4.25″ 4 3.12″ 1″ 2.00″ .50″ .063″ .62″
.62″ 4.62″ 4 3.50″ 1-1/4″ 2.50″ .56″ .063″ .62″
.68″ 5.00″ 4 3.88″ 1-1/2″ 2.88″ .62″ .063″ .62″
.75″ 6.00″ 4 4.75″ 2″ 3.62″ .69″ .063″ .75″
.88″ 7.00″ 4 5.50″ 2-1/2″ 4.12″ .82″ .063″ .75″
.94″ 7.50″ 4 6.00″ 3″ 5.00″ .88″ .063″ .75″
.94″ 8.50″ 8 7.00″ 3-1/2″ 5.50″ .88″ .063″ .75″
.94″ 9.00″ 8 7.50″ 4″ 6.19″ .88″ .063″ .75″
.94″ 10.00″ 8 8.50″ 5″ 7.31″ .88″ .063″ .88″
1.00″ 11.00″ 8 9.50″ 6″ 8.50″ .94″ .063″ .88″
1.12″ 13.50″ 8 11.75″ 8″ 10.62″ 1.06″ .063″ .88″
1.19″ 16.00″ 12 14.25″ 10″ 12.75″ 1.13″ .063″ 1.00″
1.25″ 19.00″ 12 17.00″ 12″ 15.00″ 1.19″ .063″ 1.00″
1.38″ 21.00″ 12 18.75″ 14″ 16.25″ 1.32″ .063″ 1.12″
1.44″ 23.50″ 16 21.25″ 16″ 18.50″ 1.38″ .063″ 1.12″
1.56″ 25.00″ 16 22.75″ 18″ 21.00″ 1.50″ .063″ 1.25″
1.69″ 27.50″ 20 25.00″ 20″ 23.00″ 1.63″ .063″ 1.25″
1.81″ 29.50″ 20 27.25″ 22″ 25.25″ 1.75″ .063″ 1.38″
1.88″ 32.00″ 20 29.50″ 24″ 27.25″ 1.82″ .063″ 1.38″
Ask for free sample of AISI 316L Orifice Flange. SA182 F316L Spectacle Blind Flange are available in different sizes & schedules

ASTM A182 316L SS Flange Pressure Rating

Contact directly a Stainless steel 316L Ring Type Joint Flanges and SS UNS S31603 Orifice Flange manufacturer in India for high quality material and MTC

Temperature °F 900# 300# 1500# 400# 150# 2500# 600#
-20 to 100 2160 720 3600 960 275 6000 1440
200 00 600 3000 800 230 5000 1200
300 1620 540 2700 720 205 4500 1080
400 1490 495 2485 660 190 4140 995
500 1395 465 2330 620 170 3880 930
600 1310 435 25 580 140 3640 875
650 1290 430 2150 575 125 3580 860
700 1275 425 2125 565 110 3540 850
750 1245 415 2075 555 95 3460 830
800 1210 405 2015 540 80 3360 805
850 1190 395 1980 530 65 3300 790
900 1165 390 1945 520 50 3240 780
950 1145 380 1910 510 35 30 765
1000 965 320 1605 430 20 2675 640
1050 925 310 1545 410 20 2570 615
1100 770 255 1285 345 20 2145 515
1150 595 200 995 265 20 1655 400
1200 465 155 770 205 20 1285 310
1250 340 115 565 150 20 945 225
1300 255 85 430 115 20 715 170
1350 5 60 310 80 20 515 125
1400 145 50 240 65 20 400 95
1450 105 35 170 45 15 285 70
1500 80 25 135 35 10 230 55

Weight Chart of ASTM A182 Gr F316 Weld Neck Flanges

Why pay extra? Buying from ASTM A182 SS F316L Long Weld Neck Flange supplier saves your cost, wide selection of ASTM A182 F316L Weld Neck Flange and Stainless Steel 316L Slip On Flanges in India

Weld Neck FLanges
B A C E H F D G
DN PN mm mm mm mm mm mm mm mm
10 10 17.2 90 14 6 1.8 28 35 3
16 90 14 1.8 28 35
15 10 21.3 95 14 6 2 32 35 3
16 95 14 2 32 35
20 10 26.9 105 16 6 2.3 39 38 4
16 105 16 2.3 39 38
25 10 33.7 115 16 6 2.6 46 38 4
16 115 16 2.6 46 38
32 10 42.4 140 16 6 2.6 56 40 5
16 140 16 2.6 56 40
40 10 48.3 150 16 7 2.6 64 42 5
16 150 16 2.6 64 42
50 10 60.3 165 8 2.9 74 45 5
16 165 2.9 74 45
65 10 76.1 5 10 2.9 92 45 6
16 5 2.9 92 45
80 10 88.9 200 20 10 3.2 110 50 6
16 200 20 3.2 110 50
100 10 114.3 220 20 12 3.6 130 52 6
16 220 20 3.6 130 52
125 10 139.7 250 22 12 4 158 55 6
16 250 22 4 158 55
150 10 168.3 285 22 12 4.5 4 55 8
16 285 22 4.5 4 55
200 10 219.1 340 24 16 5.6 234 62 8
16 340 24 5.6 234 62
250 10 273 395 26 16 6.3 288 68 10
16 405 26 6.3 288 70
300 10 323.9 445 26 16 7.1 342 68 10
16 460 28 7.1 342 78

20 years of Experience as a supplier of these materials in below mentioned locations

ADCO - Onshore Gas Gathering & Injection For OGD3-Dubai

ADCO - Onshore Gas Gathering & Injection For OGD3-Dubai

Northern Luzon Offshore Wind Power Project-Philippines

Northern Luzon Offshore Wind Power Project-Philippines

Millennium Water Treatment & Engineering Sdn. Bhd Malaysia

Millennium Water Treatment & Engineering Sdn. Bhd Malaysia

Laban And Diluted Laban- UAE

Laban And Diluted Laban- UAE

Energy Africa Limited -- South Africa

Energy Africa Limited -- South Africa

Binh Dai 1 - Phase 3-Vietnam

Binh Dai 1 - Phase 3-Vietnam
