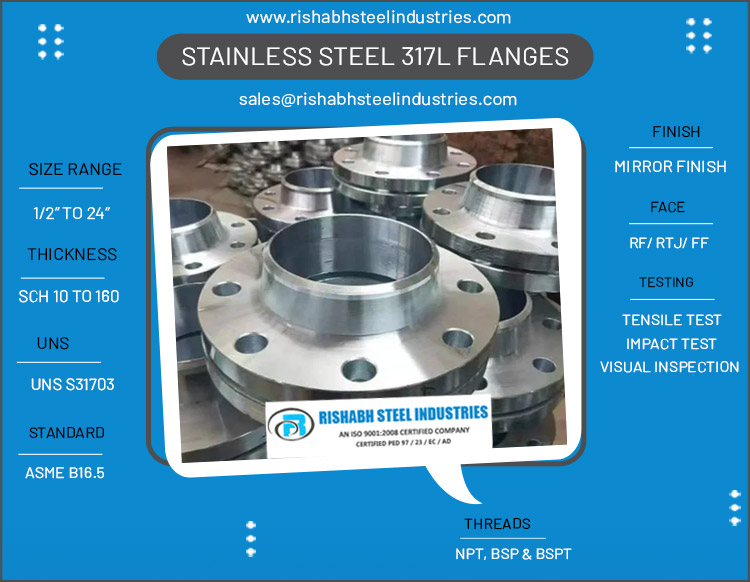

A flange is a common method of connecting pipework to other materials in the piping system. The Stainless Steel 317L Flanges are made up of low carbon, nickel, chromium, molybdenum, and other strengthening alloys. The flange help in providing support to pipes as there is a movement of flow across different conditions. 317L Stainless Steel Pipe Flanges are designed in schedules from SCH 10 to SCH 160 and XXS. The 317l flange are available in pressures from class 150 to class 2000 or more. The flange have good corrosion resistance properties while exhibiting enhanced mechanical properties. The DIN 1.4449 Large Diameter Flange connect valves, pipes, pumps, and other equipment to form an efficient pipeline. These flange allow for easy inspection and rapid modification in the system.
The UNS S31700 Weld Neck Flange is a high-strength flange that reduces the stress on the component due to its long tapered hub. The weld neck flange is attached with the help of a standard butt-welding procedure. An ASTM A182 F317L Slip on Flange is favored in the oil and gas industry as they are cheap compared to weld neck flange. These flange are easy to install and are seen across low pressure and temperature environments. The SS 317L Socket Weld Flanges have static strength similar to slip on flange and are connected with a single fillet weld. These flange are seen in small pipe bores of sizes below NPS 2. Due to their corrosion issues, they are not suited for certain processes. A 317L SS Blind Flange can be characterized without a bore and center. The main purpose of the flange is to blank off piping equipment in the system. These flange help terminate the flow of pressurized media in different applications.
ASTM A182/ ASME SA182
UNS NO. S31700/ S31703
More than 30 years experience as a Stainless Steel 317 Flanges manufacturer in India
Specifications List | ASTM/ ASME A182 / SA182 |
---|---|
Standard Flange | BS, DIN, ASME, ANSI, EN |
Size Chart | 1/2″up to 48″ (15 - 1200NB) |
Class / Pressure Rating | PN16, 2500#, PN25, 600#, 150#, 300#, 900#, PN10, 1500#, PN64, PN6, PN40 |
ASTM Standards | DIN, ANSI/ASME B16.48, B16.5, BS4504, BS 10, B 16.47 Series A & B, EN-1092 |
In-house manufacturing facilities to produce Stainless Steel 317 Nippolet Flanges, manufacturer of SS 317 Slip On Flanges since 2001
Description | Price Per Kg In Singapore | Price Per Kg In UAE | Price Per Kg In USD | Price Per Kg In Malaysia |
---|---|---|---|---|
DN100,150# STAINLESS STEEL SA 182 F317L FLANGE ANSI B16.5 BLRF | SGD 7.78 | UAE Dirham 20.30 | US $5.62 | MYR 24.62 |
DN100,150# STAINLESS STEEL SA 182 F317L FLANGE ANSI B16.5 SORF | SGD 8.93 | UAE Dirham 23.31 | US $6.45 | MYR 28.27 |
DN50 150 S40 STAINLESS STEEL GR F317 SWRF FLANGE | SGD 9.72 | UAE Dirham 25.38 | US $7.02 | MYR 30.78 |
DN150,150#SCH10S STAINLESS STEEL SA 182 F317L ANSI B16.5 WNRF FLANGE | SGD 19.71 | UAE Dirham 51.47 | US $14.24 | MYR 62.42 |
DN250 150# STAINLESS STEEL SA182 WNRF S10S F317 FLANGE | SGD 8.77 | UAE Dirham 22.89 | US $6.33 | MYR 27.76 |
1-1/2 150# STAINLESS STEEL SS317 SORF FLANGE | SGD 40.21 | UAE Dirham 105.00 | US $29.04 | MYR 127.34 |
Stainless Steel 317L Square Flange

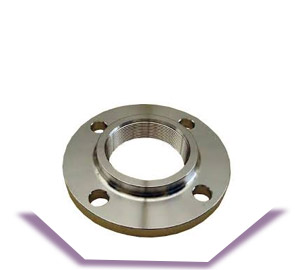

ASTM A182 Gr F317L Threaded / Screwed Flanges
SS UNS S31700 Pipe Weldo Flange
Stainless Steel 317 Reducing Flange
ASTM A182 F317L Raised Face Flanges

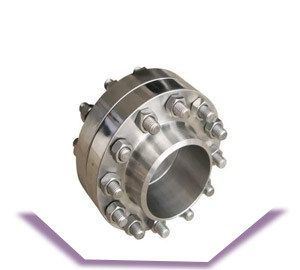

SS F317L Orifice Flanges
Stainless Steel 317 Plate Flanges
ASME SA182 SS 317L Tongue & Groove Flanges
SS 317 Male & Female Flanges
ASTM A182 F317L Bleed Ring Flange
ANSI B16.5 SS 317 Socket Weld Flange (SWRF)
SS 317L Weld Neck Flanges (WNRF)
Stainless Steel 317 Blind Flanges (BLRF)
317 SS Forged Flange
Stainless Steel 317L Puddle Flanges

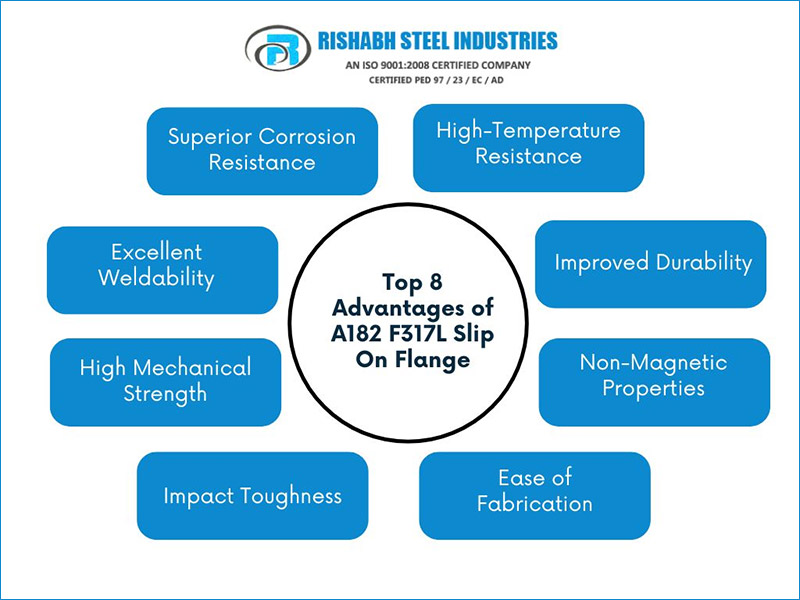

ASME SA182 F317L Slip On Flange (SORF)
SS 317L Ring Spacer
Werkstoff No 1.4438 SS Long Weld Neck Flanges
ASME SA182M Stainless Steel 317 Spade Flange
317 Stainless Steel High Hub Blind Flange
ASTM A182 Grade F317L Ring Type Joint Flanges (RTJ)
SA182 Gr F317L Lap Joint Flange
SS 317 Nipo flange
ASTM A182 Gr F317L Spectacle Blind Flanges
Class 150 LB
Pipe | Weight | Flange Data | Hub Data | Face | Drilling Data | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|
C | B | D | F | E | G | I | H | J | |||
Outside Diameter | Nominal Pipe | Flange Thickness min | Inside Diameter | Overall Length | Hub Diameter | Diameter at Weld Bevel | Face Diameter | Bolt Hole Diameter | Number of Holes | Diameter of Circle of Holes | |
in mm |
Size | kg/ piece | in mm |
in mm |
in mm |
in mm |
in mm |
in mm |
in mm |
in mm |
|
0.840 | 2 | 0.48 | 0.440 | 0.620 | 1.880 | 1.190 | 0.840 | 1.380 | 0.620 | 4 | 2.380 |
21.30 | 11.20 | 15.70 | 47.80 | 30.20 | 21.30 | 35.00 | 15.70 | 60.45 | |||
1.050 | w | 0.71 | 0.500 | 0.820 | 2.060 | 1.500 | 1.050 | 1.690 | 0.620 | 4 | 2.750 |
26.70 | 12.70 | 20.80 | 52.30 | 38.10 | 26.70 | 42.90 | 15.70 | 69.85 | |||
1.315 | 1 | 1.01 | 0.560 | 1.050 | 2.190 | 1.940 | 1.320 | 2.000 | 0.620 | 4 | 3.120 |
33.40 | 14.20 | 26.70 | 55.60 | 49.30 | 33.50 | 50.80 | 15.70 | 79.25 | |||
1.660 | 14 | 1.33 | 0.620 | 1.380 | 2.250 | 2.310 | 1.660 | 2.500 | 0.620 | 4 | 3.500 |
42.20 | 15.70 | 35.10 | 57.15 | 58.70 | 42.20 | 63.50 | 15.70 | 88.90 | |||
1.900 | 12 | 1.72 | 0.690 | 1.610 | 2.440 | 2.560 | 1.900 | 2.880 | 0.620 | 4 | 3.880 |
48.30 | 17.50 | 40.90 | 62.00 | 65.00 | 48.30 | 73.15 | 15.70 | 98.60 | |||
2.375 | 2 | 2.58 | 0.750 | 2.070 | 2.500 | 3.060 | 2.380 | 3.620 | 0.750 | 4 | 4.750 |
60.30 | 19.10 | 52.60 | 63.50 | 77.70 | 60.45 | 91.90 | 19.10 | 120.7 | |||
2.875 | 22 | 4.11 | 0.880 | 2.470 | 2.750 | 3.560 | 2.880 | 4.120 | 0.750 | 4 | 5.500 |
3.500 | 3 | 4.92 | 0.940 | 3.070 | 2.750 | 4.250 | 3.500 | 5.000 | 0.750 | 4 | 6.000 |
88.90 | 23.90 | 78.00 | 69.85 | 108.0 | 88.90 | 127.0 | 19.10 | 152.4 | |||
4.000 | 32 | 6.08 | 0.940 | 3.550 | 2.810 | 4.810 | 4.000 | 5.500 | 0.750 | 8 | 7.000 |
101.6 | 23.90 | 90.20 | 71.40 | 122.2 | 101.6 | 139.7 | 19.10 | 177.8 | |||
4.500 | 4 | 6.84 | 0.940 | 4.030 | 3.000 | 5.310 | 4.500 | 6.190 | 0.750 | 8 | 7.500 |
114.3 | 23.90 | 102.4 | 76.20 | 134.9 | 114.3 | 157.2 | 19.10 | 190.5 | |||
5.563 | 5 | 8.56 | 0.940 | 5.050 | 3.500 | 6.440 | 5.560 | 7.310 | 0.880 | 8 | 8.500 |
141.3 | 23.90 | 128.3 | 88.90 | 163.6 | 141.2 | 5.7 | 22.40 | 215.9 | |||
6.625 | 6 | 10.6 | 1.000 | 6.070 | 3.500 | 7.560 | 6.630 | 8.500 | 0.880 | 8 | 9.500 |
168.3 | 25.40 | 154.2 | 88.90 | 192.0 | 168.4 | 215.9 | 22.40 | 241.3 | |||
8.625 | 1.120 | 7.980 | 4.000 | 9.690 | 8.630 | 10.62 | 0.880 | 11.75 | |||
8 | 17.6 | 8 | |||||||||
219.1 | 28.40 | 202.7 | 101.6 | 246.1 | 219.2 | 269.7 | 22.40 | 298.5 | |||
10.75 | 10 | 24.0 | 1.190 | 10.02 | 4.000 | 12.00 | 10.75 | 12.75 | 1.000 | 12 | 14.25 |
273.0 | 30.20 | 254.5 | 101.6 | 304.8 | 273.0 | 323.8 | 25.40 | 362.0 | |||
12.75 | 12 | 36.5 | 1.250 | 12.00 | 4.500 | 14.38 | 12.75 | 15.00 | 1.000 | 12 | 17.00 |
323.8 | 31.75 | 304.8 | 114.3 | 365.3 | 323.8 | 381.0 | 25.40 | 431.8 | |||
14.00 | 14 | 48.4 | 1.380 | To be specified by Purchaser | 5.000 | 15.75 | 14.00 | 16.25 | 1.120 | 12 | .75 |
355.6 | 35.10 | 127.0 | 400.1 | 355.6 | 412.7 | 28.40 | 476.3 | ||||
16.00 | 16 | 60.6 | 1.440 | 5.000 | .00 | 16.00 | .50 | 1.120 | 16 | 21.25 | |
406.4 | 36.60 | 127.0 | 475.2 | 406.4 | 469.9 | 28.40 | 539.8 | ||||
.00 | 18 | 68.3 | 1.560 | 5.500 | 19.88 | 14.00 | 21.00 | 1.250 | 16 | 22.75 | |
457.2 | 39.60 | 139.7 | 505.0 | 457.2 | 533.4 | 31.75 | 577.9 | ||||
20.00 | 20 | 84.5 | 1.690 | 5.690 | 22.00 | 20.00 | 23.00 | 1.250 | 20 | 25.00 | |
508.0 | 42.90 | 144.5 | 558.8 | 508.0 | 584.2 | 31.75 | 635.0 | ||||
24.00 | 24 | 115 | 1.880 | 6.000 | 26.12 | 24.00 | 27.25 | 1.380 | 20 | 29.50 | |
609.6 | 47.80 | 152.4 | 663.4 | 609.6 | 692.1 | 35.10 | 749.3 |
PN | DN | B | A | C |
---|---|---|---|---|
mm | mm | mm | ||
10&16 | 10 | 14 | 90 | .0 |
10&16 | 15 | 14 | 95 | 22.0 |
10&16 | 20 | 16 | 105 | 27.5 |
10&16 | 25 | 16 | 115 | 34.5 |
10&16 | 32 | 140 | 43.5 | |
10&16 | 40 | 150 | 49.5 | |
10&16 | 50 | 20 | 165 | 61.5 |
10&16 | 65 | 20 | 5 | 77.5 |
10&16 | 80 | 20 | 200 | 90.5 |
10&16 | 100 | 22 | 220 | 116.0 |
10&16 | 125 | 22 | 250 | 141.5 |
10&16 | 150 | 24 | 285 | 170.5 |
10&16 | 200 | 24 | 340 | 221.5 |
10 | 250 | 26 | 395 | 276.5 |
16 | 29 | 405 | ||
Buy from PED approved Stainless Steel 317 RTJ Flange manufacturer for quality products & accurate dimensions
BS | ISO EN |
Type of Flange and Collar | Cast | Forgeda | Machined from rolled or forged bars and forged sectional steel | Made from flat products | Bent and electric welded from bars, sectional steel or strip b,c,d,e |
---|---|---|---|---|---|---|---|
101 | 01 | Plate flange for | no | yes | yes | yes | yes |
welding | |||||||
105 | 05 | Blind flange | no | yes | yes | yes | no |
111 | 11 | Weld-neck flange | no | yes | yes | no | yes, for |
≥ DN 700 | |||||||
112 | 12 | Hubbed slip-on | no | yes | yes | no | no |
flange for welding |
Grade | C | Cr | Mn | P | S | N | Mo | Si | Ni |
---|---|---|---|---|---|---|---|---|---|
Stainless Steel 317 Flange | 0.08 maximum | 18 – 20 | 2 maximum | 0.045 maximum | 0.030 maximum | 57.845 min | 3.00 - 4.00 | 1.0 maximum | 11.00 - 15.00 |
Stainless Steel 317L Flange | 0.035 maximum | 18 – 20 | 2 maximum | 0.045 maximum | 0.030 maximum | 57.89 min | 3.00 - 4.00 | 1.0 maximum | 11.00 - 15.00 |
Elongation | Tensile Properties | Melting Point | Density | (0.2% Offset) Yield Properties |
---|---|---|---|---|
35 % | Psi – 75000 , MPa – 515 | 1400 °C (2550 °F) | 8.0 g/cm3 | Psi – 30000 , MPa – 205 |
STANDARD | JIS | UNS | WERKSTOFF NR. | EN |
---|---|---|---|---|
Stainless Steel 317 Flange | SUS 317 | S31700 | 1.4449 | - |
Stainless Steel 317L Flange | SUS 317L | S31703 | 1.4438 | X2CrNiMo18-15-4 |
Compare our rates with other ANSI B16.5 SS 317 Orifice Flange manufacturers and suppliers in India
S 120 | Outer Diam. | S 20 | Sizes of Normal Pipe | S 10 | S 30 | S 40 | STD Wall | XX Hvy | S 100 | S 60 | S 140 | EXT Hvy | S 80 | S 160 |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0.84 | ½ inch | 0.083 | 0.109 | 0.109 | 0.294 | 0.147 | 0.147 | 0.188 | ||||||
1.05 | ¾ inch | 0.083 | 0.113 | 0.113 | 0.308 | 0.154 | 0.154 | 0.219 | ||||||
1.315 | 1 inch | 0.109 | 0.133 | 0.133 | 0.358 | 0.179 | 0.179 | 0.25 | ||||||
1.66 | 1 ¼ inch | 0.109 | 0.14 | 0.14 | 0.382 | 0.191 | 0.191 | 0.25 | ||||||
1.9 | 1 ½ inch | 0.109 | 0.145 | 0.145 | 0.4 | 0.2 | 0.2 | 0.281 | ||||||
2.375 | 2 inch | 0.109 | 0.154 | 0.154 | 0.436 | 0.218 | 0.218 | 0.344 | ||||||
2.875 | 2 ½ inch | 0.12 | 0.203 | 0.203 | 0.552 | 0.276 | 0.276 | 0.375 | ||||||
3.5 | 3 inch | 0.12 | 0.216 | 0.216 | 0.6 | 0.3 | 0.3 | 0.438 | ||||||
4 | 3 ½ inch | 0.12 | 0.226 | 0.226 | 0.636 | 0.318 | 0.318 | |||||||
0.438 | 4.5 | 4 inch | 0.12 | 0.237 | 0.237 | 0.674 | 0.337 | 0.337 | 0.531 | |||||
0.5 | 5.563 | 5 inch | 0.134 | 0.258 | 0.258 | 0.75 | 0.375 | 0.375 | 0.625 | |||||
0.562 | 6.625 | 6 inch | 0.134 | 0.28 | 0.28 | 0.864 | 0.432 | 0.432 | 0.719 | |||||
0.719 | 8.625 | 0.25 | 8 inch | 0.148 | 0.277 | 0.322 | 0.322 | 0.875 | 0.594 | 0.406 | 0.812 | 0.5 | 0.5 | 0.906 |
0.844 | 10.75 | 0.25 | 10 inch | 0.165 | 0.307 | 0.365 | 0.365 | 1 | 0.719 | 0.5 | 1 | 0.5 | 0.594 | 1.125 |
1 | 12.75 | 0.25 | 12 inch | 0.18 | 0.33 | 0.406 | 0.375 | 1 | 0.844 | 0.562 | 1.125 | 0.5 | 0.688 | 1.312 |
1.094 | 14 | 0.312 | 14 inch | 0.25 | 0.375 | 0.438 | 0.375 | 0.938 | 0.594 | 1.25 | 0.5 | 0.75 | 1.406 | |
1.219 | 16 | 0.312 | 16 inch | 0.25 | 0.375 | 0.5 | 0.375 | 1.031 | 0.656 | 1.438 | 0.5 | 0.844 | 1.594 | |
1.375 | 18 | 0.312 | 18 inch | 0.25 | 0.438 | 0.562 | 0.375 | 1.156 | 0.75 | 1.562 | 0.5 | 0.938 | 1.781 | |
1.5 | 20 | 0.375 | 20 inch | 0.25 | 0.5 | 0.594 | 0.375 | 1.281 | 0.812 | 1.75 | 0.5 | 1.031 | 1.969 | |
22 | 22 inch | 0.25 | 0.375 | 0.5 | ||||||||||
1.812 | 24 | 0.375 | 24 inch | 0.25 | 0.562 | 0.688 | 0.375 | 1.531 | 0.969 | 2.062 | 0.5 | 1.219 | 2.344 | |
26 | 26 inch | 0.375 | 0.5 | |||||||||||
30 | 0.5 | 30 inch | 0.312 | 0.625 | 0.375 | 0.5 | ||||||||
36 | 0.5 | 36 inch | 0.312 | 0.625 | 0.75 | 0.375 | 0.5 | |||||||
40 | 40 inch | 0.375 | 0.5 | |||||||||||
42 | 42 inch | 0.375 | 0.5 | |||||||||||
48 | 48 inch | 0.375 | 0.5 |

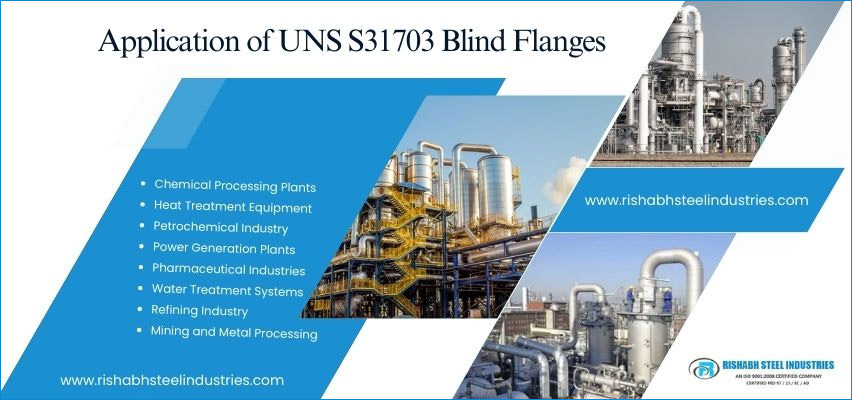

Chemical Industries
Expansion joints
Heating Element Tubing
Paper Mills
High Temperature Mineral Processing
Heat Exchangers
Bellows
Spiral Welded tube for burner pipes and flues
Contact directly a Stainless Steel 317 Slip On Flanges and Werkstoff No 1.4438 SS Socket Weld Flanges supplier in India for factory price and custom sizes
Temperature °F | 900# | 300# | 1500# | 400# | 150# | 2500# | 600# |
---|---|---|---|---|---|---|---|
-20 to 100 | 2160 | 720 | 3600 | 960 | 275 | 6000 | 1440 |
200 | 00 | 600 | 3000 | 800 | 230 | 5000 | 1200 |
300 | 1620 | 540 | 2700 | 720 | 205 | 4500 | 1080 |
400 | 1490 | 495 | 2485 | 660 | 190 | 4140 | 995 |
500 | 1395 | 465 | 2330 | 620 | 170 | 3880 | 930 |
600 | 1310 | 435 | 25 | 580 | 140 | 3640 | 875 |
650 | 1290 | 430 | 2150 | 575 | 125 | 3580 | 860 |
700 | 1275 | 425 | 2125 | 565 | 110 | 3540 | 850 |
750 | 1245 | 415 | 2075 | 555 | 95 | 3460 | 830 |
800 | 1210 | 405 | 2015 | 540 | 80 | 3360 | 805 |
850 | 1190 | 395 | 1980 | 530 | 65 | 3300 | 790 |
900 | 1165 | 390 | 1945 | 520 | 50 | 3240 | 780 |
950 | 1145 | 380 | 1910 | 510 | 35 | 30 | 765 |
1000 | 965 | 320 | 1605 | 430 | 20 | 2675 | 640 |
1050 | 925 | 310 | 1545 | 410 | 20 | 2570 | 615 |
1100 | 770 | 255 | 1285 | 345 | 20 | 2145 | 515 |
1150 | 595 | 200 | 995 | 265 | 20 | 1655 | 400 |
1200 | 465 | 155 | 770 | 205 | 20 | 1285 | 310 |
1250 | 340 | 115 | 565 | 150 | 20 | 945 | 225 |
1300 | 255 | 85 | 430 | 115 | 20 | 715 | 170 |
1350 | 5 | 60 | 310 | 80 | 20 | 515 | 125 |
1400 | 145 | 50 | 240 | 65 | 20 | 400 | 95 |
1450 | 105 | 35 | 170 | 45 | 15 | 285 | 70 |
1500 | 80 | 25 | 135 | 35 | 10 | 230 | 55 |
