A flange offers a method to connect pipes, valves, and other equipment to a piping system either using screws or welding procedures. The Incoloy 825 Flanges are austenitic grade made of nickel, chromium, and molybdenum with other constituting alloys. These flange offer exceptional resistance to corrosive and reducing media. The flange have enhanced tolerance to chloride ion stress corrosion cracking. A DIN 2.4858 Forged Flange has outstanding surface porosity and is resistant to sensitization in temperatures up to 760 degrees C. These flange have excellent mechanical properties and can be easily heat-treated. A forged flange can be easily formed and fabricated. Our institution is amongst the top echelons of Inconel 825 Flanges manufacturers who follow all international and national standards while manufacturing the best products using the latest technological advancements.

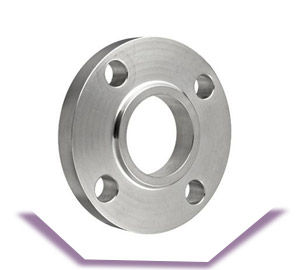

The ASTM B564 UNS N08825 Slip on Flange is a ring that is slid on the pipe and welded on both sides to prevent leakage. These flange are preferred in the industry due to their lower cost. Alloy 825 Flanges Socket Weld Flange possesses equal strength compared to a slip on flange. The flange has a socket that allows it to secure to a pipe and welded using a single fillet weld. These flange are seen in low-pressure conditions. The 825 Incoloy Weld Neck Flanges possess outstanding strength and allow for repeat bending conditions due to its long tapered hub. The hub allows it to transfer the stress from the pipe and aid the system. A Nickel Alloy 825 Blind Flange is designed with a bore that allows it to blank the ends of piping equipment. These flange are utilized in conjunction with another flange allowing it to isolate the pipe.
ASTM B564/ ASME SB 564
UNS NO. N08825
Here are many benefits if you buy from ASTM B564 UNS N08825 Blind Flange manufacturers, like high quality, best price and wide range of ASTM B564 UNS N08825 Lap Joint Flanges, Incoloy 825 Weld Neck Flanges
Specifications | ASTM/ ASME B564 / SB 564 |
---|---|
Size | From ½” to 36″ |
Standards | ASME Flange, EN Flange, ANSI Flange, ASTM, DIN Flange, BS Flange |
Pressure Ratings | 2500#, 300#, 900#, PN25, 1500#, PN6, PN40, 150#, PN10, PN16, 600#, PN64 |
Flange Face Type | Raised Face, Flate Face, Ring Type Joint |
Dimensions | ASA, ANSI B16.47 Series A/ B, ANSI B16.5, MSS SP44, AWWA, API-605, Custom Drawings |
Save 10-12% if you buy directly from ASTM B564 825 Flange and Incoloy 825 Flanges manufacturers
Description | Price Per Kg In Singapore | Price Per Kg In UAE | Price Per Kg In USD | Price Per Kg In Malaysia |
---|---|---|---|---|
1 1/2 1500 LBS WELD-NECK FLANGE RTJ SCH40 INCOLOY 825 | SGD 433.71 | UAE Dirham 1,132.47 | US $313.24 | MYR 1,373.42 |
DN 25 (1) X 1500 # INCOLOY 825 SPECTACLE BLIND RTJ FLANGE TO ASTM B 564 GR.UNS NO.8825 DIMN B 16.48 | SGD 1,764.13 | UAE Dirham 4,606.33 | US $1,274.09 | MYR 5,586.40 |
1/2 NB X 2500 # SCH 80S INCOLOY 825 WNRTJ FLANGE TO ASTM B 425 GR UNS NO 8825, DIMN B 16.5, NACE MR.0175 | SGD 418.54 | UAE Dirham 1,092.84 | US $302.28 | MYR 1,325.36 |
1 NB X 1/2 NB X 250 INCOLOY 825 REDUCING WNRT J FLANGE TO ASTM B 425 GR.UNS NO. 8825, DIMN B 16.5 NACE MR-0175 | SGD 1,260.29 | UAE Dirham 3,290.75 | US $910.21 | MYR 3,990.91 |
3-1/16 15000 PSI API RING GASKET, BX-154, INCOLOY 825 FLANGE | SGD 226.37 | UAE Dirham 591.07 | US $163.49 | MYR 716.83 |
2 WN 150 RF SCH XXS 63-125 RMS FLANGE - INCOLOY FLANGE 825 | SGD 19.03 | UAE Dirham 49.68 | US $13.74 | MYR 60.25 |

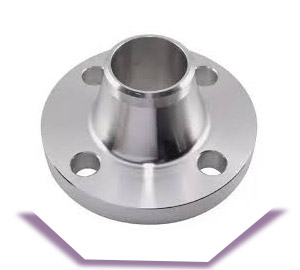

Incoloy 825 Reducing Flange
ASTM B564 UNS N08825 Lap Joint Flanges

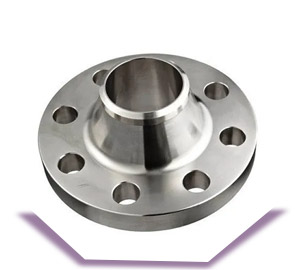

ASTN B424 UNS N08825 Weld Neck Flanges (WNRF)
Incoloy Alloy 825 Tongue & Groove Flange
825 Incoloy® Alloy Square Flanges
Alloy 825 Weldo Flange
ANSI B16.5 Inconel 825 Spade Flange
825 Alloy Ring Spacer
Nickel Alloy 825 Blind Flange (BLRF)
825 Incoloy Alloy Plate Flanges
NiCr21Mo Incoloy Male & Female Flanges

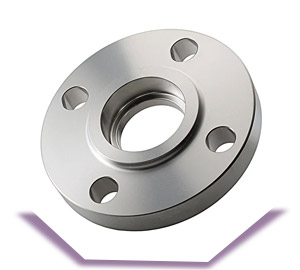

Incoloy Alloy 825 Socket Weld Flanges (SWRF)
Nickel Alloy 825 Nipo flange
Incoloy Alloy 825 Orifice Flanges
ASTM B564 825 Raised Face Flanges
ASME SB564 825 Threaded / Screwed Flanges
Incoloy 825 Spectacle Blind Flanges
ASTM B564 UNS N08825 Ring Type Joint Flanges (RTJ)
Incoloy Alloy 825 Bleed Ring Flange
2.4858 Incoloy 825 High Hub Blind Flanges
Incoloy 825 UNS N08825 Puddle Flanges
825 Incoloy Forged Flanges
Incoloy 825 DIN 2.4858 Slip On Flanges (SORF)
Inconel 825 Long Weld Neck Flanges
S 120 | Outer Diam. | S 20 | Sizes of Normal Pipe | S 10 | S 30 | S 40 | STD Wall | XX Hvy | S 100 | S 60 | S 140 | EXT Hvy | S 80 | S 160 |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0.84 | ½ inch | 0.083 | 0.109 | 0.109 | 0.294 | 0.147 | 0.147 | 0.188 | ||||||
1.05 | ¾ inch | 0.083 | 0.113 | 0.113 | 0.308 | 0.154 | 0.154 | 0.219 | ||||||
1.315 | 1 inch | 0.109 | 0.133 | 0.133 | 0.358 | 0.179 | 0.179 | 0.25 | ||||||
1.66 | 1 ¼ inch | 0.109 | 0.14 | 0.14 | 0.382 | 0.191 | 0.191 | 0.25 | ||||||
1.9 | 1 ½ inch | 0.109 | 0.145 | 0.145 | 0.4 | 0.2 | 0.2 | 0.281 | ||||||
2.375 | 2 inch | 0.109 | 0.154 | 0.154 | 0.436 | 0.218 | 0.218 | 0.344 | ||||||
2.875 | 2 ½ inch | 0.12 | 0.203 | 0.203 | 0.552 | 0.276 | 0.276 | 0.375 | ||||||
3.5 | 3 inch | 0.12 | 0.216 | 0.216 | 0.6 | 0.3 | 0.3 | 0.438 | ||||||
4 | 3 ½ inch | 0.12 | 0.226 | 0.226 | 0.636 | 0.318 | 0.318 | |||||||
0.438 | 4.5 | 4 inch | 0.12 | 0.237 | 0.237 | 0.674 | 0.337 | 0.337 | 0.531 | |||||
0.5 | 5.563 | 5 inch | 0.134 | 0.258 | 0.258 | 0.75 | 0.375 | 0.375 | 0.625 | |||||
0.562 | 6.625 | 6 inch | 0.134 | 0.28 | 0.28 | 0.864 | 0.432 | 0.432 | 0.719 | |||||
0.719 | 8.625 | 0.25 | 8 inch | 0.148 | 0.277 | 0.322 | 0.322 | 0.875 | 0.594 | 0.406 | 0.812 | 0.5 | 0.5 | 0.906 |
0.844 | 10.75 | 0.25 | 10 inch | 0.165 | 0.307 | 0.365 | 0.365 | 1 | 0.719 | 0.5 | 1 | 0.5 | 0.594 | 1.125 |
1 | 12.75 | 0.25 | 12 inch | 0.18 | 0.33 | 0.406 | 0.375 | 1 | 0.844 | 0.562 | 1.125 | 0.5 | 0.688 | 1.312 |
1.094 | 14 | 0.312 | 14 inch | 0.25 | 0.375 | 0.438 | 0.375 | 0.938 | 0.594 | 1.25 | 0.5 | 0.75 | 1.406 | |
1.219 | 16 | 0.312 | 16 inch | 0.25 | 0.375 | 0.5 | 0.375 | 1.031 | 0.656 | 1.438 | 0.5 | 0.844 | 1.594 | |
1.375 | 18 | 0.312 | 18 inch | 0.25 | 0.438 | 0.562 | 0.375 | 1.156 | 0.75 | 1.562 | 0.5 | 0.938 | 1.781 | |
1.5 | 20 | 0.375 | 20 inch | 0.25 | 0.5 | 0.594 | 0.375 | 1.281 | 0.812 | 1.75 | 0.5 | 1.031 | 1.969 | |
22 | 22 inch | 0.25 | 0.375 | 0.5 | ||||||||||
1.812 | 24 | 0.375 | 24 inch | 0.25 | 0.562 | 0.688 | 0.375 | 1.531 | 0.969 | 2.062 | 0.5 | 1.219 | 2.344 | |
26 | 26 inch | 0.375 | 0.5 | |||||||||||
30 | 0.5 | 30 inch | 0.312 | 0.625 | 0.375 | 0.5 | ||||||||
36 | 0.5 | 36 inch | 0.312 | 0.625 | 0.75 | 0.375 | 0.5 | |||||||
40 | 40 inch | 0.375 | 0.5 | |||||||||||
42 | 42 inch | 0.375 | 0.5 | |||||||||||
48 | 48 inch | 0.375 | 0.5 |
Incoloy Alloy 825 Pipe Flanges and 825 Alloy Plate Flanges manufacturer in India, we use only high quality & tested material to produce Nickel Alloy 825 Forged Flanges
Temperature °F | 900# | 300# | 1500# | 400# | 150# | 2500# | 600# |
---|---|---|---|---|---|---|---|
-20 to 100 | 2160 | 720 | 3600 | 960 | 275 | 6000 | 1440 |
200 | 00 | 600 | 3000 | 800 | 230 | 5000 | 1200 |
300 | 1620 | 540 | 2700 | 720 | 205 | 4500 | 1080 |
400 | 1490 | 495 | 2485 | 660 | 190 | 4140 | 995 |
500 | 1395 | 465 | 2330 | 620 | 170 | 3880 | 930 |
600 | 1310 | 435 | 25 | 580 | 140 | 3640 | 875 |
650 | 1290 | 430 | 2150 | 575 | 125 | 3580 | 860 |
700 | 1275 | 425 | 2125 | 565 | 110 | 3540 | 850 |
750 | 1245 | 415 | 2075 | 555 | 95 | 3460 | 830 |
800 | 1210 | 405 | 2015 | 540 | 80 | 3360 | 805 |
850 | 1190 | 395 | 1980 | 530 | 65 | 3300 | 790 |
900 | 1165 | 390 | 1945 | 520 | 50 | 3240 | 780 |
950 | 1145 | 380 | 1910 | 510 | 35 | 30 | 765 |
1000 | 965 | 320 | 1605 | 430 | 20 | 2675 | 640 |
1050 | 925 | 310 | 1545 | 410 | 20 | 2570 | 615 |
1100 | 770 | 255 | 1285 | 345 | 20 | 2145 | 515 |
1150 | 595 | 200 | 995 | 265 | 20 | 1655 | 400 |
1200 | 465 | 155 | 770 | 205 | 20 | 1285 | 310 |
1250 | 340 | 115 | 565 | 150 | 20 | 945 | 225 |
1300 | 255 | 85 | 430 | 115 | 20 | 715 | 170 |
1350 | 5 | 60 | 310 | 80 | 20 | 515 | 125 |
1400 | 145 | 50 | 240 | 65 | 20 | 400 | 95 |
1450 | 105 | 35 | 170 | 45 | 15 | 285 | 70 |
1500 | 80 | 25 | 135 | 35 | 10 | 230 | 55 |
DENSITY (LB/IN 3) | 0.294 |
---|---|
DENSITY (G/CM 3) | 8.14 |
MELTING POINT (°C) | 1370 – 1400 |
MELTING POINT (°F) | 2500 – 2550 |
Al | Mn | S | Cu | Fe | Ni | Si | Cr | C | Ti |
---|---|---|---|---|---|---|---|---|---|
0.02 max | 1.00 max | 0.03 max | 1.50 – 3.00 | 22.00 min | 38.00 – 46.00 | 0.5 max | 19.50 – 23.50 | 0.05 max | 0.06 – 1.20 |
Wide range of top quality Incoloy Alloy 825 Slip on Flange and Nickel Alloy 825 SWRF Flanges, Bulk Order Discounts
Elongation | Density | Tensile Properties | Melting Point | Yield Properties |
---|---|---|---|---|
30 % | 8.14 g/cm3 | Psi – 80,000 , MPa – 550 | 1400 °C (2550 °F) | Psi – 32,000 , MPa – 220 |
AFNOR | UNS | OR | JIS | BS | WERKSTOFF NR. | GOST | EN |
---|---|---|---|---|---|---|---|
NFE30C20DUM | N08825 | XH38BT | NCF 825 | NA 16 | 2.4858 | ЭП703 | NiCr21Mo |
Standard | Number of Bolts | Diameter | Diameter of Bolt Hole | Class | Bolt Circle Diameter | Bolt Size |
---|---|---|---|---|---|---|
ISO 7005 (DIN) Flange | 4 | 80 | 11 | PN6 Flanges | 55 | M10 |
4 | 95 | 14 | PN10 Flanges | 65 | M12 | |
4 | 95 | 14 | PN16 Flanges | 65 | M12 | |
4 | 90 | 16 | PN20 Flanges | 60.5 | M14 | |
4 | 95 | 14 | PN25 Flanges | 65 | M12 | |
4 | 95 | 14 | PN40 Flanges | 65 | M12 | |
AS 2129 Flange | 4 | 95 | 14 | Table C Flanges | 67 | 13 |
4 | 95 | 14 | Table D Flanges | 67 | 13 | |
4 | 95 | 14 | Table E Flanges | 67 | 13 | |
4 | 95 | 14 | Table F Flanges | 67 | 13 | |
4 | 114 | 17 | Table H Flanges | 83 | 16 | |
4 | 114 | 17 | Table J Flanges | 83 | 16 | |
AS4087 Flanges | 4 | 95 | 14 | PN14 Flanges | 67 | M12 |
ANSI B16.5 Flanges | 4 | 89 | 16 | ANSI 150 Flanges | 60 | 13 |
4 | 95 | 16 | ANSI 300 Flanges | 67 | 13 | |
4 | 95 | 16 | ANSI 600 Flanges | 67 | 13 | |
4 | 121 | 22 | ANSI 900 Flanges | 83 | 19 | |
4 | 121 | 22 | ANSI 1500 Flanges | 83 | 19 |
Why don't you directly contact a Alloy 825 Weld Neck Flanges manufacturer? Extensive range and lowest price for ASTM B564 825 Socket weld Flanges and ASME SB564 825 RTJ Flanges in India
Condensers
Petrochemicals
Specialty Chemicals
Off-Shore Oil Drilling Companies
Power Generation
Chemical Equipment
Pharmaceutical Equipment
Sea Water Equipment
Pharmaceuticals
Gas Processing
Heat Exchangers
Pulp and Paper Industry
Class 300 LB
Pipe | Weight | Flange Data | Hub | Face | Drilling Data | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Nominal | Outside | A | B | C | F | D | G | H | J | I | |
Diameter | Overall | Inside | Flange | Hub | Overall | Face | Number | Diameter | Bolt Hole | ||
Pipe | Diameter | Diameter | Thickness min | Diameter | Length | Diameter | of Holes | of Circle | Diameter | ||
Size | in mm |
kg/ piece | in mm |
in mm |
in mm |
in mm |
in mm |
in mm |
in mm |
in mm |
|
2 | 0.840 | 0.64 | 3.750 | 0.880 | 0.560 | 1.500 | 0.880 | 1.380 | 4 | 2.620 | 0.620 |
21.30 | 95.20 | 22.40 | 14.20 | 38.10 | 22.40 | 35.10 | 66.55 | 15.70 | |||
w | 1.050 | 1.12 | 4.620 | 1.090 | 0.620 | 1.880 | 1.000 | 1.690 | 4 | 3.250 | 0.750 |
26.70 | 117.3 | 27.70 | 15.70 | 47.70 | 25.40 | 42.90 | 82.50 | 19.10 | |||
1 | 1.315 | 1.36 | 4.880 | 1.360 | 0.690 | 2.120 | 1.060 | 2.000 | 4 | 3.500 | 0.750 |
33.40 | 123.9 | 34.50 | 17.50 | 53.80 | 26.90 | 50.80 | 88.90 | 19.10 | |||
14 | 1.660 | 1.68 | 5.250 | 1.700 | 0.750 | 2.500 | 1.060 | 2.500 | 4 | 3.880 | 0.750 |
42.20 | 133.3 | 43.20 | 19.00 | 63.50 | 26.90 | 63.50 | 98.60 | 19.10 | |||
12 | 1.900 | 2.49 | 6.120 | 1.950 | 0.810 | 2.750 | 1.190 | 2.880 | 4 | 4.500 | 0.880 |
48.30 | 155.4 | 49.50 | 20.60 | 69.85 | 30.20 | 73.15 | 114.3 | 22.40 | |||
2 | 2.375 | 2.87 | 6.500 | 2.440 | 0.880 | 3.310 | 1.310 | 3.620 | 8 | 5.000 | 0.750 |
60.30 | 165.1 | 62.00 | 22.30 | 84.00 | 33.20 | 91.90 | 127.0 | 19.10 | |||
22 | 2.875 | 4.32 | 7.500 | 2.940 | 1.000 | 3.940 | 1.500 | 4.120 | 8 | 5.880 | 0.880 |
73.00 | 190.5 | 74.70 | 25.40 | 100.0 | 38.10 | 104.6 | 149.4 | 22.40 | |||
3 | 3.500 | 5.85 | 8.250 | 3.570 | 1.120 | 4.620 | 1.690 | 5.000 | 8 | 6.620 | 0.880 |
88.90 | 209.5 | 90.70 | 28.40 | 117.3 | 42.90 | 127.0 | 168.1 | 22.40 | |||
32 | 4.000 | 7.34 | 9.000 | 4.070 | 1.190 | 5.250 | 1.750 | 5.500 | 8 | 7.250 | 0.880 |
101.6 | 228.6 | 103.4 | 30.20 | 133.3 | 44.40 | 139.7 | 4.2 | 22.40 | |||
4 | 4.500 | 9.61 | 10.00 | 4.570 | 1.250 | 5.750 | 1.880 | 6.190 | 8 | 7.880 | 0.880 |
114.3 | 254.0 | 116.1 | 31.70 | 146.0 | 47.70 | 157.2 | 200.1 | 22.40 | |||
5 | 5.563 | 12.3 | 11.00 | 5.660 | 1.380 | 7.000 | 2.000 | 7.310 | 8 | 9.250 | 0.880 |
141.3 | 279.4 | 143.8 | 35.00 | 177.8 | 50.80 | 5.7 | 234.9 | 22.40 | |||
6 | 6.625 | 15.6 | 12.50 | 6.720 | 1.440 | 8.120 | 2.060 | 8.500 | 12 | 10.62 | 0.880 |
168.3 | 317.5 | 170.7 | 36.50 | 206.2 | 52.30 | 215.9 | 269.7 | 22.40 | |||
8 | 8.625 | 24.2 | 15.00 | 8.720 | 1.620 | 10.25 | 2.440 | 10.62 | 12 | 13.00 | 1.000 |
219.1 | 381.0 | 221.5 | 41.10 | 260.3 | 61.90 | 269.7 | 330.2 | 25.40 | |||
10 | 10.75 | 34.1 | 17.50 | 10.88 | 1.880 | 12.62 | 2.620 | 12.75 | 16 | 15.25 | 1.120 |
273.0 | 444.5 | 276.3 | 47.70 | 320.5 | 66.55 | 323.9 | 387.3 | 28.40 | |||
12 | 12.75 | 49.8 | 20.50 | 12.88 | 2.000 | 14.75 | 2.880 | 15.00 | 16 | 17.75 | 1.250 |
323.8 | 520.7 | 327.1 | 50.80 | 374.6 | 73.15 | 381.0 | 450.8 | 31.70 | |||
14 | 14.00 | 69.9 | 23.00 | 14.14 | 2.120 | 16.75 | 3.000 | 16.25 | 20 | 20.25 | 1.250 |
355.6 | 584.2 | 359.1 | 53.80 | 425.4 | 76.20 | 412.8 | 514.4 | 31.70 | |||
16 | 16.00 | 88.1 | 25.50 | 16.16 | 2.250 | 19.00 | 3.250 | .50 | 20 | 22.50 | 1.380 |
406.4 | 647.7 | 410.5 | 57.15 | 482.6 | 82.50 | 469.9 | 571.5 | 35.00 | |||
.00 | 109 | 28.00 | 65.21 | 2.380 | 21.00 | 3.500 | 21.00 | 24 | 24.75 | 1.380 | |
457.2 | 711.2 | 461.8 | 60.45 | 533.4 | 88.90 | 533.4 | 628.7 | 35.00 | |||
20 | 20.00 | 134 | 30.50 | 20.20 | 2.500 | 23.12 | 3.750 | 23.00 | 24 | 27.00 | 1.380 |
508.0 | 774.7 | 513.1 | 63.50 | 587.2 | 95.20 | 584.2 | 685.8 | 35.00 | |||
24 | 24.00 | 201 | 36.00 | 24.25 | 2.750 | 27.62 | 4.190 | 27.25 | 24 | 32.00 | 1.620 |
609.6 | 914.4 | 616.0 | 69.85 | 701.5 | 106.4 | 692.2 | 812.8 | 41.00 |
