ASTM B564 UNS NO6601 Forged Flange Manufacturer in India
Table of Content
Check Alloy 601 Blind Flanges Temperature Range and Specifications as per ASME B16.5
Sizes :
- PN6 to PN64
- NPS: 1/2" to 60"
- DN15 To DN1500
- Contact Inconel 601 flanges manufacturer in India for above 48 Inch
Pressure Types :
- 1500# & 2500#
- 600# & 900#
- 150# & 300#
Maximum Size :
- 26" To 60"
Process :
- Plate
- Forged
- Cast
Number Of Bolts Hole :
- 4 To 48
Surface Finish :
- Mirror Finish
- Concentric Serrated
- Spiral Serrated
- Stock & Smooth
- Cold Water Finish
Face Types :
- RTJ Face
- Tongue & Groove
- FF Face
- Male & Female
- RF Face
Types Of Threads :
- BSPT
- BSP
- FPT
- MPT & MNPT
- NPT
Common Thickness :
- SCH 120/ 140/ 180
- SCH 60/ 80/ 100
- SCH 10/ 20/ 40
Installations :
- Petrochemicals
- Nuclear Energy
- Oil & gas plants
- Power Generation
TTesting checklist :
- Material inspection
- Hardness test
- Impact test
- PMI test
- Tensile test
Advantages :
- Excellent weldability
- Non-magnetic
End Connection :
- Welding
- Threaded
Marking Info :
- Manufacturers Name
- Grade & Material
- Size & Schedule
- Standard & Heat No.
Life :
- Stainless Steel = 30 To 35
European Standards (EN) :
Value Added Services :
- Polishing
- Casting
- Minor Fabrication
- Threading
- Beveling end
Types Of Logistics :
- By Air
- By Sea
- Uk = 30 day
- Russia = 20 day
- Australia = 21 days
- Kenya = 19 days
- Denmark = 35 day
- Spain = 30 day
- Thailand = 7 days
Available Packaging :
- Wooden Cases
- Wooden Pallet
- Carton Box
Documentation List :
- Material traceability records
- Raw material test reports
- Fumigation certificates
Applicable Fluids :
- Oil and Gas
- Steam
- Water & Air
Forging Temperature :
- Inconel 601 = 1093°C
Highly Skilled Nickel Alloy 601 Slip On Flanges Supplier in Mumbai with Sizes Ranging From 1/2" To 24"
| Nominal Pipe Size (inches) | Number of Bolt Holes | Bolt Size (inches) | W.T (inches) | Class | BCD (inches) | O.D (inches) |
|---|---|---|---|---|---|---|
| 1/2 | 4 | 5/8 | 0.30 | 150 | 2.25 | 3.50 |
| 1 | 4 | 5/8 | 0.30 | 150 | 2.75 | 4.25 |
| 2 | 4 | 3/4 | 0.40 | 150 | 4.00 | 6.00 |
| 4 | 8 | 7/8 | 0.50 | 150 | 6.00 | 9.00 |
| 6 | 8 | 7/8 | 0.56 | 150 | 7.50 | 11.00 |
| 8 | 8 | 7/8 | 0.62 | 150 | 9.00 | 13.50 |
| 10 | 8 | 7/8 | 0.75 | 150 | 10.50 | 16.00 |
| 12 | 8 | 7/8 | 0.81 | 150 | 12.00 | 18.00 |
| 1/2 | 4 | 5/8 | 0.34 | 300 | 2.75 | 3.88 |
| 1 | 4 | 5/8 | 0.34 | 300 | 3.25 | 4.62 |
| 2 | 4 | 3/4 | 0.47 | 300 | 4.50 | 6.50 |
| 4 | 8 | 7/8 | 0.60 | 300 | 7.00 | 10.00 |
| 6 | 8 | 7/8 | 0.68 | 300 | 8.00 | 12.00 |
| 8 | 8 | 7/8 | 0.75 | 300 | 9.50 | 15.00 |
| 10 | 8 | 7/8 | 0.88 | 300 | 11.00 | 18.00 |
| 12 | 8 | 7/8 | 0.94 | 300 | 12.50 | 20.00 |
Nickel 601 Weld Neck Flanges Available in Pressure Class 150 To 2500, Check Chemical Composition
| Class | 150 | 300 | 600 | 900 | 1500 | 2500 |
|---|---|---|---|---|---|---|
| Pressure Rating at 100°F | 285 | 740 | 1480 | 2220 | 3705 | 6170 |
| Pressure Rating at 200°F | 260 | 675 | 1350 | 2025 | 3375 | 5625 |
| Pressure Rating at 400°F | 230 | 600 | 1200 | 1800 | 3000 | 5000 |
| Pressure Rating at 600°F | 200 | 515 | 1030 | 1545 | 2575 | 4290 |
| Pressure Rating at 800°F | 170 | 430 | 860 | 1290 | 2145 | 3575 |
![Carbon [C] :](imginfo/carbon.jpg "Carbon [C] :")
Carbon [C] :
- 0.10% (Maximum)
![Sulfur [S] :](imginfo/sulfur.jpg "Sulfur [S] :")
Sulfur [S] :
- 0.015% (Maximum)
![Silicon [Si] :](imginfo/silicon.jpg "Silicon [Si] :")
Silicon [Si] :
- 0.5% (Maximum)
![Chromium [Cr] :](imginfo/chromium.jpg "Chromium [Cr] :")
Chromium [Cr] :
- 21.0 - 25.0%
![Nickel [Ni] :](imginfo/nickel.jpg "Nickel [Ni] :")
Nickel [Ni] :
- 58.0 - 63.0%
![Iron [Fe] :](imginfo/iron.jpg "Iron [Fe] :")
Iron [Fe] :
- 5.0 - 10.0% (Maximum)
![Copper [Cu] :](imginfo/copper.jpg "Copper [cu] :")
Copper [Cu] :
- 0.04% (Maximum)
![Manganese [Mn] :](imginfo/manganese.jpg "Manganese [Mn] :")
Manganese [Mn] :
- 1.00% (Maximum)
View Inconel 601 Pipe Flanges Tensile Strength and Physical Properties
Specific Heat :
- 0.106 Btu/lb-°F
Electrical Resistivity :
- 1.10 x 10-6Ω·m
Specific Heat :
- 0.42 J/g·°C
Thermal Conductivity :
- 11.4 W/m·K
Melting Point :
- 1411 °C
Density :
- 8.1 g/cm3
-
Psi - 80,000
-
MPa - 550
Grade :
- Inconel 601
UNS :
- UNS N06601
WERKSTOFF NR. :
- WNR 2.4851
Japanese (JIS) :
- NCF 601
British (BS) :
- NA 49
Russian (GOST) :
- XH60BT
France (AFNOR) :
- NC23FeA
European (EN) :
- NiCr23Fe
-
1150°C
-
8.1 g/cm3
-
1411 °C
-
MPa - 205
-
Psi - 30,000
Density :
- 8.1 g/cm3
Melting Point :
- 1411 °C
Tensile Strength :
- MPa - 550
Yield Strength :
- MPa - 205
Elongation :
- 30 %

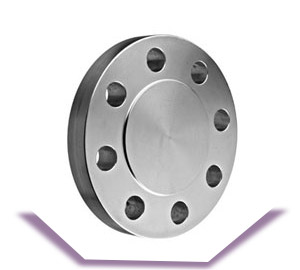

ASTM B564 Inconel 601 Blind Flange

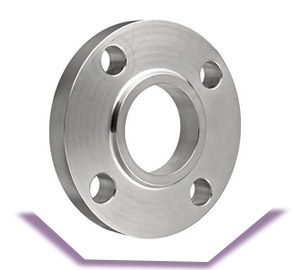

UNS N06601 Slip On Flange
Alloy 601 Weld Neck Flange

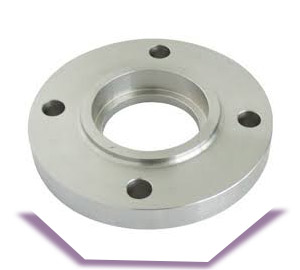

Inconel 601 Socket Weld Flange
ASTM B564 UNS NO6601 Lap Joint Flange

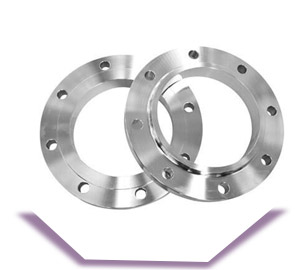

Alloy 601 Plate Flanges

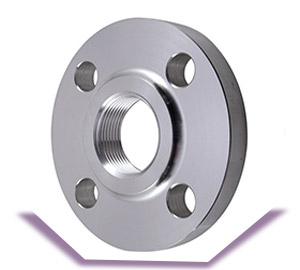

Nickel Alloy 601 Threaded Flanges

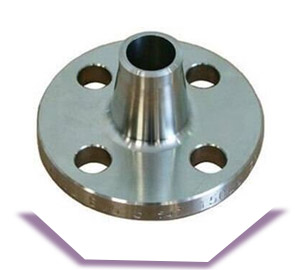

Nickel 601 Reducing Flange
