ASTM A234 WPB Pipe Bends

Size In Ready Stock :

• Buttweld : 1/2" To 36"
• Welded : 24" To 96"
• Seamless : 1/2" To 24"
• Contact ASTM A234 WPB pipe bends manufacturer in India for above 120

Available Machines :

• Beveling Machine
• Conventional Machine
• CNC

Surface Treatment :

• Nature Color
• Varnished
• Transparent oil

Wall Thickness :

• SCH 20 & 40
• SCH : 80 To 120
• SCH : 160 To 180

Manufacturing Standard :

• ASME B16.49
• ASME B16.9
• ASME B31.4
• ASME B31.8
• MSS SP-97

Packaging Method :

• Wooden Cases
• Wooden Pallet
• Carton Box

Melting Temperature :

• Low carbon = 1410°C
• High carbon = 1425-1540°C

Hardness :

• Rockwell = 60 to 99 HRC

Density :

• 7.84 g/cm3

Welding :

• TIG welding
• GMAW welding
• FCAW welding

Forming :

• Hot formed
• Cold drawn

Surface :

• Nature Color

Bending Method :

• Roll bending
• Heating bending
• Press bending
• Mandrel bending
• Compression bending
• Liquid filling bending
• Press bending

Raw Material :

• Bars
• Fusion-welded pipe
• Seamless pipe

Method :

• Weld (Welded)
• Fabricated
• ERW
• SMLS (Seamless)
• BW (Buttweld)

Sour Service :

• NACE MR0103
• NACE TM-0284
• NACE MR0175

Thickness Tolerance :

• +/-12.5%
• Custom

Marking Formula :

• Standard & Heat No.
• Manufacturers Name
• Size & Schedule
• Grade & Material

Life :

• Stainless Steel = 20 To 25 Years

Manufacturing Process :

• Machined
• Heat Treated
• Forged

Connection :

• Welding

Heat Treatment :

• Solution annealing
• Normalizing and tempering
• Normalizing
• Quenching and tempering

Test Certificates :

• EN 10204 3.1
• EN 10204 3.2

Ends :

• Bevelled
• Plain Bevel
• Compound Bevel

Application :

• Petrochemicals
• Gas fittings
• Water Treatment
• Power Generation
• Oil and Gas
• Hydraulic system

Manufacturing Method :

• Butt Weld
• Welding
• Forged
• Casting
• Pushing

Testing Requirements :

• Mechanical test
• Beveling machine test
• Hardness test
• Hydro test
• Thickness gauge
• Corrosion test

Bend Radius :

• 1.5D
• 2.5D
• 3D
• 5D
• 6D
• 8D
• 10D
• 22D

Pipe Bend Angle :

• 15 Deg
• 22.5 Deg
• 30 Deg
• 45 Deg
• 60 Deg
• 90 Deg
• 135 Deg

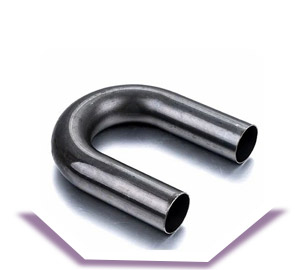

• 180 Deg

Weight Calculation :

• R = Radius
• θ = Angle
• L = Length
• D = Diameter
• T = Wall Thickness

Logistics :

• By Sea
• By Air
• South Africa = 25-30 day
• Saudi Arabia = 7 days
• Qatar = 7 days
• UAE = 5 day
• Malaysia = 10 day
• Philippines = 14 day

Maximum Size :

• DN2000
• 120 Inch

Value Added Services :

• Beveling End
• Polishing
• Cutting
• Minor Fabrication
• Threading

Carbon [C] :

• ≤0.30%

Manganese [Mn] :

• 0.29-1.06%

Phosphorus [P] :

• ≤0.050%

Sulfur [S] :

• ≤0.058%

Silicon [Si] :

• ≥0.10%

Chromium [Cr] :

• ≤0.40%

Molybdenum [Mo] :

• ≤0.15%

Nickel [Ni] :

• ≤0.40%

Copper [Cu] :

• ≤0.40%

Tensile Strength :

• 60 KSI (minimum)

Yield Strength, :

• 35 KSI (minimum)

Elongation %, minimum:

• 22 (Longitudinal)
