What Is Stainless Steel 304L Bend?

A Stainless steel 304L bend can range from sch10s through sch160 and up to XXS. There are special types of SS 304L bend that have 45 degrees and 90 degree angle, short radius and long radius. The ASTM A403 WP304 90 deg bend is the one that is generally used. A403 WP304 long radius bend with low carbon content. The ASTM A403 WP304L fittings showcase outstanding mechanical properties. These fittings possess a minimum tensile strength of 485mpa with minimum proof stress of 170mpa. Why to buy from stockist? Buy directly through stainless steel 304L bend manufacturer in India and save cost.

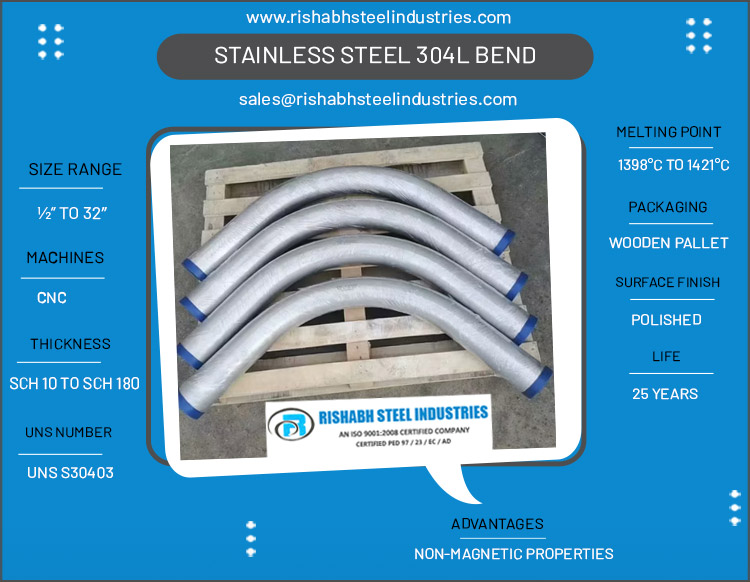

Stainless Steel 304L Bend

Table of Content

Purchase Polished ASTM A403 WP304L Return Bends at the Cheapest Price

SS 304L Mandrel Bend Price List

  • Type: 90 Deg Bend

  • Finish : Brushed

  • SCH : 40S

  • Wall Thickness : 16ga

Size Price In US (Dollar) Per Piece Price In Singapore Dollar (Singapore) Per Piece Price In UAE (AED) Per Piece
1" US $4.25 SGD 5.73 AED 15.61
1 1/2" US $12.93 SGD 17.43 AED 47.49
2" US $16.83 SGD 22.69 AED 61.82
2 1/2" US $19.39 SGD 26.14 AED 71.22
3" US $23.72 SGD 31.97 AED 87.12
4" US $29.12 SGD 39.25 AED 106.96
6" US $36.26 SGD 48.88 AED 133.18
8" US $46.92 SGD 63.25 AED 46.92

SS 304 90 Degree Bend Manufactured by Rishabh Steel With Size and Weight Chart

A403 Grade WP304L 90 Deg Bend Weight Chart

Nominal Pipe Size Schedule 40 Weight in KG Schedule 80 Weight in KG
1/2" 0.20 0.23
3/4" 0.25 0.29
1" 0.32 0.36
1 1/4" 0.39 0.44
1 1/2" 0.46 0.53
2" 0.64 0.79
2 1/2" 0.96 1.22
3" 1.13 1.51
4" 1.70 2.20
6" 2.60 3.70
8" 4.20 6.10
10" 5.20 7.90
12" 7.00 10.00

Supplier of UNS S30403 Short Radius Bend with DN15 TO DN1200 Size in Mumbai, Refer Manufacturing Method

Manufacturing Method of ASTM A403 WP304L Pipe Bend

  • Seamless

  • Welded

  • Fabricated

  • ERW

SS 304L Bend Specification

Most Selling Size :

Most Selling Size :

  • Buttweld : 1/2" To 36"
  • Welded : 24" To 96"
  • Seamless : 1/2" To 24"
  • Contact stainless steel 304L bend manufacturer in India for above 120
Available Machines :

Available Machines :

  • Beveling Machine
  • Conventional Machine
  • CNC
Surface Treatment :

Surface Treatment :

  • Hot galvanized
  • Rust proof black oil
  • Transparent oil
Common Thickness :

Common Thickness :

  • SCH 20 & 40
  • SCH : 80 To 120
  • SCH : 160 To 180
Manufacturing Standard :

Manufacturing Standard :

  • ASME B16.49
  • ASME B16.9
  • ASME B31.4
  • ASME B31.8
  • MSS SP-97
Types Of Packaging :

Types Of Packaging :

  • Wooden Cases
  • Wooden Pallet
  • Carton Box
Melting Point :

Melting Point :

  • 1398°C To 1421°C
Hardness :

Hardness :

  • 201 Brinell
Density :

Density :

  • 8,000 Kg/m
Welding Method :

Welding Method :

  • TIG welding
  • GMAW welding
  • FCAW welding
Forming :

Forming :

  • Hot formed
  • Cold drawn
Finish :

Finish :

  • Polished
Bending Technique :

Bending Technique :

  • Press bending
  • Mandrel bending
  • Press bending
  • Roll bending
  • Heating bending
  • Compression bending
  • Liquid filling bending
Raw Material :

Raw Material :

  • Fusion-welded pipe
  • Seamless pipe
  • Bars
Method :

Method :

  • Weld (Welded)
  • Fabricated
  • SMLS (Seamless)
  • BW (Buttweld)
  • ERW
Sour Service :

Sour Service :

  • NACE MR0103
  • NACE TM-0284
  • NACE MR0175
Thickness Tolerance :

Thickness Tolerance :

  • +/-12.5%
  • Custom
Marking Details :

Marking Details :

  • Grade & Material
  • Standard & Heat No.
  • Size & Schedule
  • Manufacturers Name
Life :

Life :

  • Stainless Steel = 20 To 25 Years
Manufacturing Process :

Manufacturing Process :

  • Machined
  • Heat Treated
  • Forged
End Connection :

End Connection :

  • Welding
Heat Treatment :

Heat Treatment :

  • Solution annealing
  • Normalizing and tempering
  • Normalizing
  • Quenching and tempering
EN Certificates :

EN Certificates :

  • EN 10204 3.2
  • EN 10204 3.1
Ends :

Ends :

  • Plain Bevel
  • Compound Bevel
  • Bevelled
Uses :

Uses :

  • Hydraulic system
  • Petrochemicals
  • Gas fittings
  • Water Treatment
  • Power Generation
  • Oil and Gas
Manufacturing Method :

Manufacturing Method :

  • Butt Weld
  • Welding
  • Forged
  • Casting
  • Pushing
Inspection Plan :

Inspection Plan :

  • Mechanical test
  • Beveling machine test
  • Hardness test
  • Hydro test
  • Thickness gauge
  • Corrosion test
Radius Of Bend :

Radius Of Bend :

  • 1.5D
  • 2.5D
  • 3D
  • 5D
  • 6D
  • 8D
  • 10D
  • 22D
Angle Of Pipe Bend :

Angle Of Pipe Bend :

  • 15 Degree
  • 22.5 Degree
  • 30 Degree
  • 45 Degree
  • 60 Degree
  • 90 Degree
  • 135 Degree
  • 180 Degree
Weight Calculation :

Weight Calculation :

  • R = Radius
  • θ = Angle
  • L = Length
  • D = Diameter
  • T = Wall Thickness
Logistics :

Logistics :

  • By Sea
  • By Air
  • Kuwait = 10 day
  • Singapore = 8 day
  • Azerbaijan = 30-45 day
  • South Africa = 25-30 day
  • Saudi Arabia = 7 days
  • Thailand = 7 days
Maximum Size :

Maximum Size :

  • DN2000
  • 120 Inch
Value Added Services :

Value Added Services :

  • Cutting
  • Minor Fabrication
  • Threading
  • Beveling End
  • Polishing
Trusted Source of 304L SS Mandrel Bends Which is Required for Marine Industry, See Service Temperatures

ASTM A403 WP304L Return Bends Applications

  • Chemical Processing Plants

  • Food and Beverage Industry

  • Oil & Gas Industry

  • Power Generation

  • Biotechnology Industries

  • Water Treatment

  • Desalination Plants

  • Marine Applications

304 SS 90 Degree Bend Service Temperatures

  • Intermittent Service (870°C)

  • Continuous Service (925°C)

Also View A403 Grade WP304L Hot Induction Bend Heat Treatment and Tensile Strength

UNS S30403 Short Radius Bend Heat Treatment

  • Annealing Range (1850° To 2050°F)

  • Solution Treatment (1010 To 1120°C)

Tensile Strength of A403 WP304L Bend

Tensile Strength in KSI Tensile Strength in MPa
70-85 KSI 480-585 MPa

304L SS Bends Chemical Composition

Carbon [C] :

Carbon [C] :

  • 0.0 To 0.03%
Manganese [Mn] :

Manganese [Mn] :

  • 0.0 – 2.00%
Phosphorus [P] :

Phosphorus [P] :

  • 0.0 – 0.05%
Silicon [Si] :

Silicon [Si] :

  • 0.0 – 1.00%
Chromium [Cr] :

Chromium [Cr] :

  • 17.50 – 19.50%
Nitrogen [N] :

Nitrogen [N] :

  • 0.0 – 0.11%
Nickel [Ni] :

Nickel [Ni] :

  • 8.00 – 10.50%
Iron:

Iron :

  • Balance
Sulphur (S) :

Sulphur (S) :

  • 0.0 – 0.03%

SA A403 WP304L Welded Bend Equivalent

UNS :

  • UNS S30403

Werkstoff No :

  • 1.4306

JIS (Japan) :

  • SUS304L

BS (England) :

  • BS 304S11

AFNOR (France) :

  • Z2CN18-10 Z3CN18-10

EN (European) :

  • X2CrNi19-11

UNI (Italy) :

  • X2CrNi18-11

SS (Sweden) :

  • SIS 2352

PN (Poland) :

  • 00H18N10

AISI 304L Seamless Bend Yield Strength

Yield Strength in KSI Yield Strength in MPa
25-45 KSI 170-310 MPa

A403 Grade WP304L Hot Induction Bend Mechanical Properties

Electrical Resistivity :

  • 0.72 x10^-6 Ω .m

Modulus of Elasticity :

  • 193 GPa

Thermal Expansion :

  • 17.2 x10^-6 /K

Thermal Conductivity :

  • 16.2 W/m.K

Proof Stress :

  • 175 MPa Minimum

Elongation A50 mm :

  • 45% Minimum

Types of Stainless Steel 304L Bend

Stainless Steel 304L 45 Deg Bend

Stainless Steel 304L 45 Deg Bend

ASTM A403 WP304L 90 Degree Bend

ASTM A403 WP304L 90 Degree Bend

SS 304L 180 Degree Pipe Bend

SS 304L 180 Degree Pipe Bend

AISI 304 Long Radius Bend

AISI 304 Long Radius Bend

304L SS Short Radius Bend

304L SS Short Radius Bend

304L Stainless Steel Piggable Bends

304L Stainless Steel Piggable Bends

UNS S30403 U Bend

UNS S30403 U Bend

WNR 1.4306 Mandrel Bends

WNR 1.4306 Mandrel Bends

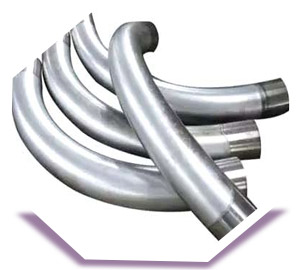

A403 Grade WP304L Hot Induction Bend

A403 Grade WP304L Hot Induction Bend
