What Is Stainless Steel 316L Bend?
Most of the case such stainless steel 316L bend are fabricated using the welded or seamless pipe. These SS 316L bend are available in good quality which signifantly reduces the need for welding and avoid used of buttweld pipe fittings. These SS 316L seamless pipe bend are nickel, chromium, and molybdenum grades that work well in harsh conditions. The 316L welded pipe bend play a critical role in influencing the characteristics of the fluid and gaseous flow in the system. A ASTM A403 WP316L pipe bend is used change the direction of the piping. 316L stainless steel bend can range from nominal sizes ½" to 60" and is used in fluid flow systems to clean up the system.
Table of Content
- Stainless Steel 316L Bend Specification
- SS 316L Long Radius Bend Price List
- A403 WP316L Short Radius Bend Price List
- Advantages of ASTM A403 WP316L Pipe Bend
- SS 316L Bend Raw Material
- UNS S31603 Seamless Pipe Bend Chemical Composition
- AISI 316L Short Radius Bend Weight Chart
- Melting Point for 316L SS Hot Induction Bend
- A403 Grade WP316L Welded Bend Mechanical Properties
- Density for 316L Stainless Steel Bend
- Equivalent of SS 316L Pipe Bend
- WNR 1.4404 Steel Pipe Physical Properties
- Types of Stainless Steel 316L Bend
ASTM A403 WP316L Return Bends Specification as per ASME B16.25
Available Sizes :
- Seamless : 1/2" To 24"
- Buttweld : 1/2" To 36"
- Welded : 24" To 96"
- Contact stainless steel 316L bend manufacturer in India for above 120
Machines :
- Beveling Machine
- CNC
- Conventional Machine
Surface Treatment :
- Transparent oil
- Hot galvanized
- Rust proof black oil
Thickness :
- SCH 20 & 40
- SCH : 80 To 120
- SCH : 160 To 180
Standard :
- MSS SP-97
- ASME B16.49
- ASME B16.9
- ASME B31.4
- ASME B31.8
Packaging :
- Carton Box
- Wooden Cases
- Wooden Pallet
Melting Point :
- 1400°C
Hardness :
- Brinell = 149
Density :
- 8.0 g/cm³
Welding Way :
- FCAW welding
- TIG welding
- GMAW welding
Types Of Forming :
- Hot formed
- Cold drawn
Surface :
- Polished
- Mill Finished
Types Of Bending :
- Press bending
- Compression bending
- Liquid filling bending
- Press bending
- Roll bending
- Heating bending
- Mandrel bending
Raw Material :
- Bars
- Seamless pipe
Method :
- ERW
- Weld (Welded)
- Fabricated
- SMLS (Seamless)
- BW (Buttweld)
Sour Service :
- NACE MR0175
- NACE MR0103
- NACE TM-0284
Thickness Tolerance :
- +/-12.5%
- Custom
Marking :
- Grade & Material
- Standard & Heat No.
- Size & Schedule
- Manufacturers Name
Life :
- Stainless Steel = 20 To 25 Years
Process :
- Forged
- Machined
- Heat Treated
Connection :
- Welding
Heat Treatment :
- Quenching and tempering
- Solution annealing
- Normalizing and tempering
- Normalizing
Test Certificates :
- EN 10204 3.2
- EN 10204 3.1
Ends :
- Compound Bevel
- Bevelled
- Plain Bevel
Uses :
- Power Generation
- Oil and Gas
- Hydraulic system
- Petrochemicals
- Gas fittings
- Water Treatment
Manufacturing Method :
- Forged
- Casting
- Pushing
- Butt Weld
- Welding
Inspection :
- Corrosion test
- Mechanical test
- Beveling machine test
- Hardness test
- Hydro test
- Thickness gauge
Bend Radius :
- 1.5D
- 2.5D
- 3D
- 5D
- 6D
- 8D
- 10D
- 22D
Pipe Bend Angle :
- 15 Deg
- 22.5 Deg
- 30 Deg
- 45 Deg
- 60 Deg
- 90 Deg
- 135 Deg
- 180 Deg
Weight Calculation :
- T = Wall Thickness
- R = Radius
- θ = Angle
- L = Length
- D = Diameter
Logistics :
- By Sea
- By Air
- Uk = 30 day
- USA = 40-60 day
- Qatar = 7 day
- Malaysia = 10 day
- Philippines = 14 days
- UAE = 5 days
Maximum Size :
- DN2000
- 120 Inch
Value Added Services :
- Polishing
- Cutting
- Minor Fabrication
- Threading
- Beveling End
SS 316L Long Radius Bend Manufacturer in India, Check Price List
-
Type: 90 Deg Bend
-
Finish : Polished
-
SCH : 40S
-
Manufacturing : Forged
| Size | Price In US (Dollar) Per Piece | Price In Bahraini Dinar (Bahrain) Per Piece | Price In UAE (AED) Per Piece |
|---|---|---|---|
| 1/2" | US $5.09 | BHD 1.92 | AED 18.70 |
| 3/4" | US $7.50 | BHD 2.82 | AED 27.55 |
| 1" | US $10.92 | BHD 4.11 | AED 40.11 |
| 1.25" | US $15.93 | BHD 5.99 | AED 58.51 |
| 1.5" | US $18.04 | BHD 6.79 | AED 66.26 |
| 2" | US $24.93 | BHD 9.38 | AED 91.57 |
| 2.5" | US $29.94 | BHD 11.27 | AED 109.97 |
| 3" | US $34.39 | BHD 12.94 | AED 126.31 |
| 4" | US $39.30 | BHD 14.79 | AED 144.35 |
-
Type: 45 Deg Bend
-
Finish : Polished
-
SCH : 20S
-
Manufacturing : Forged
| Size | Price In US (Dollar) Per Piece | Price In Australian Dollar (Australia) Per Piece | Price In British Pound (UK) Per Piece |
|---|---|---|---|
| 1" | US $3.88 | AUD 6.11 | GBP 3.07 |
| 1.5" | US $6.56 | AUD 10.33 | GBP 5.20 |
| 2" | US $7.86 | AUD 12.37 | GBP 6.23 |
| 2.5" | US $11.94 | AUD 18.79 | GBP 9.46 |
| 3" | US $16.20 | AUD 25.50 | GBP 12.83 |
| 4" | US $33.84 | AUD 53.27 | GBP 26.81 |
| 6" | US $41.30 | AUD 65.01 | GBP 32.72 |
| 8" | US $52.13 | AUD 82.06 | GBP 41.30 |

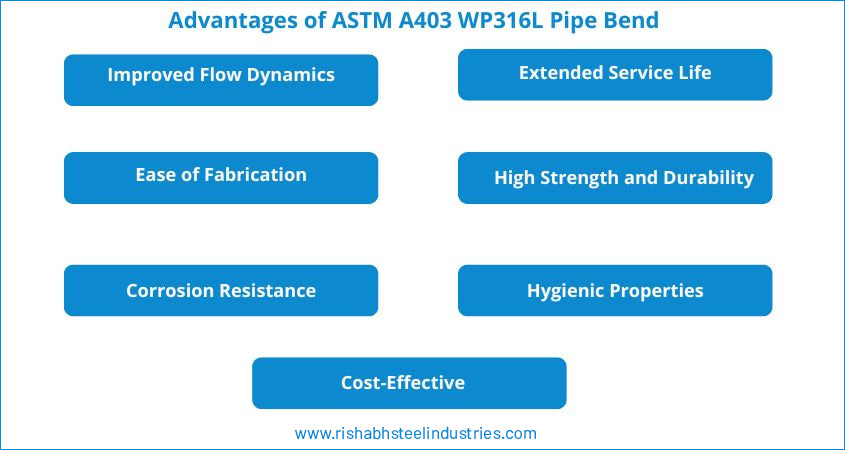

Check Advantages of UNS S31603 Seamless Pipe Bend and AISI 316L Hot Induction Bend Raw Material List
-
Round Bar
-
Seamless Pipe
-
Fusion Welded Pipe
-
ERW Pipe
Contact Us If You Are looking for A403 Grade WP316L 90 Degree Bend Supplier in Mumbai, See Chemical Composition
![Carbon [C] :](imginfo/carbon.jpg "Carbon [C] :")
Carbon [C] :
- 0.030%
![Manganese [Mn] :](imginfo/manganese.jpg "Manganese [Mn] :")
Manganese [Mn] :
- 2.00%
![Phosphorus [P] :](imginfo/phosphorus.jpg "Phosphorus [P] :")
Phosphorus [P] :
- 0.045%
![Silicon [Si] :](imginfo/silicon.jpg "Silicon [Si] :")
Silicon [Si] :
- 0.75%
![Chromium [Cr] :](imginfo/chromium.jpg "Chromium [Cr] :")
Chromium [Cr] :
- 16.0 (minimum) To 18.0% (maximum)
![Nickel [Ni] :](imginfo/nickel.jpg "Nickel [Ni] :")
Nickel [Ni] :
- 10.0 To 14.0
Iron :
- Balance
Sulphur (S) :
- 0.03%
View 316L SS Short Radius Bend Weight Chart, and Melting Point for WNR 1.4404 Mandrel Bends
| Size | Weight (KG) |
|---|---|
| 1/2" | 0.15 |
| 3/4" | 0.30 |
| 1" | 0.45 |
| 1 1/2" | 1.05 |
| 2" | 1.75 |
| 3" | 4.50 |
| 4" | 8.20 |
| 6" | 18.70 |
| 8" | 35.30 |
| 10" | 62.50 |
| 12" | 95.00 |
-
1399°C
-
2550°F
Hardness :
- Brinell (HB) = 217
Low Temperature Range :
- -196°C
High Temperature Range :
- Up to 870°C
Corrosion Resistance :
- 60°C
Proof Stress :
- 200 Min MPa
Elongation :
- 40%
-
Density = 8000 kg/m3
UNS :
- UNS S31603
Werkstoff No :
- 1.4404
JIS (Japan) :
- SUS 316L
BS (England) :
- 316S11 and 316S13
AFNOR (France) :
- Z3CND17‐11‐02
EN (European) :
- X2CrNiMo18-14-3
GOST (Russia) :
- 03Ch17N14M3
Thermal Conductivity :
- 16.3 W/m.K
Thermal Expansion :
- 15.9 x10^-6 /K
Modulus of Elasticity :
- 193 GPa
Electrical Resistivity :
- 0.74 x10^-6 Ω .m
Thermal Conductivity :
- 16.3 W/m.K
Stainless Steel 316L 45 Deg Bend
ASTM A403 WP316L 90 Degree Bend
SS 316L 180 Degree Pipe Bend
AISI 316L Long Radius Bend
316L SS Short Radius Bend
316L Stainless Steel Piggable Bends
UNS S31603 U Bend
WNR 1.4404 Mandrel Bends
A403 Grade WP316L Hot Induction Bend
